3NH spectral color difference treasure CR8 (professional version) single diameter φ 8mm fixed focus

SE
Using grating spectroscopy technology, imported whiteboard, Repeatability Delta E * ab can be easily controlled within 0.04. Full-band equalized LED Light source. Can intuitively display reflectance (user specifies 3 specific wavelength reflectance), sample chromatic value, color difference value/graph.
$817.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

3NH CR8 Spectroscopic color difference treasureSPEC

3NH CR8 Spectroscopic color difference treasureDetails

3NH CR8 Spectroscopic color difference treasurePacking list

SKU
NB036935
Lighting method
D/8 (diffuse illumination, 8 ° direction reception) SCI measurement conforms to standard CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Integrating sphere size
Φ40mm
Lighting source
Light spectrum LED Light source
spectroscopic mode
Plane grating spectroscopy
Sensor
Silicon photodiode array (dual row 32 groups)
Wavelength Range
400~700nm
wavelength interval
10nm
Bandwidth
10nm
Measurement range
L: 0~120 reflectance: The instrument can test the reflectance at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), and the APP can realize full-band wavelength display
Measurement caliber
Single diameter: Should 8mm (optional Should 4mm)
Focus method
fixed focus
Light-containing method
SCI
Color Space
CIE LAB,XYZ,Yxy,LCh
Color difference formula
ΔE*ab,ΔE*00
Other chroma metrics
A variety of chroma indicators are realized through the APP
Viewing Angle
CIE 10°
Available Light Sources
D65,A,F2(CWF)
display mode
Reflectance (user-specified reflectance at 3 specific wavelengths), sample chromatic value, color difference value/graph, pass/fail result, Color simulation, Color bias
Display Accuracy
0.01
Measurement time
About 1.5s
Repeatability
Chromatic value: MAV/SCI, Delta E * ab within 0.04 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
Inter-instrument Agreement
ΔE*ab<0.35(MAV/SCI)
Measurement mode
Single measurement, average measurement (2~ 99 times)
positioning method
Stabilizer positioning
size
81*71*214mm
Weight
Approx. 460g
Battery life
Lithium battery, 6000 cycles in 8 hours
Lighting source life
More than 3 million measurements in 5 years
Display
TFT true color 3.5inch, capacitive touch screen
Interface
USB, Bluetooth ® 5.0
store data
500 master standards, 10,000 samples, APP Mass storage
Operating language
Simplified Chinese, English, Traditional Chinese
Operating environment
0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
Storage environment
-20~50 ℃, 0~85% RH (no condensation)
Optional Accessories
USB micro printer, powder test box, Bluetooth micro printer, placement base
CR8
Spectroscopic color difference treasure
Using grating spectroscopy technology, imported whiteboard, Repeatability Delta E * ab can be easily controlled within 0.04. Full-band equalized LED Light source. Can intuitively display reflectance (user specifies 3 specific wavelength reflectance), sample chromatic value, color difference value/graph.
3NH spectral color difference treasure CR8 (professional version) single diameter φ 8mm fixed focus Picture

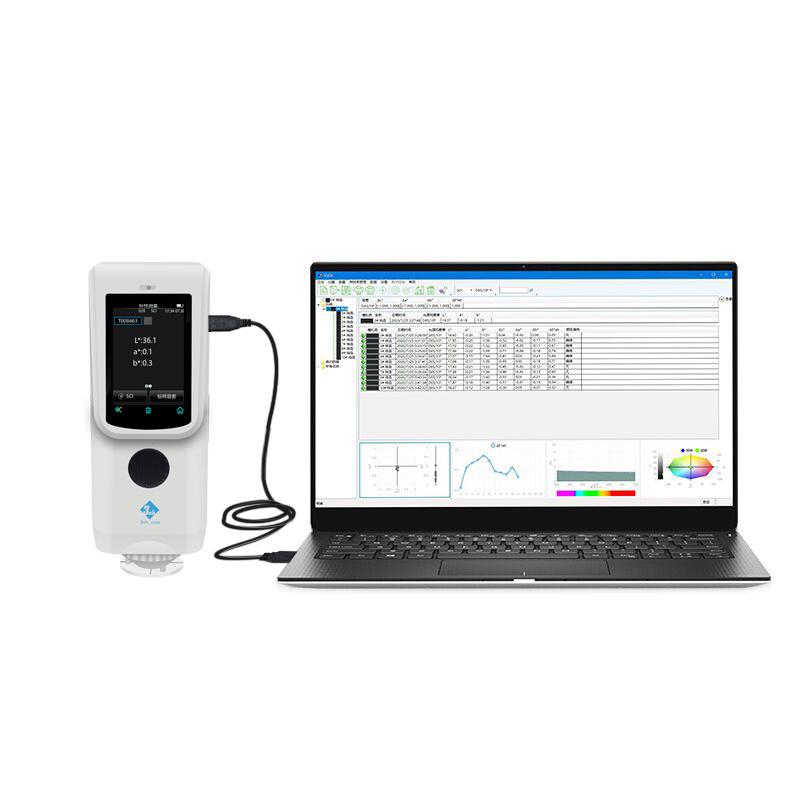

3nh CR8 spectroscopy chromatic aberration treasure details Figure 1

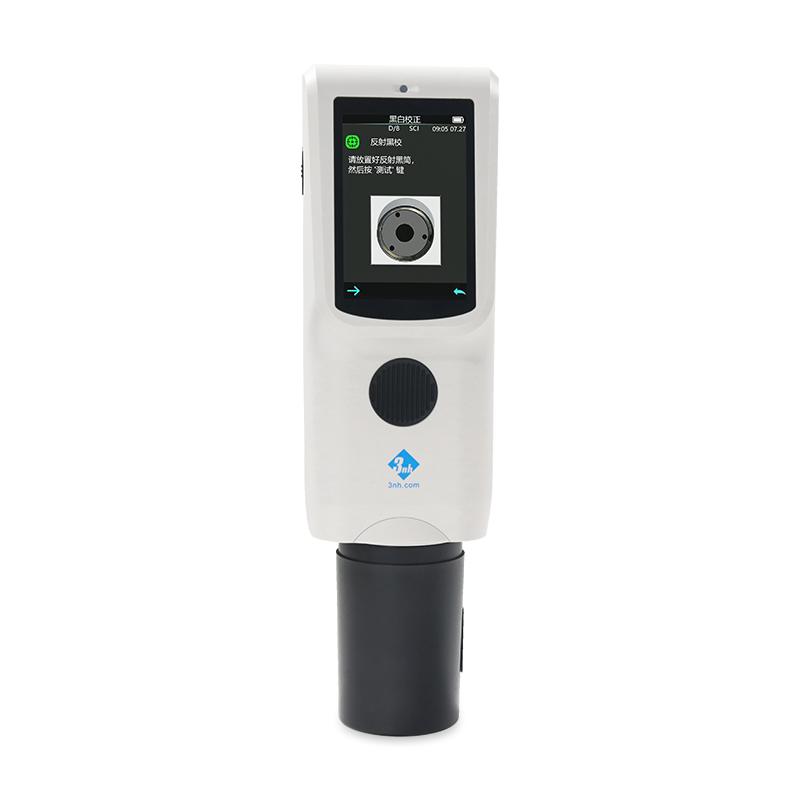

3nh CR8 spectroscopy chromatic aberration treasure details Figure 2

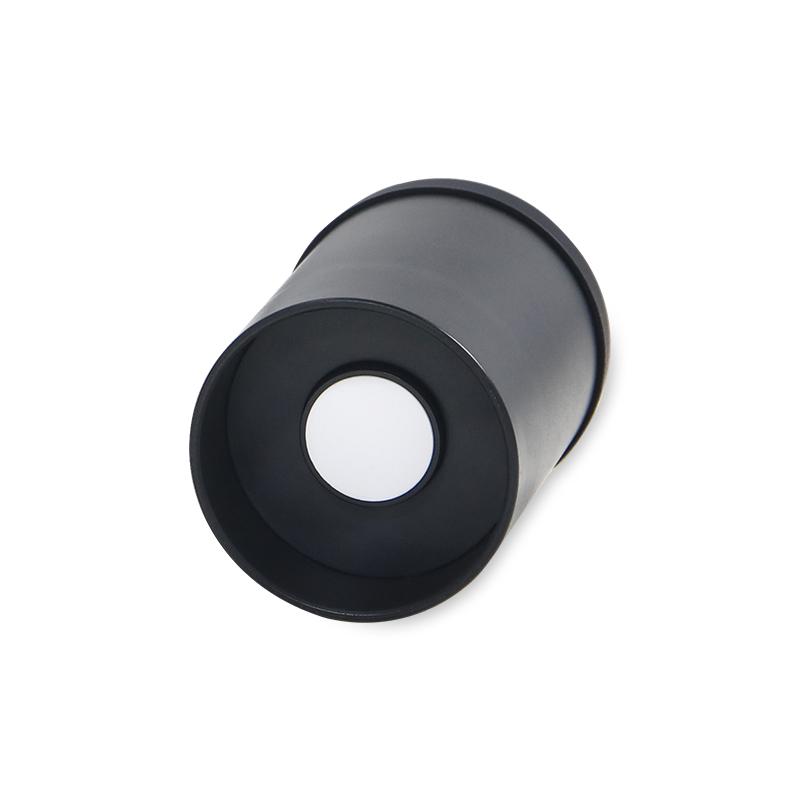

3nh CR8 spectrophoto, color aberration treasure detail figure 3

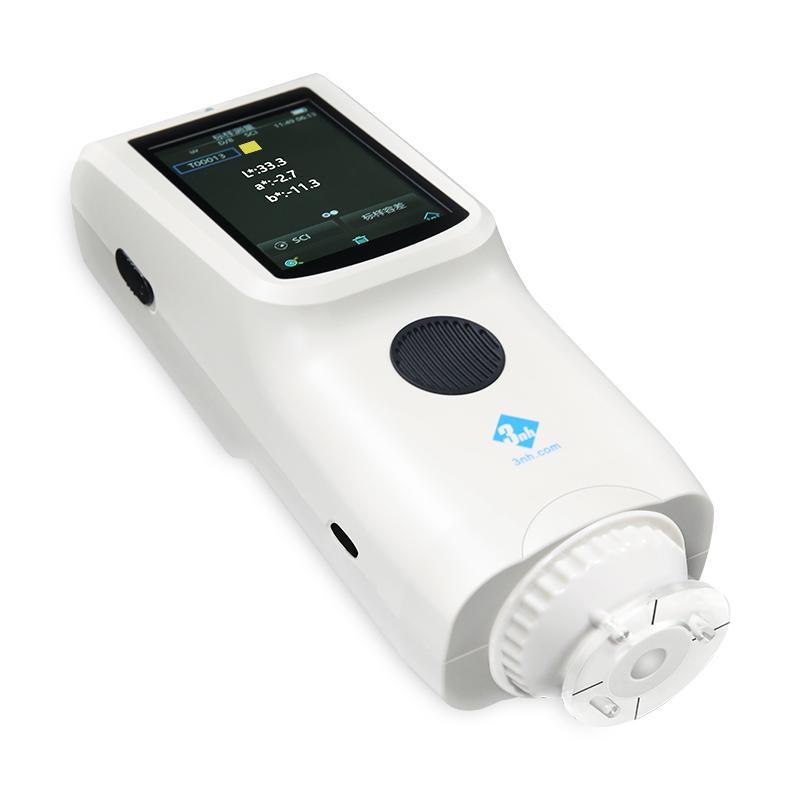

3nh CR8 spectrophototic aberration treasure details Figure 4

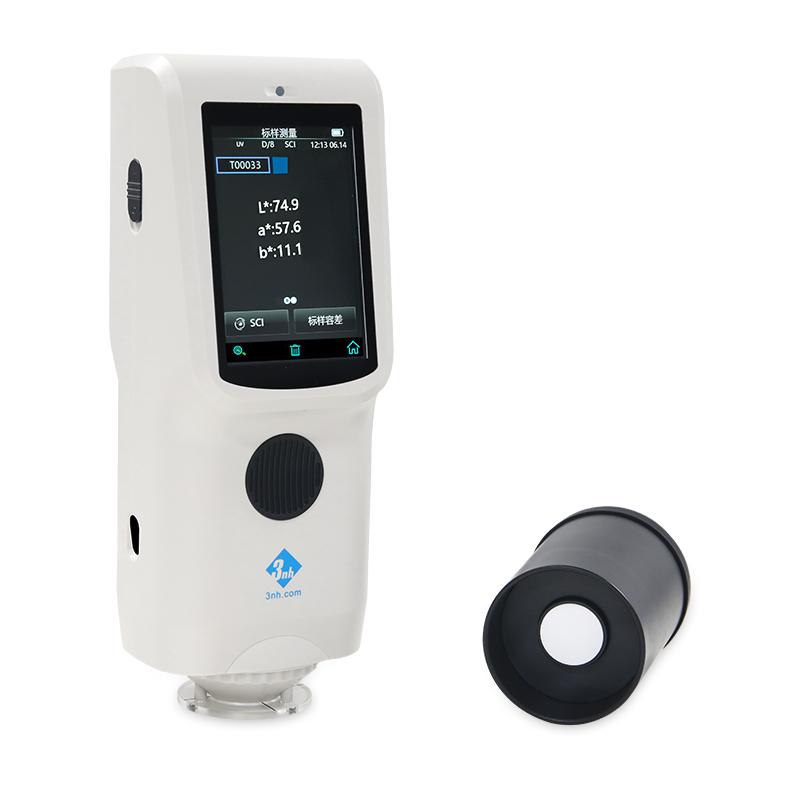

3nh CR8 spectroscopy chromatic aberration treasure details Figure 5

3nh CR8 spectroscopy chromatic aberration treasure details Figure 6

3nh CR8 spectroscopy chromatic aberration treasure details Figure 7

3nh CR8 spectroscopic chromatic aberration treasure details Figure 8

3nh CR8 spectroscopic chromatic aberration treasure details Figure 9

3nh CR8 spectroscopic chromatic aberration treasure details 10

3nh CR8 spectroscopy chromatic aberration treasure details Figure 11

3nh CR8 spectrophototic aberration treasure details 12

3nh CR8 spectroscopy chromatic aberration treasure details 13

3nh CR8 spectrophototic aberration treasure details 14


FAQ
QCoated steel color difference, have memory function and Adjustment can this device achieve?
A Recommend CR8 with Memory and Adjustment
QHello, do you have a color difference meter for measuring medicinal powder?
A The machine is equipped with NH multi-functional test components to measure powder
QAutomatic calibration, right?
A Configure black and white board, you can correct it yourself
QColor syrup color value of the color difference meter, any suggestions?
A This one is equipped with multi-functional components, similar to measuring liquid.
