Linshang LS235 film instrument Fe/NFe 2000μm

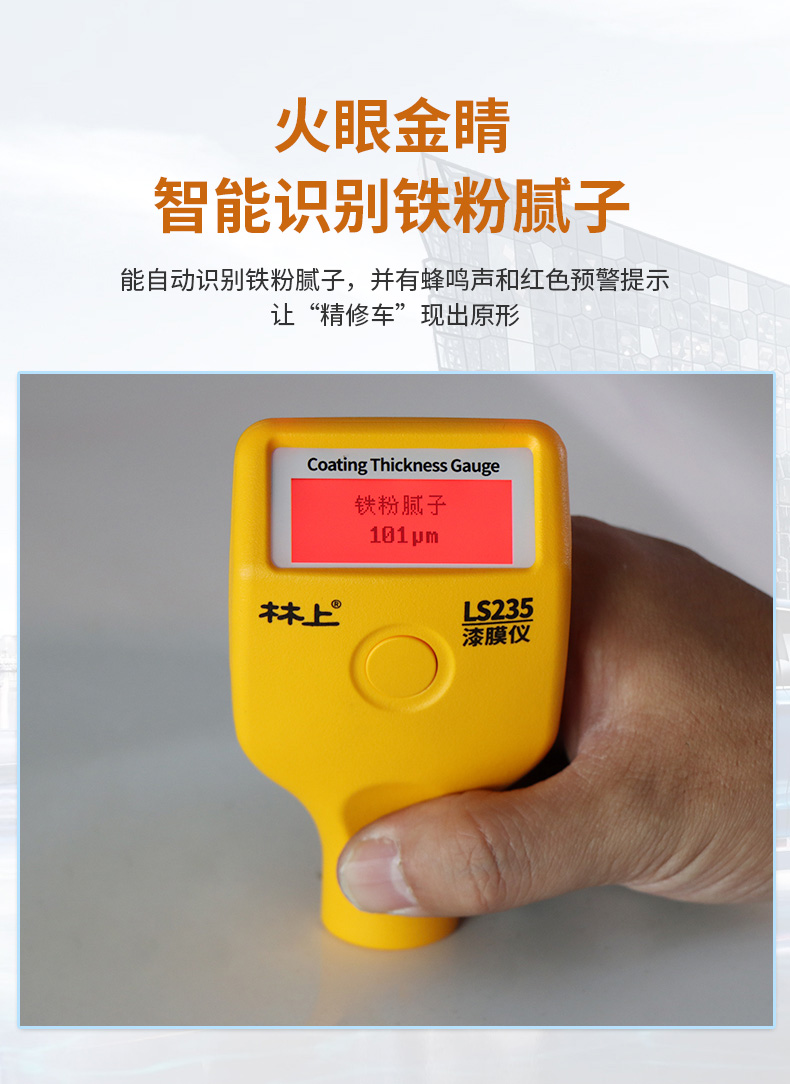

Ruby probe probe, built-in integrated, thickness measurement range 0.0μm-2000μm, minimum measurement area φ = 25mm, can automatically identify iron powder putty, and there are beeps and red warning prompts.
Model：
Certificate
Contact
Details SPEC

LinShang LS235 Film instrumentSPEC

LinShang LS235 Film instrumentDetails

LinShang LS235 Film instrumentPacking list

SKU
NB038346

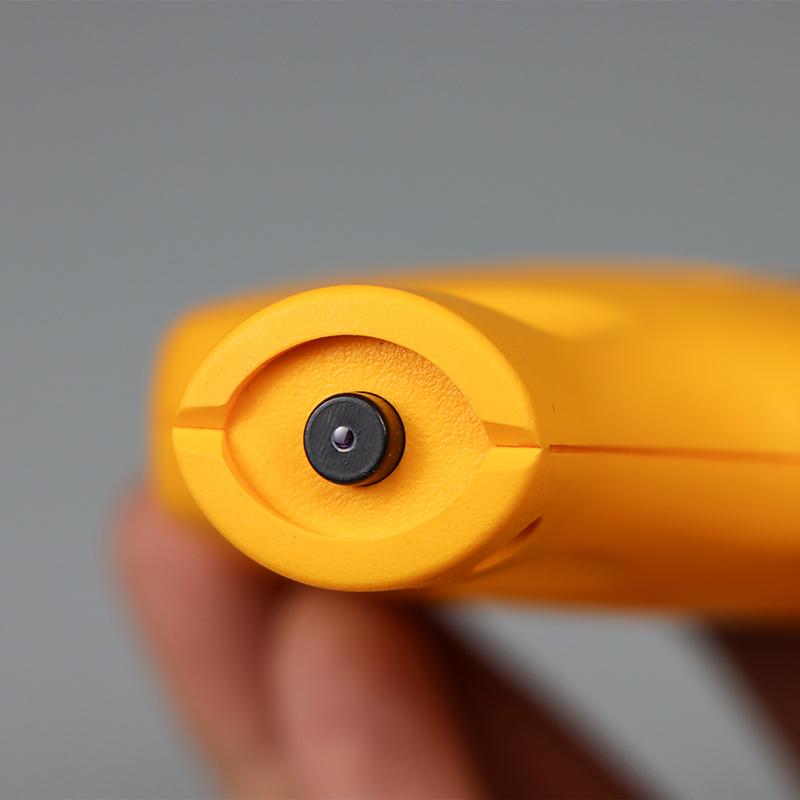

Probe tip
ruby
Probe Type
Built-in integrated
Measuring range
0 ~ 2000m
resolution
0.1μ m | 1μ m | 0.01mm
margin of error
±3%
Unit display
μm / mil

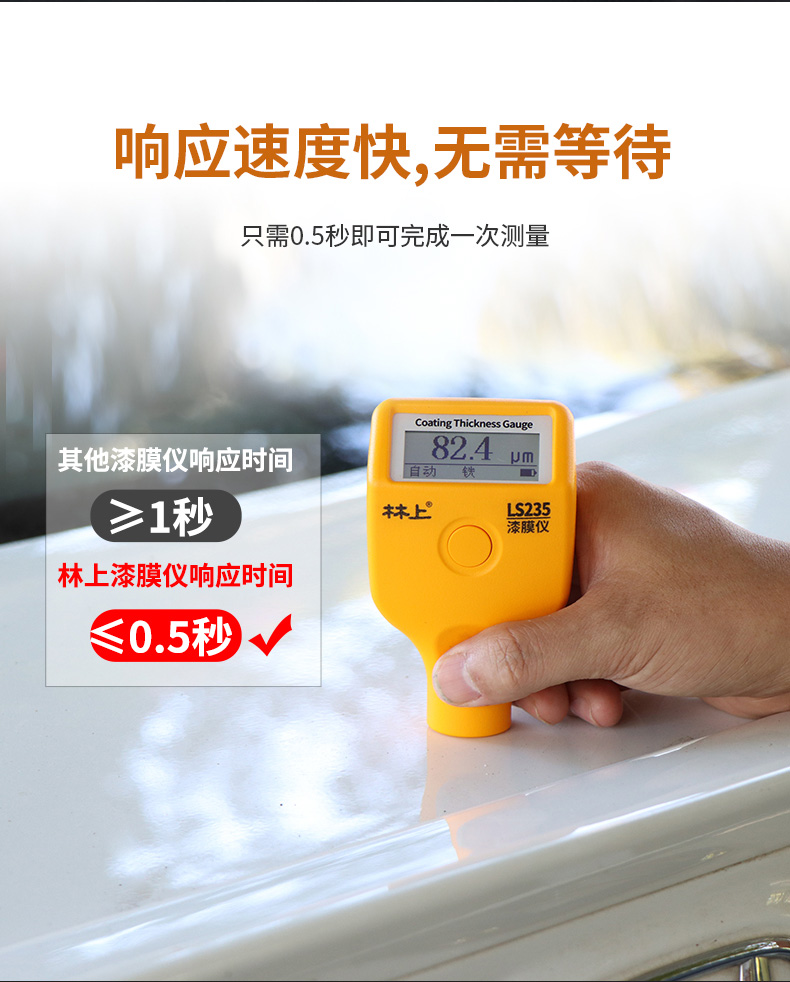

Measurement interval
0.5S
Minimum measurement surface
F25mm
Minimum radius of curvature
Convex: 5mm/Concave: 25mm
Minimum substrate Film thickness
Fe: 0.2mm/NFe: 0.05mm
Power Supply
2 x 1 5V AAA alkalinity batteries
Display screen
128 X 48 dot matrix LCD
Operating Temperature
-20°C~50°C
Storage temperature
-50°C~60°C
Host size
100*60*24mm
LS235
Film instrument
Ruby probe probe, built-in integrated, thickness measurement range 0.0μm-2000μm, minimum measurement area φ = 25mm, can automatically identify iron powder putty, and there are beeps and red warning prompts.

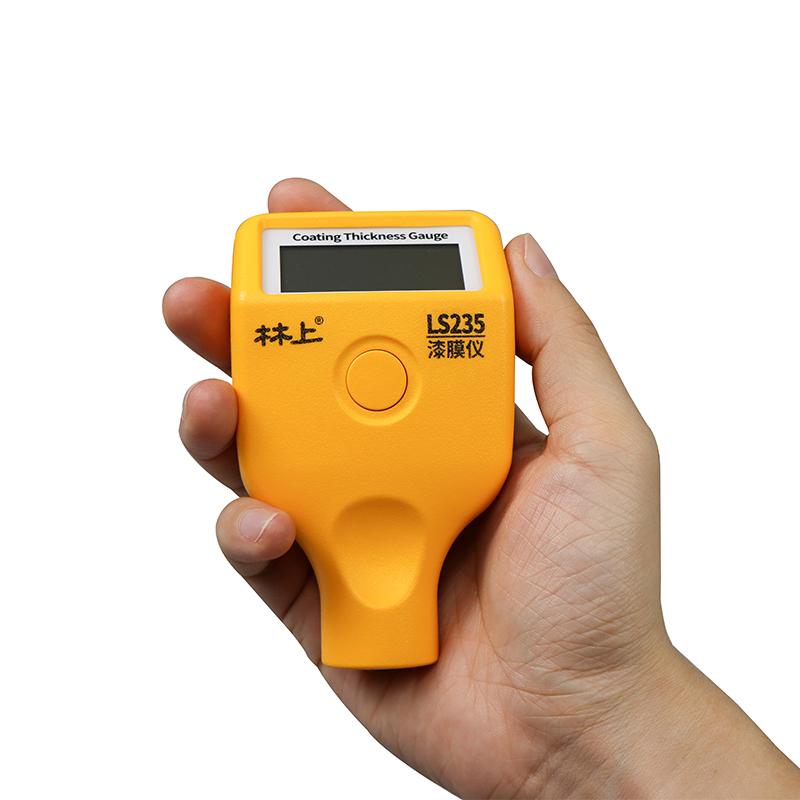

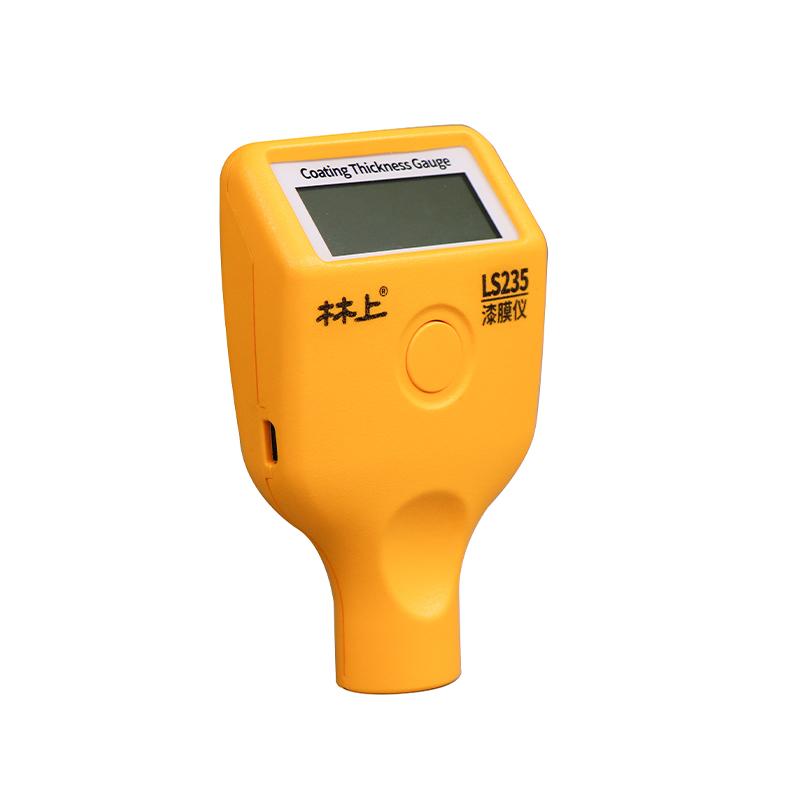

Linshang LS235 film instrument Fe/NFe 2000μm Picture

Linshang LS235 Paint Film Meter Details Figure 1

Linshang LS235 Paint Film Meter Details Figure 2

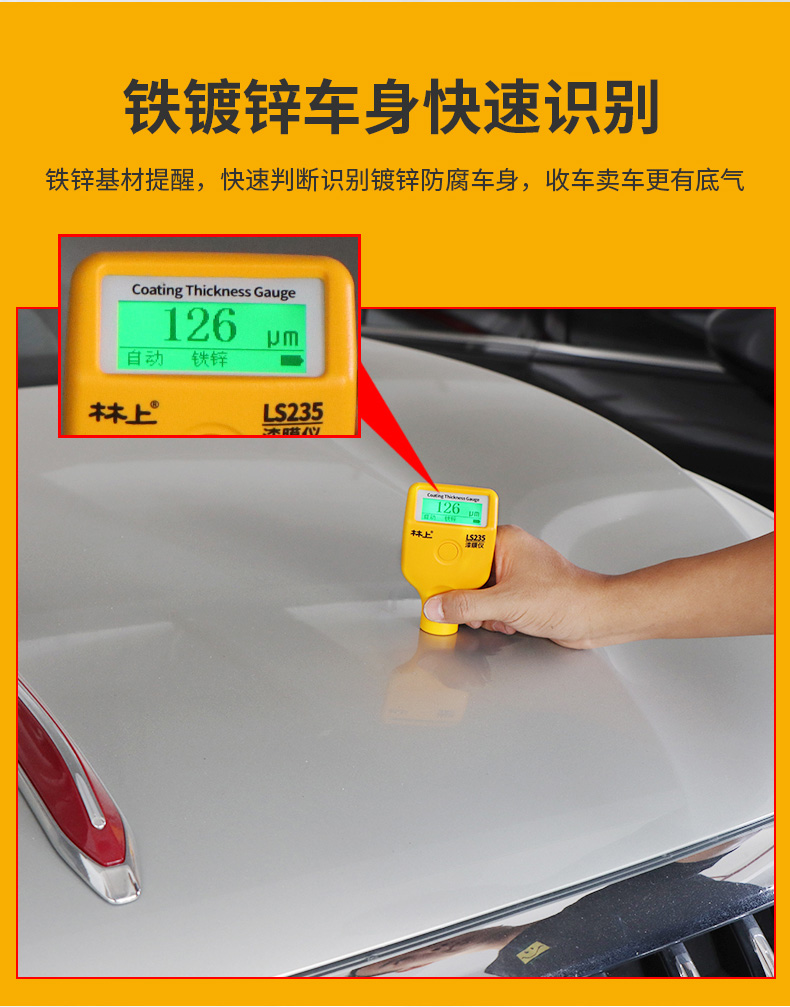

Linshang LS235 Paint Film Meter Details Figure 3

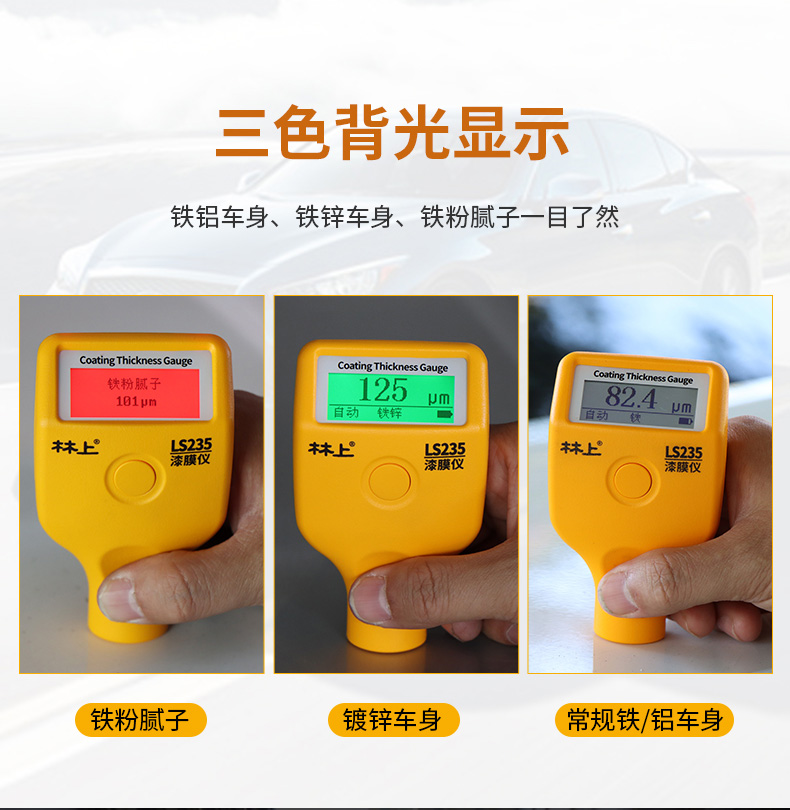

Linshang LS235 Paint Film Meter Details Figure 4

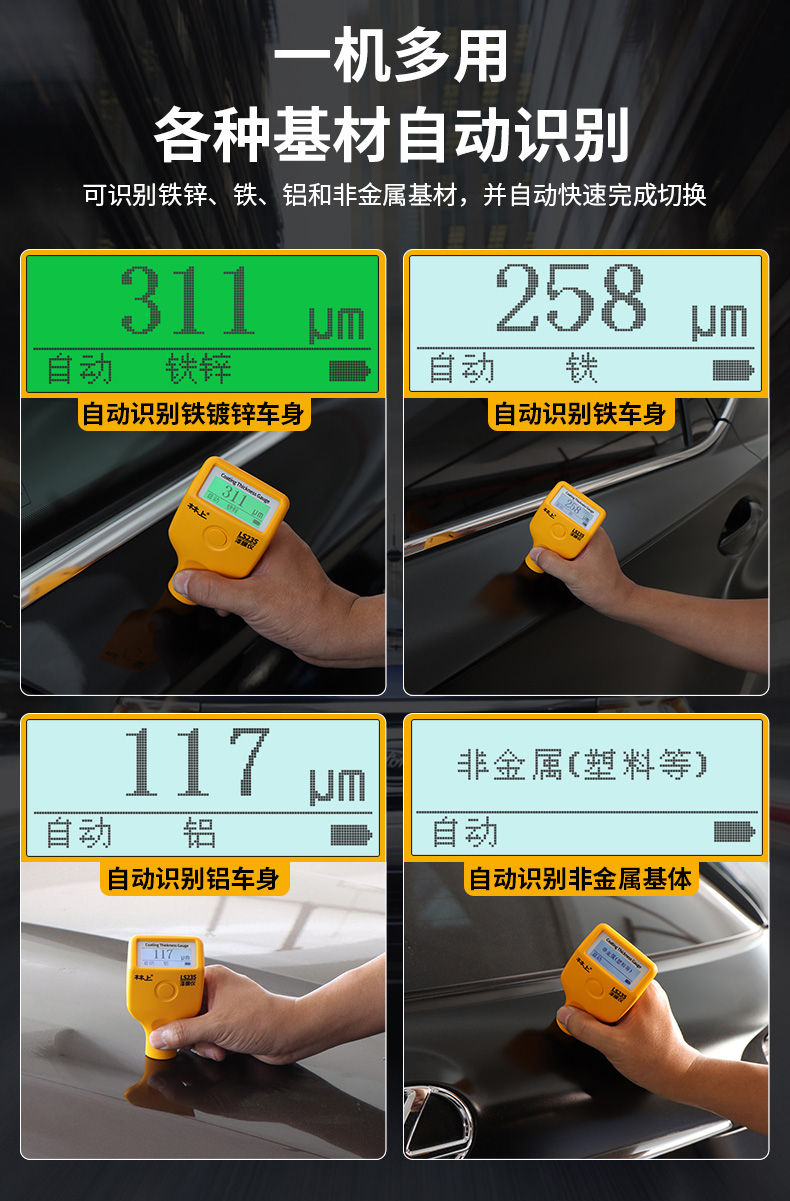

Linshang LS235 Paint Film Meter Details Figure 5

Linshang LS235 Paint Film Meter Details Figure 6

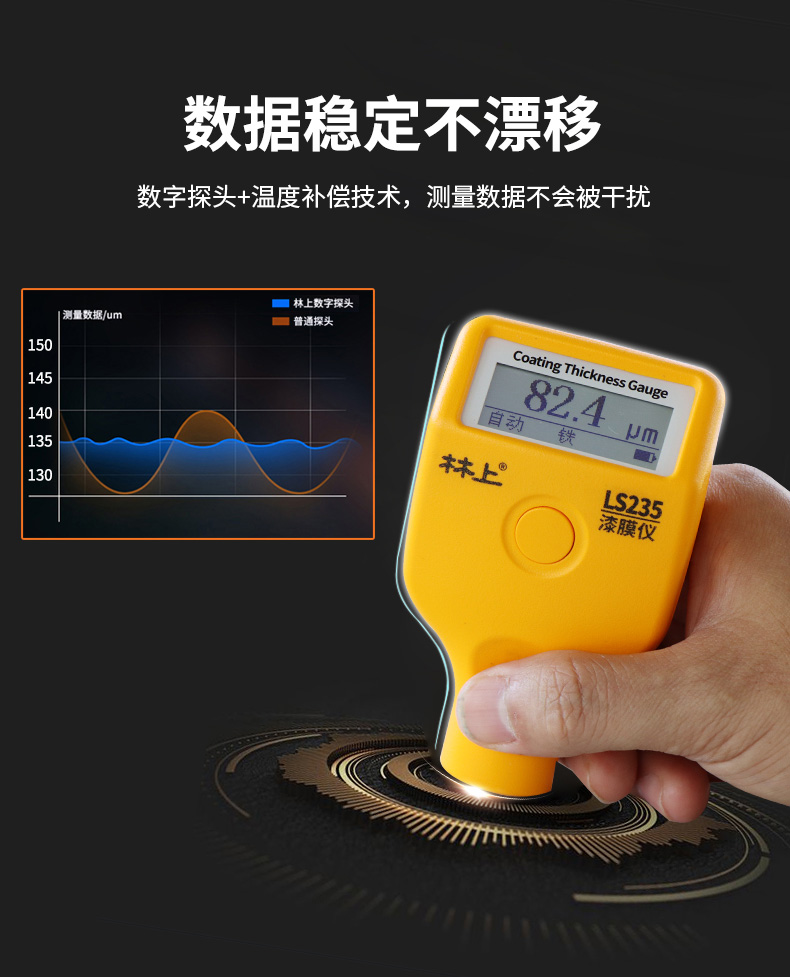

Linshang LS235 paint film meter details Figure 7

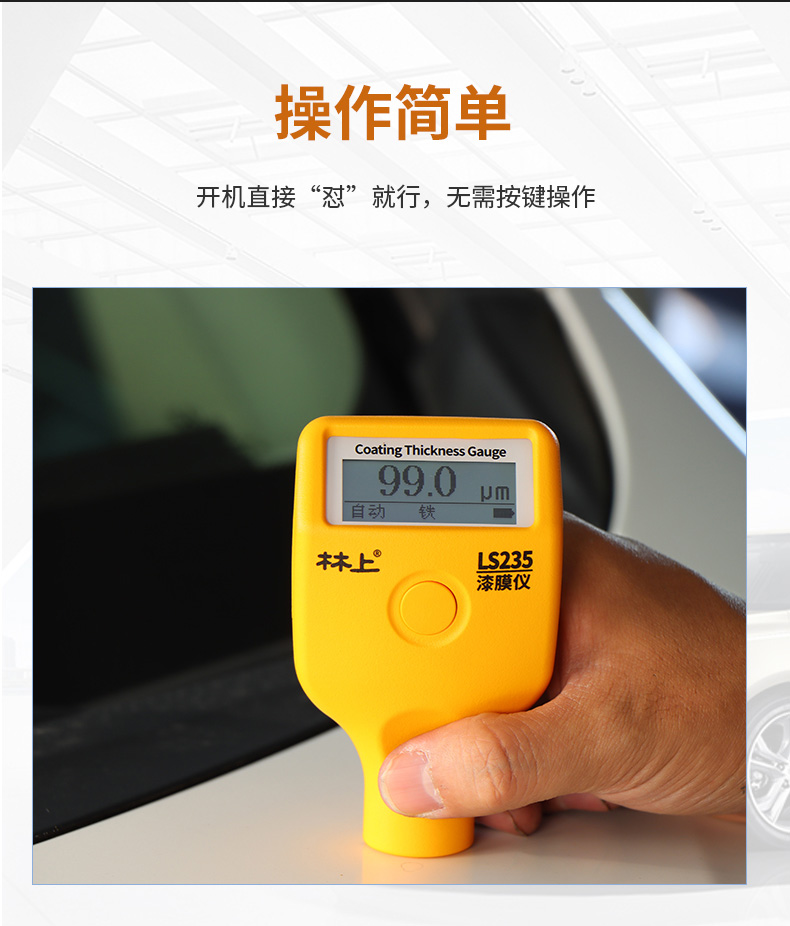

Linshang LS235 paint film meter details Figure 8

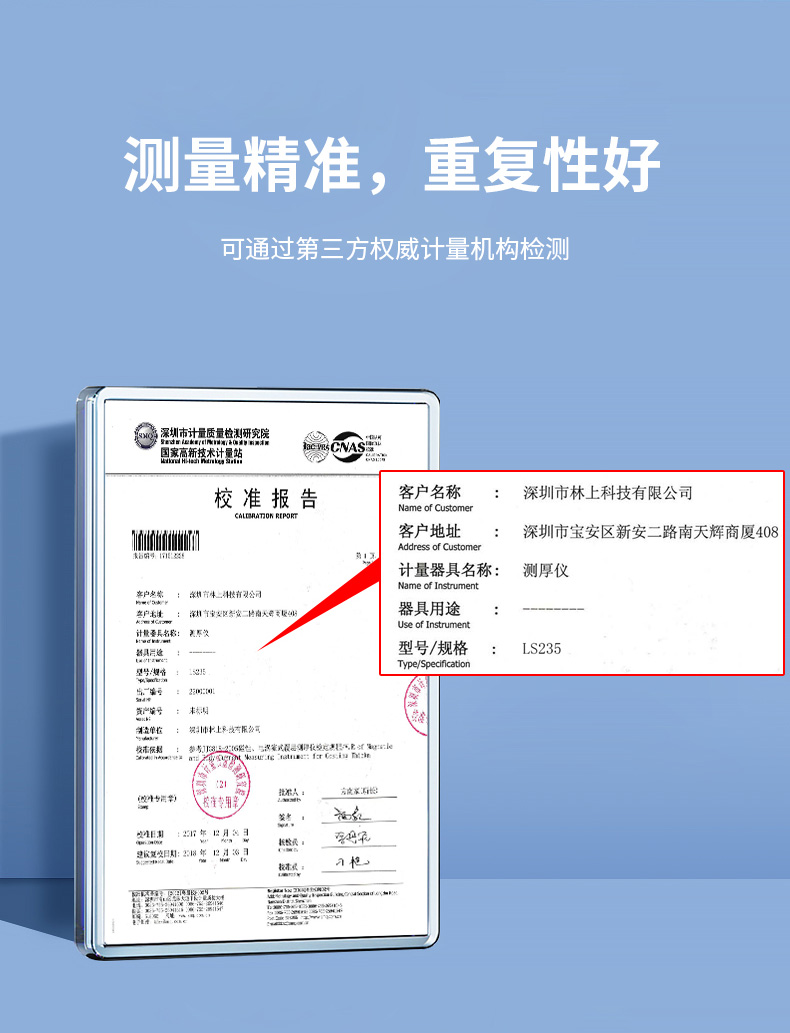

Linshang LS235 paint film meter details Figure 9

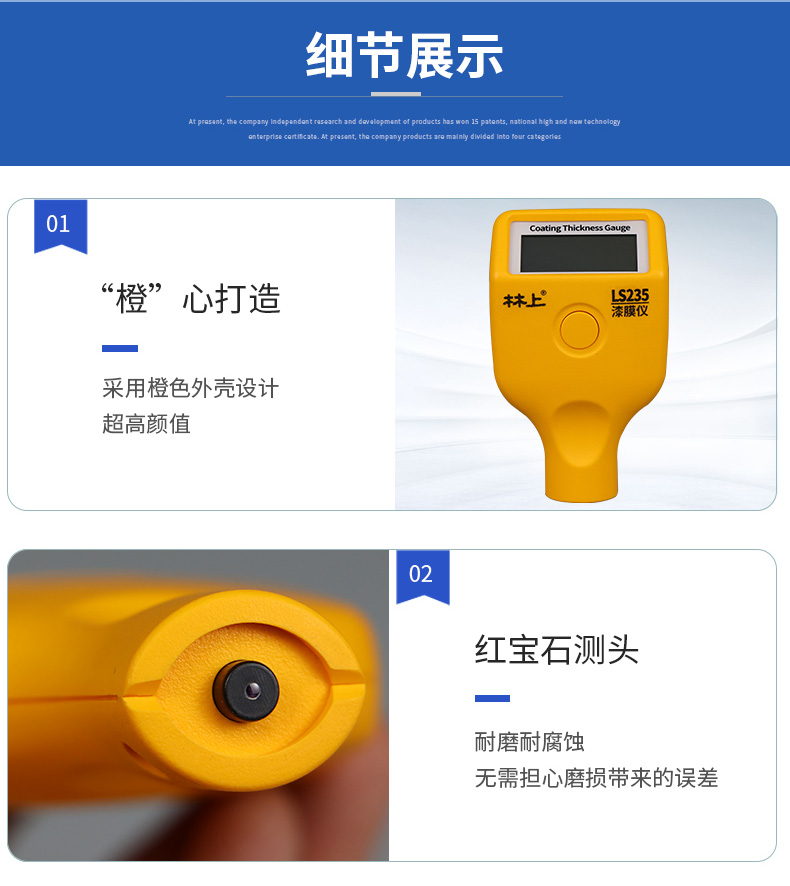

Linshang LS235 paint film meter details Figure 10

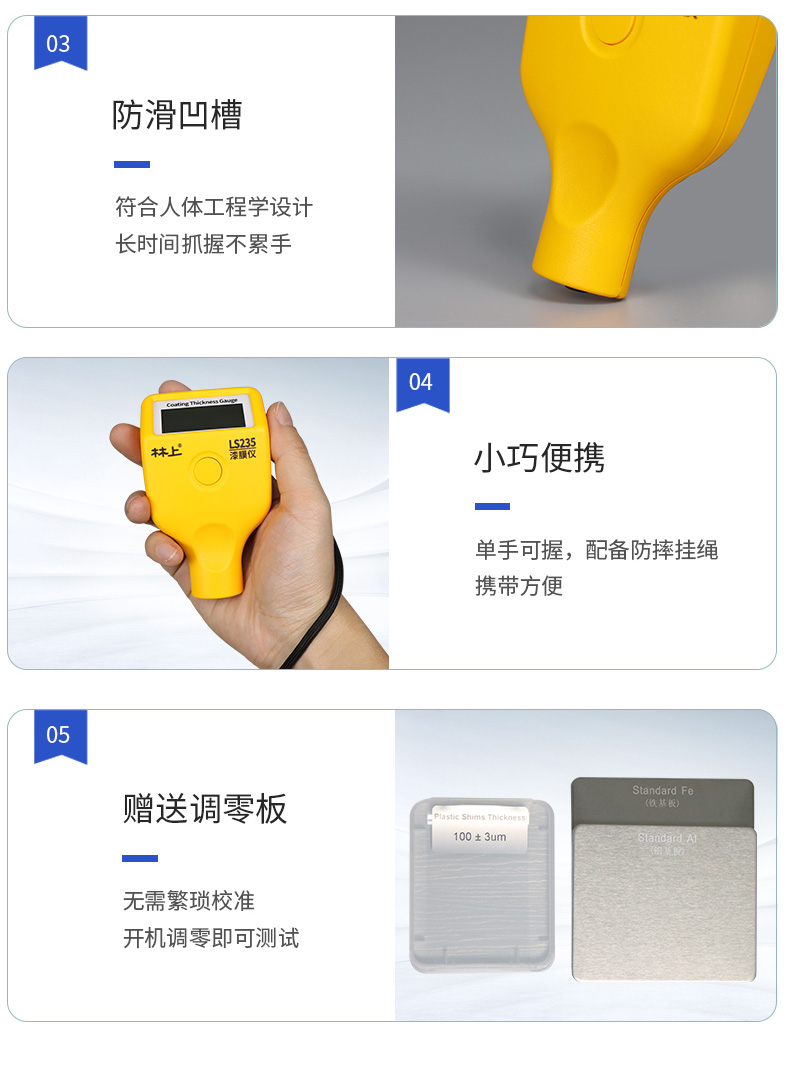

Linshang LS235 paint film meter details Figure 11

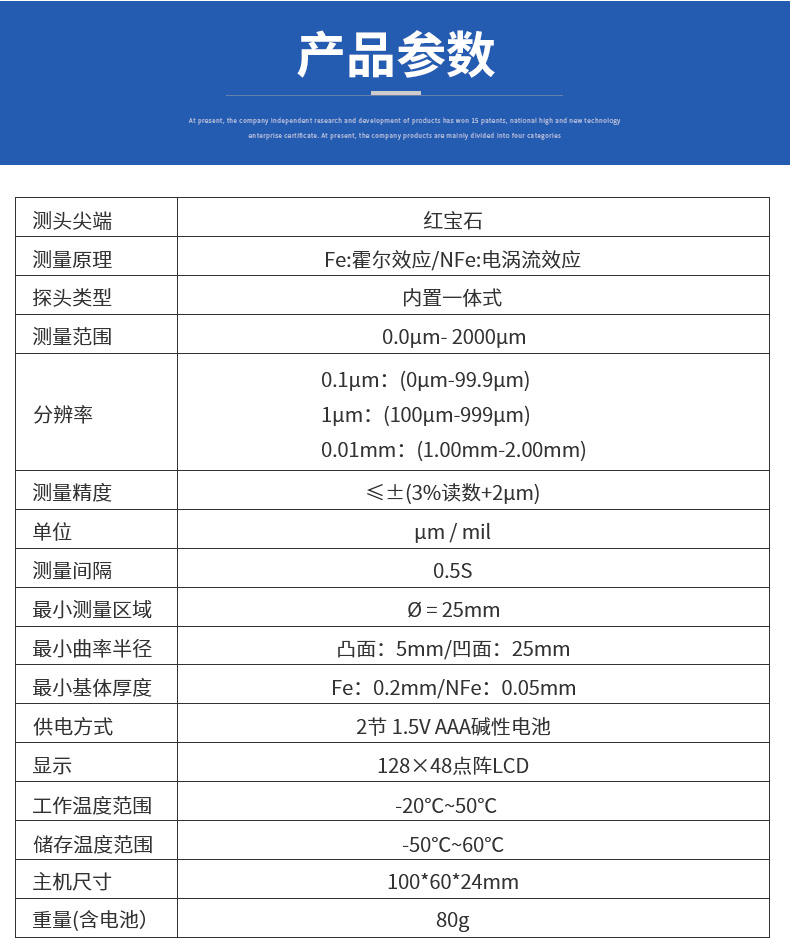

Linshang LS235 paint film meter details Figure 12

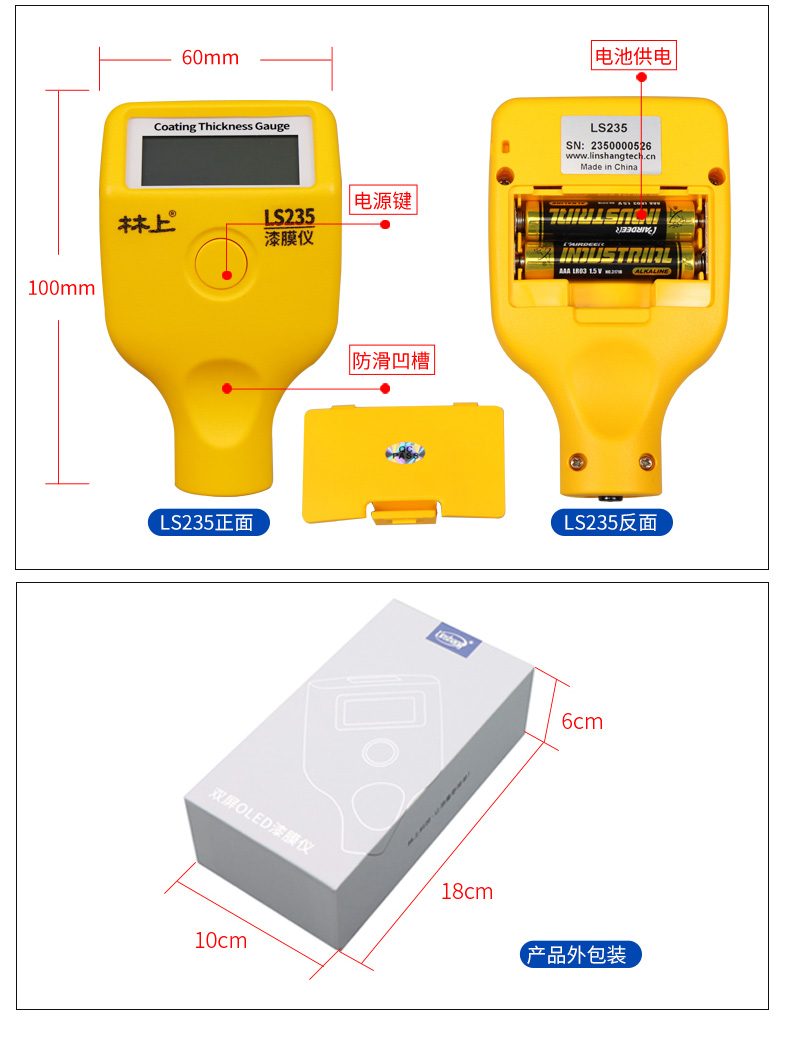

Linshang LS235 paint film meter details Figure 13
