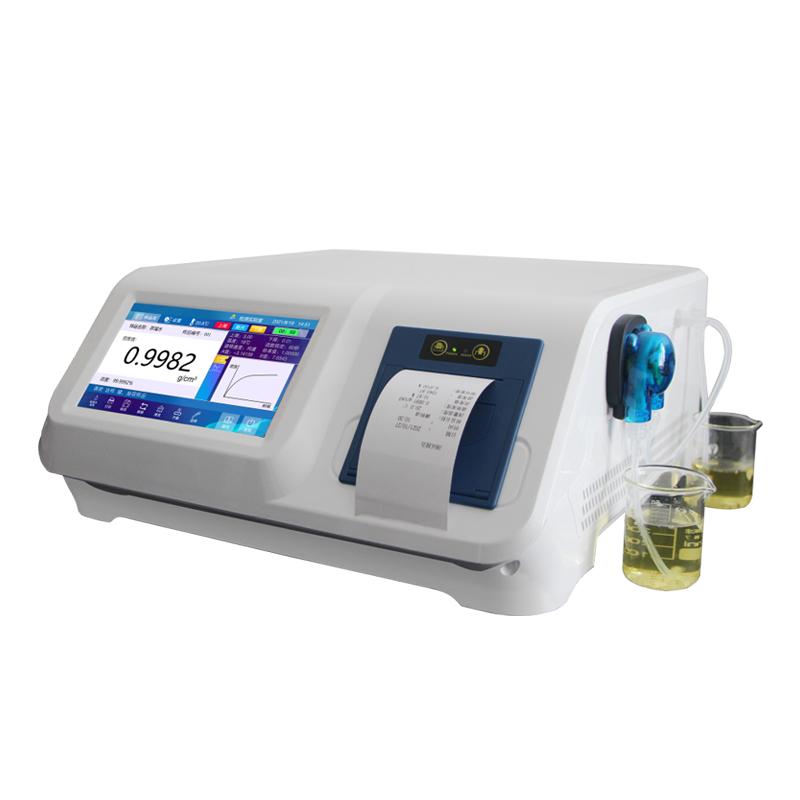

XIONGFA KSM-4006 U-Shaped Vibrating Tube Density Meter
SE
KSM-4006
XIONGFA KSM-4006 U-Shaped Vibrating Tube Density MeterSPEC
XIONGFA KSM-4006 U-Shaped Vibrating Tube Density MeterDetails
XIONGFA KSM-4006 U-Shaped Vibrating Tube Density MeterPacking list
- SKU
- NB038388
- Density resolution
- 0.0001g/cm3
- Repeatability +/-
- 0.0006g/cm3
- test range
- 0.0001-1.9999g/cm3
- Temperature Resolution
- 0.01℃
- Repeatability
- ±0.1℃
- Temperature control mode
- Peltier temperature control
- Temperature range
- 5℃－35℃
- test method
- U-shaped vibrating tube method
- Injection Capacity
- Manual injection of about 2mL, automatic pump injection of about 4mL
- Injection method
- Injection of syringes manually or automatic sampling by built-in injection pump
- cleaning function
- Automatic cleaning (compatible with manual)
- Whether to bring video
- Yes
- Measurement time
- Manual operation for 1 to 4 minutes, automatic program for 2 to 10 minutes (depending on the actual temperature of the sample)
- show
- 7 inch TFT touch screen monitor
- display value
- Density, relative density, temperature, concentration, Baume
- Measuring method
- Store 100 custom Measuring methods, including Measurement parameters for each sample
- stability judgment
- Stabilization time can be set according to measurement Accuracy and time
- Concentration conversion
- Enter density and concentration tables or conversions to automatically convert concentration values
- statistical calculation
- 100 sets of test values are automatically saved, and the average value can be automatically calculated, MAX Maximum and MIN Minimum.
- output method
- Standard RS232, can be customized RJ45, SD card, U disk, USB
- optional function
- User Management, Audit Trail, Electronic Signature, Export File Verification High Level of Protection MD5, Export to a variety of file formats such as PDF and Excel, Other functions can be customized upon request.
Introduction
The automatic density meter adopts the principle of U-tube oscillation method, effectively combines Peltier's precise temperature control technology and high-definition video camera technology, which not only provides users with accurate, stable and reliable test results, but also brings users an effective and convenient test experience. The high-definition video can easily see whether there is a bubble influence in the sample, and the pulse excitation and high-precision detection technology are used to facilitate users to accurately and quickly measure the sample density and density-related parameters.
Test principle: A small amount of sample is injected into a sample tube with controlled temperature, the vibration frequency or period is recorded, and the density of the sample is calculated using the pre-obtained sample tube constant. The specimen tube constant is determined by the vibration frequency of the specimen tube when it is filled with a calibration solution of known density. The instrument displays the density value directly after the sample is injected into the tube.
Features
1. The density meter has high measurement accuracy, fast measurement speed and small sample volume
2. Built-in injection pump, automatic filling, washing and drying of the measuring cell
3. High-definition video camera technology, convenient for direct observation of the measuring cell
4. Smooth joint, no bubbles and pollution, easy to clean
5. Enter the comparison table of density and concentration to convert the concentration of the sample
6. GLP compliant, storage of results, inspection and calibration records
7. Built-in thermal printer, can be customized to print sample name, company and other information
8. Built-in drying blowing pump, each cleaning is completed, and the sample tube can be dried automatically
Application
Industry: Quality control of APIs and intermediates, determination of specific gravity and density of pharmaceuticals
Flavors and fragrances: raw material verification of food flavors, daily flavors, tobacco flavors, and food additives
Petrochemical industry: crude oil API index, gasoline and diesel density detection, additive mixing process monitoring
Beverage industry: measurement of sugar concentration, alcohol concentration, beer quality control, soft drink quality control
Food industry: quality control of grape juice, tomato juice, fructose syrup, vegetable oil and soft drink processing
Liquor industry: detection of alcohol concentration of liquor, rice wine, red wine, beer, fruit wine, rice wine, etc
Chemical industry: chemical urea, detergent, ethylene glycol, acid and alkali and ammonia concentration testing
Machinery manufacturing: metalworking, machine building, automotive industry, cleaning agent testing for electrical and electronic appliances
Inspection Institutions: Standard Laboratories, Statutory Testing Institutions, Third Party Testing Liquid Density Measurement
