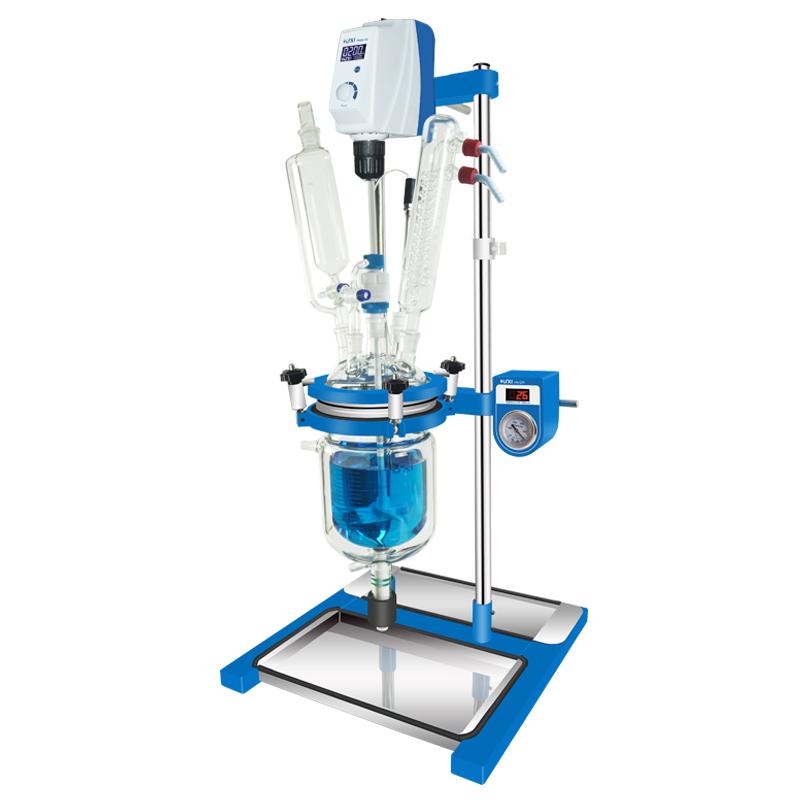

HUXI HF-2L Inverter Speed Regulation Glass Reaction Kettle

HF-2L

Variable Frequency Speed Regulation Glass Reaction Kettle

The volume of the kettle body is 2L, the volume of the jacket of the kettle body is about 0.6L, the condenser condensation area is about 0.025 square meters, the volume of the constant pressure funnel is about 200ml, the operating temperature of the kettle body is -80~200 ℃, the temperature difference between the inside and outside of the kettle body is ≤ 80, and the pressure of the kettle body is -0.1~ 0.

Applications

HF-series frequency conversion speed regulating glass reactor is mainly used for the synthesis reaction of materials. By injecting a certain temperature circulating fluid into the interlayer of the reactor, the inner layer of the reactor can react at the required temperature. If necessary, the inside of the kettle can be evacuated to make the material react under negative pressure. The uniform dropping of materials can be controlled by adjusting the regulating valve on the outlet pipe of the constant pressure funnel. Using the heat exchange function of the condenser, the reaction product can be recovered by distillation.

Features

• The glass parts are made of high borosilicate glass, which has excellent corrosion resistance and high-low temperature resistance. At the same time, the linear expansion coefficient is low and can withstand large thermal shock;

• Removable, no dead space discharge valve, easy to discharge reactor materials;

• Standardized connection method, convenient and quick disassembly;

• The temperature and vacuum test unit is convenient to accurately grasp the temperature and vacuum degree in the kettle;

• Under vacuum state, the negative pressure can reach 0.095MPa;

• Top-mounted agitator and equipped with imported agitating bearing sleeves;

• All parts in contact with liquid are made of high borosilicate glass or PTFE, which has excellent corrosion resistance;

Packing list：Glass kettle body and kettle cover All Glass kits X1, RWD50 Overhead Stirrer X1, PTFE four-leaf Impeller X1, vacuum pressure gauge & temperature display X1, temperature sensor X1, host bracket X1, front and rear 316 mirror water tray X1, length 1 meter, inner diameter 8 mm vacuum tube X1, length 1 meter, inner diameter 10 mm circulating tube X2, manual X1, certificate X1,

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
