MODERNER XD-5RVOC-AHF walk-in VOC emission detection environmental Test Chamber

Walk-in VOC emission detection environmental test cabin simulates the reduction of parameters such as temperature, Humidity, number of ventilation and surface air Flow velocity of the sample in the natural environment, detects the VOC emission of the sample in practical applications, and evaluates the environmental protection evaluation standard
Certificate
Contact
Details SPEC

Moderner XD-5RVOC-AHF VOC environment chamberSPEC

Moderner XD-5RVOC-AHF VOC environment chamberDetails

Moderner XD-5RVOC-AHF VOC environment chamberPacking list

SKU
NB038428
Interior size
Inner box size 5 +/- 0.02 m ³; width 1600mm depth 1600mm height 2000mm
Temperature & Moisture
Temperature range: 20 ℃~ 65 ℃; humidity range: 30%~ 75% RH (at + 20~ + 60 ℃)
Instrument resolution
Temperature: 0.1 ℃; Humidity: 0.1% RH;
Temperature Fluctuation
±0.2℃；
Temperature Uniformity
≤1.5℃
Humidity stability
≤±1.5%RH
air displacement rate
1~ 3 times/hour (adjustable)
Flow rate Accuracy
Digital Flow rate meter, Accuracy class 0.5; 4-40m ³/L
Air tightness
When the pressure is over 1000pa, the leakage is less than 10- 3 × 1m 3/min.
Stabilization time
Temperature Stabilization time is less than 40min, Humidity Stabilization time is less than 60min, and the equipment can run continuously for not less than 30 days;
background indicator
TVOC≤0.05 mg/mm³
noise
≤ 60 decibels (A sound level), there will be no resonance sound between the box door and the equipment door
XD-5RVOC-AHF
VOC environment chamber
Walk-in VOC emission detection environmental test cabin simulates the reduction of parameters such as temperature, Humidity, number of ventilation and surface air Flow velocity of the sample in the natural environment, detects the VOC emission of the sample in practical applications, and evaluates the environmental protection evaluation standard

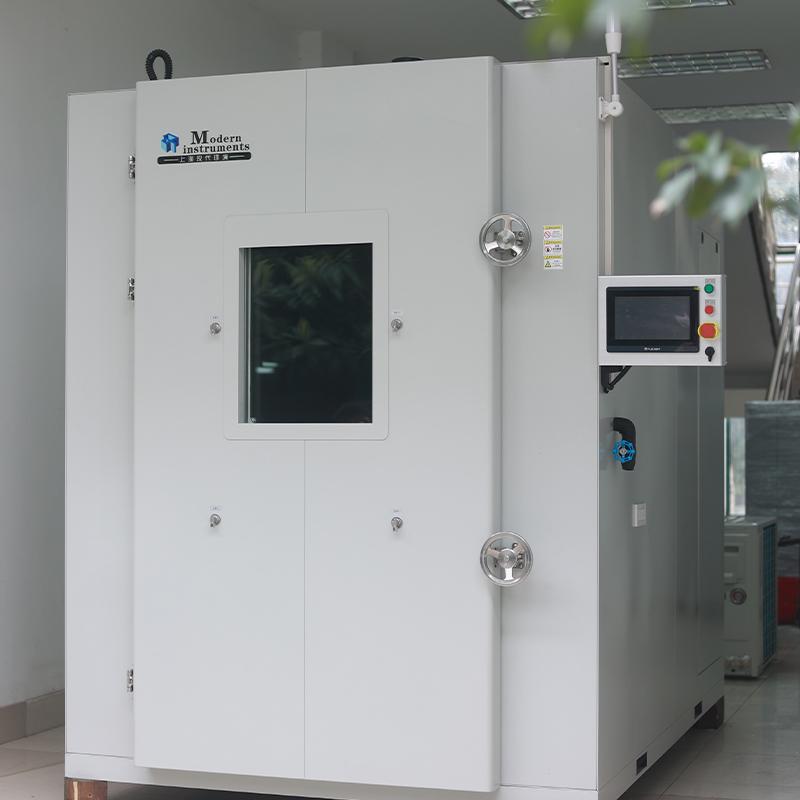

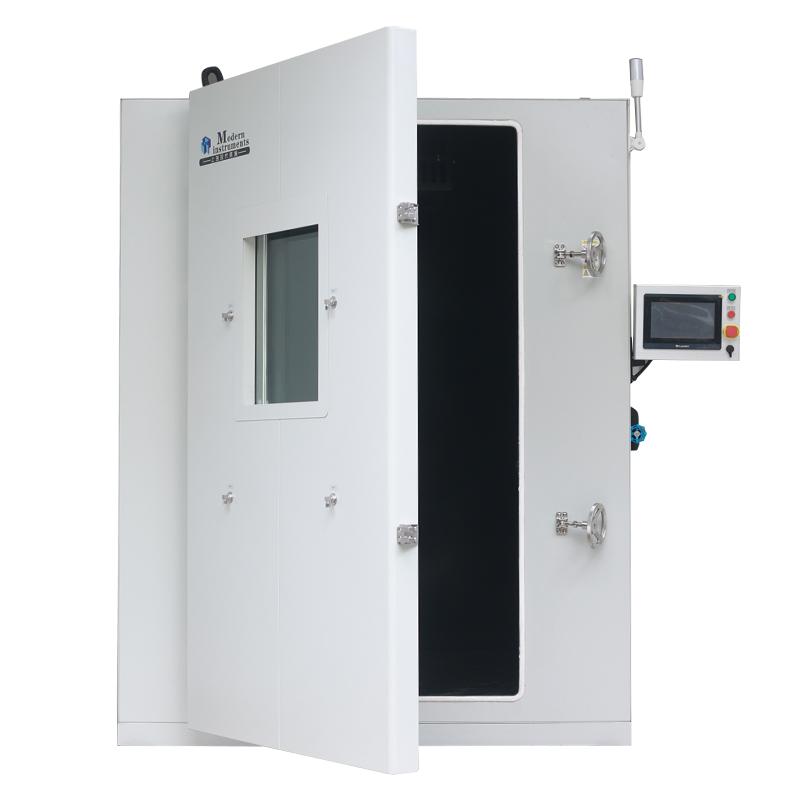

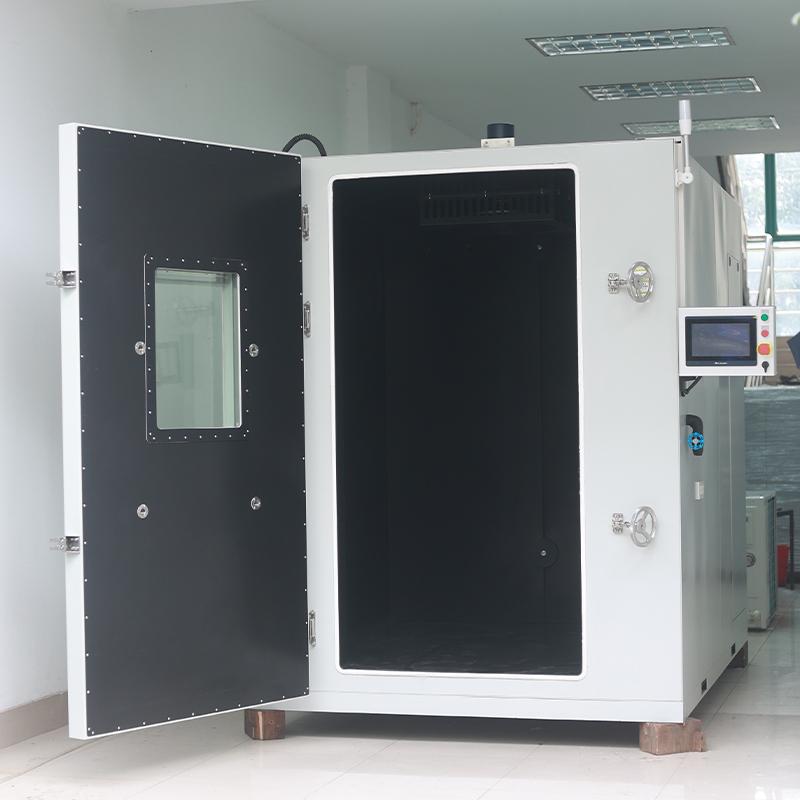

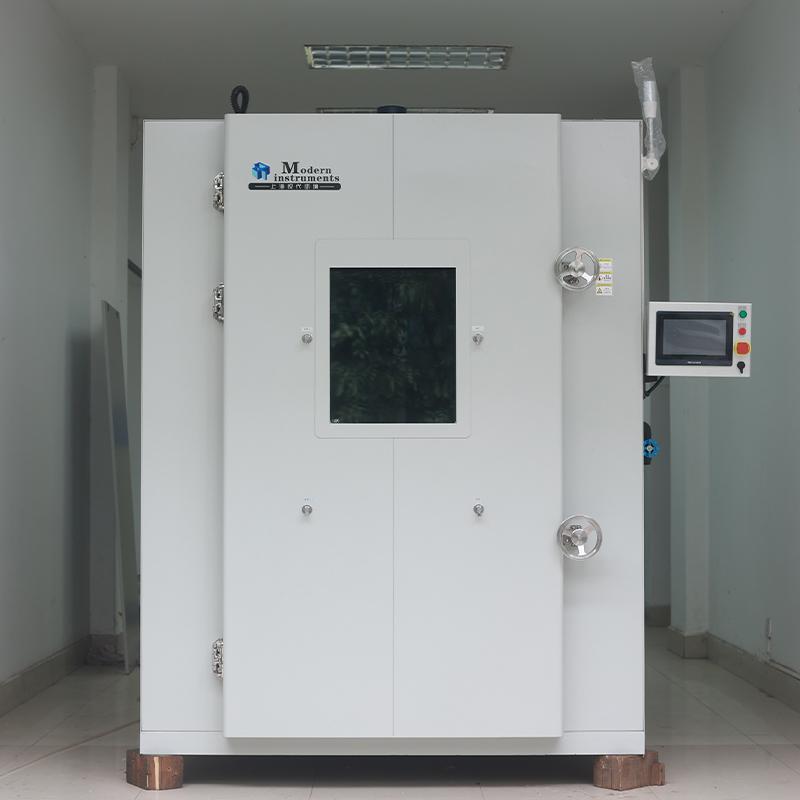

MODERNER XD-5RVOC-AHF walk-in VOC emission detection environmental Test Chamber Picture

Overview

The walk-in VOC release detection environmental Test Chamber restores parameters such as temperature, humidity, ventilation , and detects actual conditions through the test methods and verification methods specified in the standard. The VOC release amount of the sample in volatilethe application , thereby The evaluation analyzes the various levels of quantification of the samples at the R&D and use levels and the analytical basis for the environmental impact assessment:


● Determine the impact of environmental variables on the VOC release amount and release characteristics of test materials

● Classify materials according to their VOC release characteristics

● Research and development of sample materials and verification of indoor air VOC release pollution characteristics

● The time duration at which the VOC release amount of the sample material decays in the natural environment

● Based on the detection data analysis, the assessment of indoor air quality will be predicted.

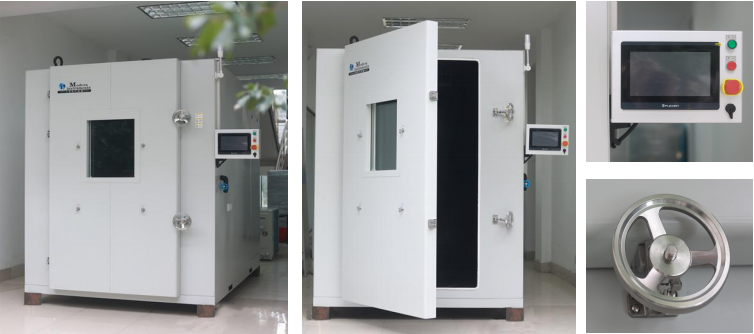

MODERNER XD-5RVOC-AHF VOC environmental chamber details picture 1

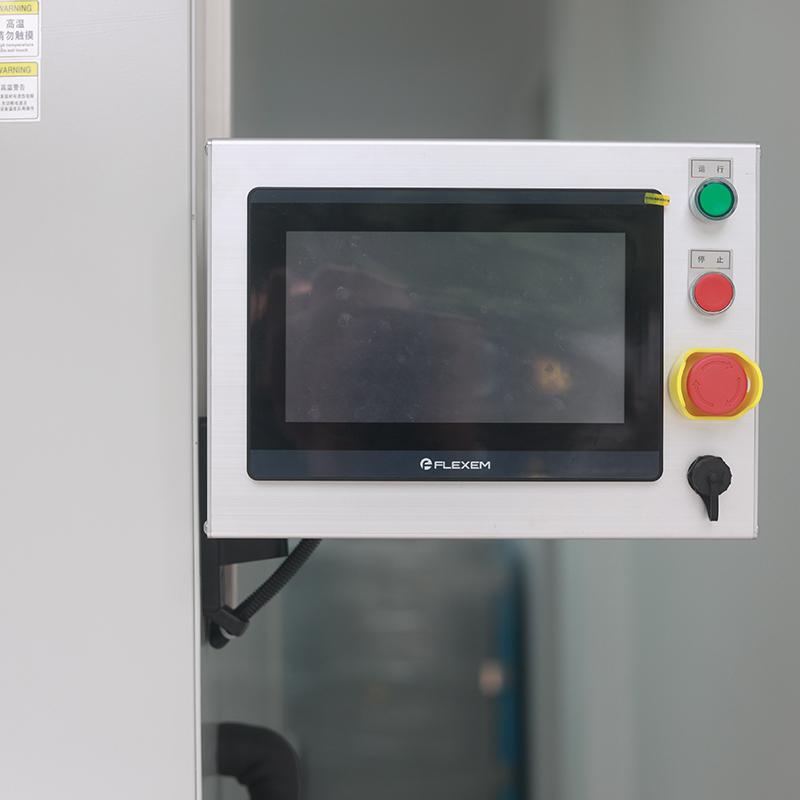

This climate cabin starts with one click and operates fully automatically. Temperature and Relative Humidity control uses PLC as the core control unit, which has high reliability and strong anti-interference ability. It realizes intelligent control of temperature and humidity. The temperature of the climate chamber is maintained at a constant temperature of 23℃ and a Relative Humidity of 50%. The air is replaced by pressurized pumps. Mode.

Equipment requirements

Equipment requirements
 power supply① Power supply: AC 380V 50Hz
② Maximum load capacity: 12.5KW
③ Maximum current: 18.5A
④ Power switch capacity: 40A
 water supplyPlease use pure water or distilled water, conductivity ≤10us/cm
Condensation drainage The diameter of the drainage pipe is ≥DN32, the inclination angle is >5°, and the height difference below the drainage outlet is not less than 5cm.
Move-in conditions
When moving parts and components into this laboratory, please meet the conditions on the rightHeight of path passage and door: more than 3000mm
Width of path passage and door: more than 3000mm
When using an elevator; in addition to meeting the above dimensions, the following requirements must also be met
Depth: more than 3000mm; load capacity: more than 2000Kg
※If you cannot meet the above conditions, please be sure to contact us in advance.

※Optional items for users

Purification device

Modern Environment XD-5RVOC-AHF VOC Environmental Chamber Details Figure 2

modelXD-5KQ-HT02
air flow＞15m³/h
Air supply pressure0.1～0.24bar
Air supply temperatureRT (normal temperature)
Formaldehyde mass concentration≤±0.001mg/m³
VOC concentrationTVOC≤0.01mg/m³, single VOC≤0.001mg/m³
noise≤60db (A sound level)


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
