SETCAS KW-4K experimental homogenizer with support for 18-inch substrates

SE
Maximum support 18 inches, touch screen with program control, with foot switch, with communication interface, formula with power-down protection function, maximum speed 3000rpm, distribution center alignment tool
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Setcas KW-4K Glue levelerSPEC

Setcas KW-4K Glue levelerDetails

Setcas KW-4K Glue levelerPacking list

SKU
NB038464
Suitable substrate
200~450mm/200~600mm (custom)
Speed range
1~3000rpm
Speed Accuracy
1rpm
Speed stability
±0.1%
Acceleration range
1~1000rpm/s
glue uniformity
±1%
Human Machine Interface
8 inch touch screen
Communication interface
USB (std.)/RS485 (std.)/Bluetooth (optional)
stylus
BAMBOO Resistance Pen (std.)
Vacuumpump
AP-550V no oil pump/FY oil pump
formula
Unlimited sets of data, each set of 15 speed (std.) or no speed (optional)
Every time
0~10000s
Store data
Unlimited set of data
Data Protection
Default with power-down protection function
Swirl/spin direction
Can be reversed
AC Power port of glue leveler
AC100-250V
Vacuumpump Power interface
AC220V (std.) AC110V (optional)
Gluer power
5KW
Vacuumpump power
350W
Vacuumpump pumping rate
≥60L/min
Volume of homogenizer
1000*1000*1650mm
Gluer Weight
200KG
Pump Weight
9KG
Environment temperature
0~40℃
Relative Humidity
<85%
KW-4K
Glue leveler
Maximum support 18 inches, touch screen with program control, with foot switch, with communication interface, formula with power-down protection function, maximum speed 3000rpm, distribution center alignment tool

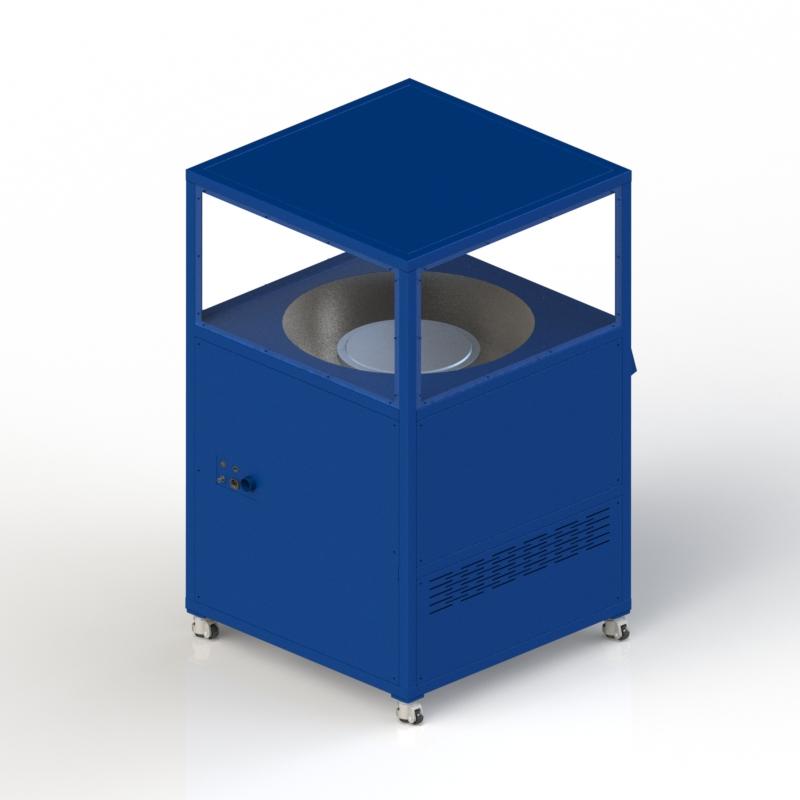

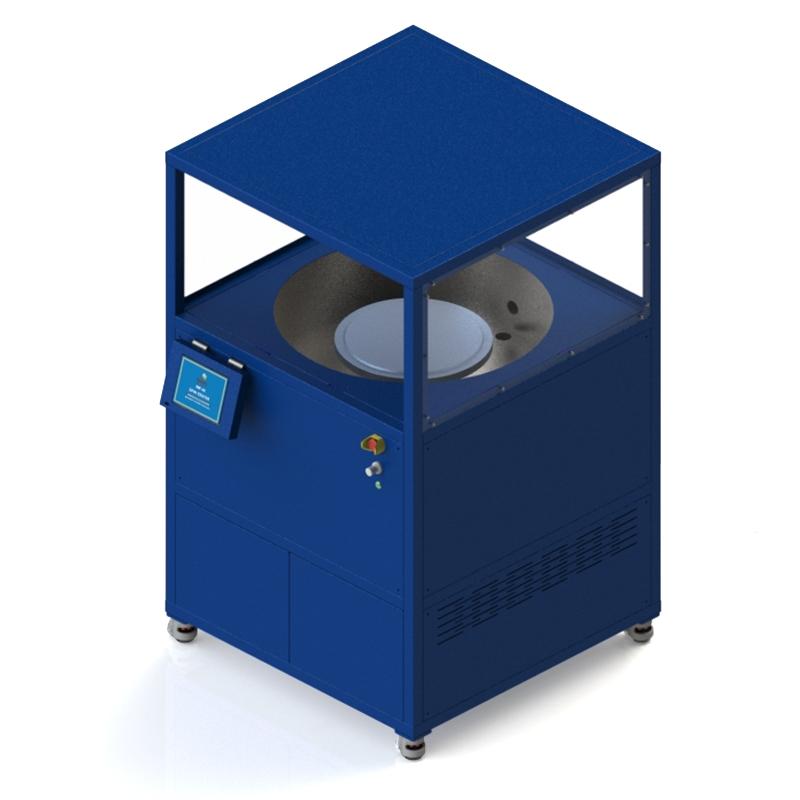

SETCAS KW-4K experimental homogenizer with support for 18-inch substrates Picture

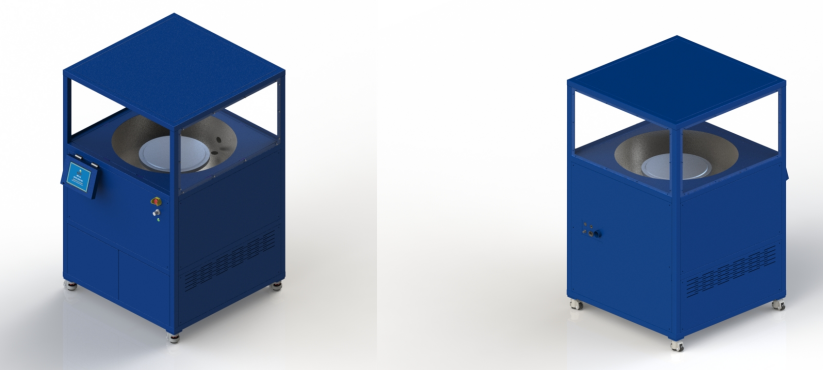

Side Case KW-4K Coating Machine Details Figure 1

Features

1. With glue protection and alarm;

2. Insufficient adsorption alarm and interlock;

3. The motor can be reversed;

4. With communication interface;

5. Mouse and keyboard can be connected;

6. Formula with power-down protection function;

7. With foot switch.

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
