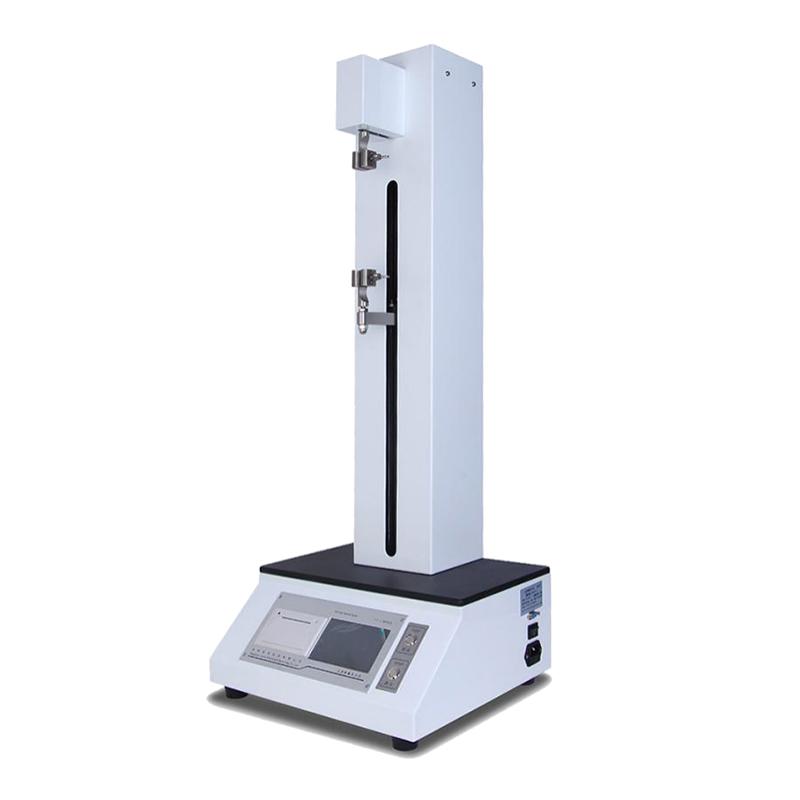

YINUO YN-KZY50 Computer Tensile strength Tester high-precision 500N

YN-KZY50

Tensile strength Tester

50Kg force measurement, 1-level accuracy ， +/- 0.3% force accuracy, high-precision, imported Sensors, three-axis guidance, precision ball screw, thermal printer, hybrid servo stepper motor, low noise and accurate speed.

Instrument use

YN-KZY50 Computer Tensile Strength Tester is used to measure the tensile strength and tensile index of various paper and cardboard materials according to the national standard GB/T12914 and ISO1924-2/3 methods. The two-way test method can be used for tensile strength /tensile strength. It is a tensile Strength Tester with a wide range and high precision. It is professionally used to test the tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy, absorption index, etc. of paper. It is suitable for paper mills, scientific research institutes and quality inspection departments.

Principle

Tensile strength Tester stretches a sample of specified size until it breaks at a constant speed, measures its tensile strength, and records the ultimate tensile strength, breaking length and tensile index at the time of breaking.

Executive standard

GB/T 12914, GB/T453, ISO1924-2/3, GB 8808, GB/T 1040, GB/T 17200, GB/T 16578.1, ASTM D882

technical features

• The instrument is guided by three optical axes, precision ball screw, and the transmission is stable and accurate.

• It adopts hybrid servo stepping motor, low noise and precise speed, and the motor has a built-in grating encoder, so the position positioning is accurate.

• The high-precision weighing sensor (Aviation Electric Measurement) and the American ADI high-speed 24-bit analog-to-digital converter ensure the rapidity and accuracy of instrument force data collection.

• Built-in travel protection, sensor over-range protection.

• The CPU of the motherboard adopts a 32-bit ARM processor, which improves the corresponding ability and calculation speed of the instrument, ensures fast response of over-range protection, and implements corresponding action protection.

• It adopts 7-inch color touch screen, Chinese display and touch buttons, making the operation easy to understand.

• The fixture seat adopts an easy-change design, which is convenient and fast when changing different fixtures.

• Automatic measurement, statistics, and printing of test results, power-off protection for test data, so that accidental power-off during the test, and the tested data will not be lost when the machine is turned on again.

• Real-time display of the force value-displacement change curve during the test.

• Adopt thermal printer, no need to use ink and ribbon, no noise when working, fast printing speed and so on.

• The instrument is equipped with a standard RS232 interface, which can communicate with computer software (purchased separately).

Application

Packing list：Complete machine X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
