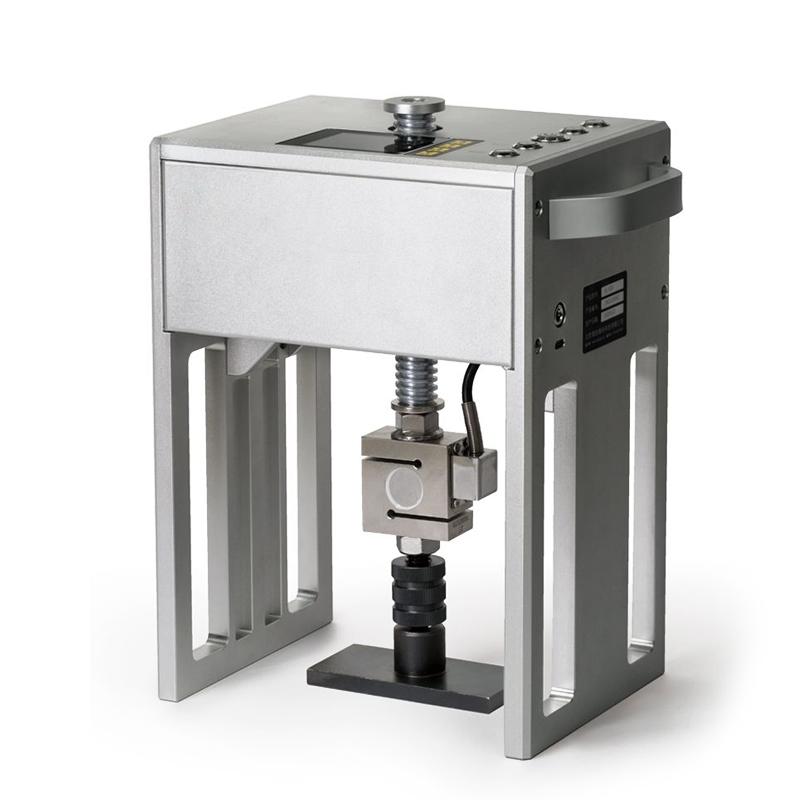

KOSON KSG-10 Electric Bond strength Tester Electric puller

ksg-10

Bonding strength Tester

Integrated structural design, electric test, high-strength aluminum alloy fuselage, 0.5% F. S grade high-precision S-type Sensors, real-time display of force value, strength value, displacement, speed, suitable for construction engineering fixed thermal insulation material rivet pulling force, wall thermal insulation material bonding strength and external-wall decorative bricks, carbon fiber materials, various plates, paints and other materials bonding strength detection.

Introduction

The electric bond strength Detector (electric pull-out instrument for short) is a new type of automatic testing instrument newly developed. It is suitable for rivet , bond strength of wall insulation materials and exterior insulation materials. Testing of bonding strength of wall tiles, carbon fiber materials, various boards, paints and other materials. The electric drawing instrument adopts an electromechanical integration design and is equipped with a high-precision S-shaped sensor. The entire instrument is integrated into a whole, including control display, sensor, screw, reaction support and other mechanical transmission parts to form a "door" structure. The Detector can simultaneously display the intensity value MPa and force value KN. It has the characteristics of light weight, labor-saving handle operation, and easy use.

Features

●Adopts integrated structure design, micro-motor electric-key loading, no manual testing required;

●The transmission parts are made of 42CrMo, which is quenched and tempered, making it more durable and stronger;

●The shell material is made of high-strength aluminum alloy, which has higher load capacity, more durability and beautiful appearance;

●The leg design adopts a hollow design as a whole, which fully reflects the humanity without affecting the strength, making it easier to hold and better in hand;

●Using high-precision S-type sensor, the accuracy level can reach above 0.5%FS;

●The instrument adopts a 3.5-inch touch screen and external button design, with clear display and easy operation;

●Real-time display of force value, intensity value, displacement and speed;

●Force intensity value time curve display function, broken line correction function, peak hold function;

●The fixed load value function can set the test force value and automatically stop when the test force value is reached;

●Setting menu, data can be recorded, queried and deleted;

●Data export function, equipped with special host computer software, can generate test reports;

●Hardware and software are designed with dual safety protection devices to ensure detection reliability;

●The power supply method adopts imported 12V lithium battery, which can be equipped with a large-capacity external power supply for longer battery life;

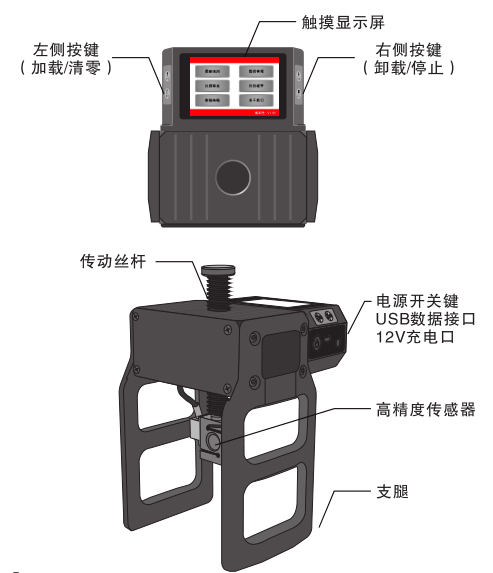

Instrument structure

Adopting mechatronics design, embedded measurement display circuit, and a complete set of instruments as a whole.

Packing list：Host X1, charger X1, manual X1, certificate X1, warranty card X1, combination glue X1 box, riveting box 6-8-10 each X1, 100X100 standard block X5, 45X95 standard block X5

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
