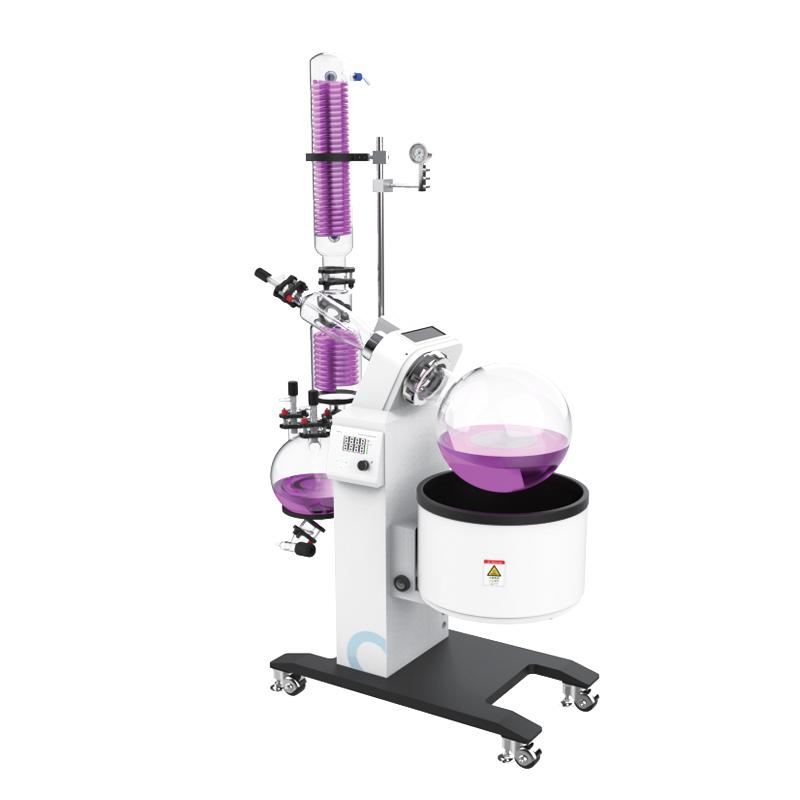

YIHENG BRE-05 Rotary evaporator volume 5L

BRE-05

Rotary evaporator

Rotation speed 20-140rpm, evaporation capacity 2L/h, automatic lifting device and automatic switching valve, double-decked high efficiency condenser, Water Bath/Oil Bath double heating.

Product Description

The laboratory instrument rotary evaporator is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure. Especially for the concentration of the extract and the distillation of the receiving liquid during chromatographic separation, the reaction product can be separated and purified. The basic principle of the rotary evaporator is distillation under reduced pressure, that is, under reduced pressure, when the solvent is distilled, the distillation flask is continuously rotating.

Features

● Large-capacity, large-diameter rotary bottle with large evaporation area, placed in a Water Bath, heated while rotating, and equipped with a decompression device to effectively evaporate the solvent. It can be used in pilot tests in the fields of biology, medicine, chemical industry, food and so on. It forms supporting devices with diaphragm Vacuum Pumps and circulating coolers.

● LCD display, multi-group data display on one screen, menu-style operation interface, knob-style setting, easy to understand, easy to observe and operate, PID controller, easy and quick setting of speed, temperature and time.

● Automatic lifting device for bathing pot, V-belt transmission with small vibration, stable lifting, simple structure, low noise and easy operation.

● Double-layer effective condensing tubes, large cooling area, strong evaporation capacity, ensure effective recovery of samples from a small amount to a large amount.

● Professional sealing system design, high elastic PTFE material sealing ring, with high temperature resistance, corrosion resistance, durable and other characteristics, reduce the frequent replacement of sealing gaskets by laboratory operators, and double the service life of sealing rings compared with traditional manufacturers.

● Equipped with an automatic switching valve for continuous collection without affecting the system negative pressure index and solvent distillation.

● Teflon material discharge valve can conveniently and quickly release the material received in the recovery bottle, which is corrosion-resistant and pollution-free.

● The box body uses casters with anchor bolts, which can be fixed on the ground when the equipment is running, so that the experiment process is stable and reliable without accidents.

● Water bath/Oil Bath dual heating mode, equipped with anti-dry burning and power-off function, the pot body is made of high-temperature resistant and flame-retardant materials to prevent accidents. (standard Water Bath)

● Automatic control, optional vacuum controller to control the vacuum degree of the sample and realize the automation of solvent separation. security function

● The outer casing and the inner container of the pot are designed with a special heat-insulating structure, which keeps the surface temperature of the outer casing of the pot low, avoiding accidental burns of experimenters during use, and preventing accidents.

● The inner layer of the heating bath is made of Teflon coating, which can withstand high-low temperature, corrosion resistance, easy to clean, and avoid cross-contamination during the experiment.

● Double-layer effective condenser, designed to prevent backflow of evaporative condenser.

● The safety level design of the Water Bath has the function of preventing dry burning and power failure. The body of the Water Bath is made of high temperature resistant and flame retardant materials to prevent accidents.

● The pot is equipped with an independent temperature limit alarm system, which will automatically stop working when the temperature exceeds the limit temperature, so as to ensure the safe operation of the test without accidents.

● Key electrical components are equipped with over-current, over-temperature, overload and other safety protections to prevent equipment accidents.

● When the equipment fails, the fault information will appear on the display to ensure that the fault information is clear at a glance.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
