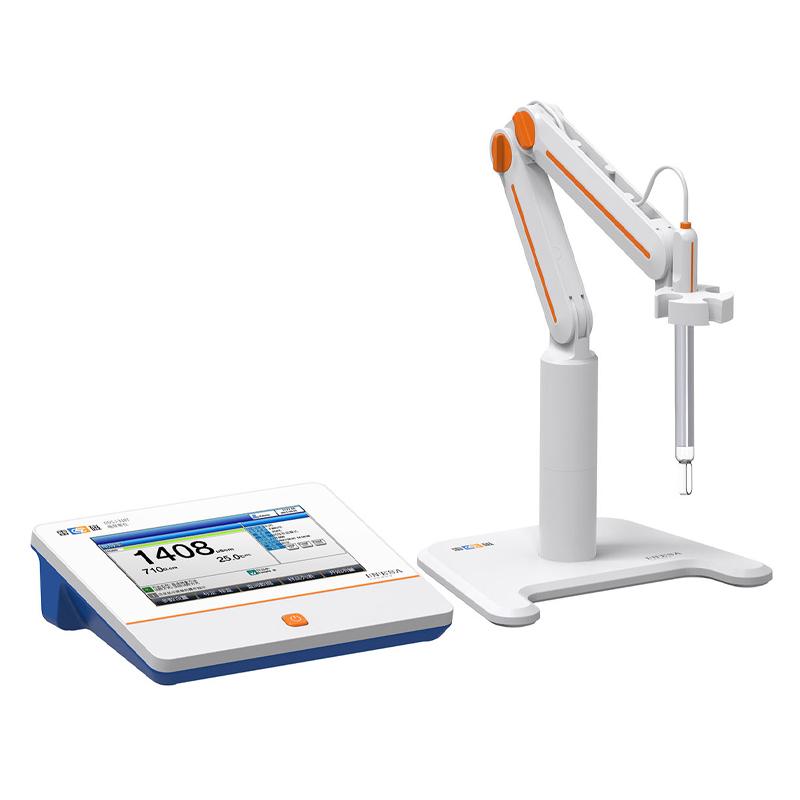

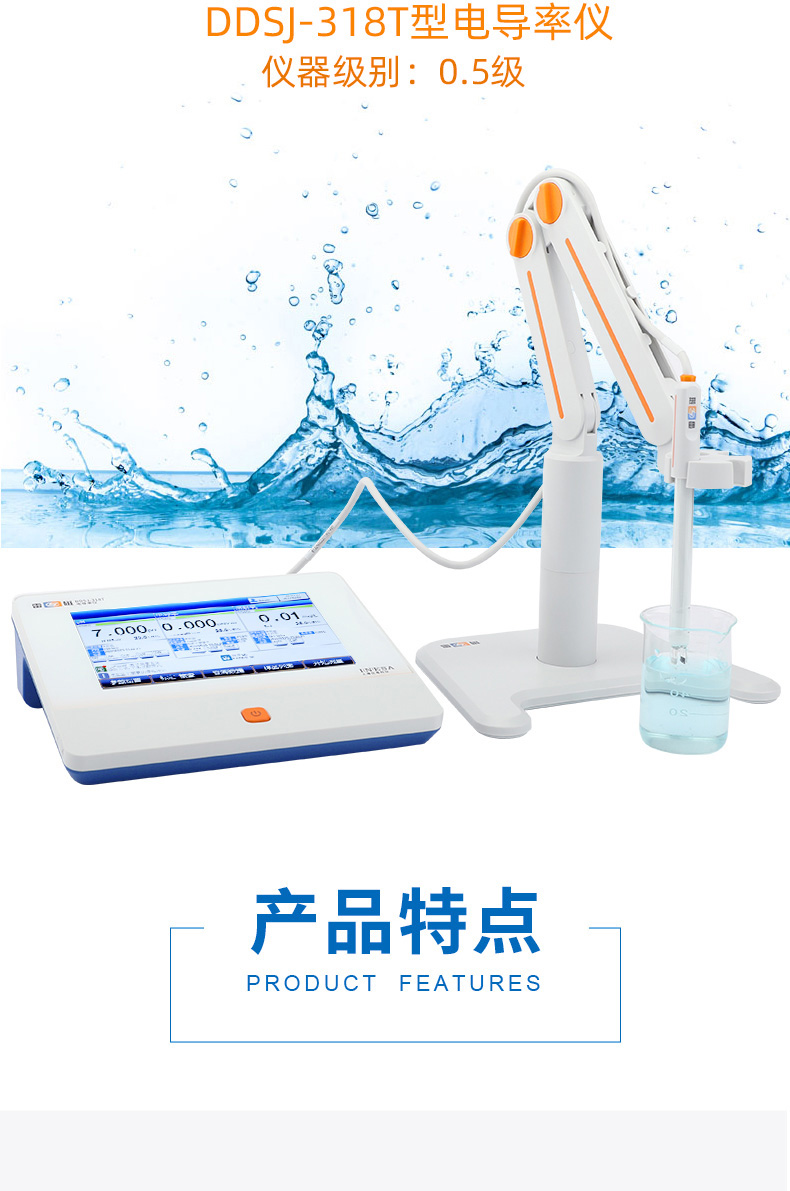

LEICI DDSJ-318T Conductivity Meter conductivity Electrical resistivity TDS salinity value, ash, temperature value 0.5 level

DDSJ-318T

Conductivity Meter

Measurement conductivity, Electrical resistivity, total solid dissolved matter (TDS), salinity value, ash, temperature value parameters, standard composite Conductivity Detector electrode, independent electrode holder, dust cover and bagged calibrated solution, intelligent operation, automatic identification, batch detection, data management, information traceability

main feature

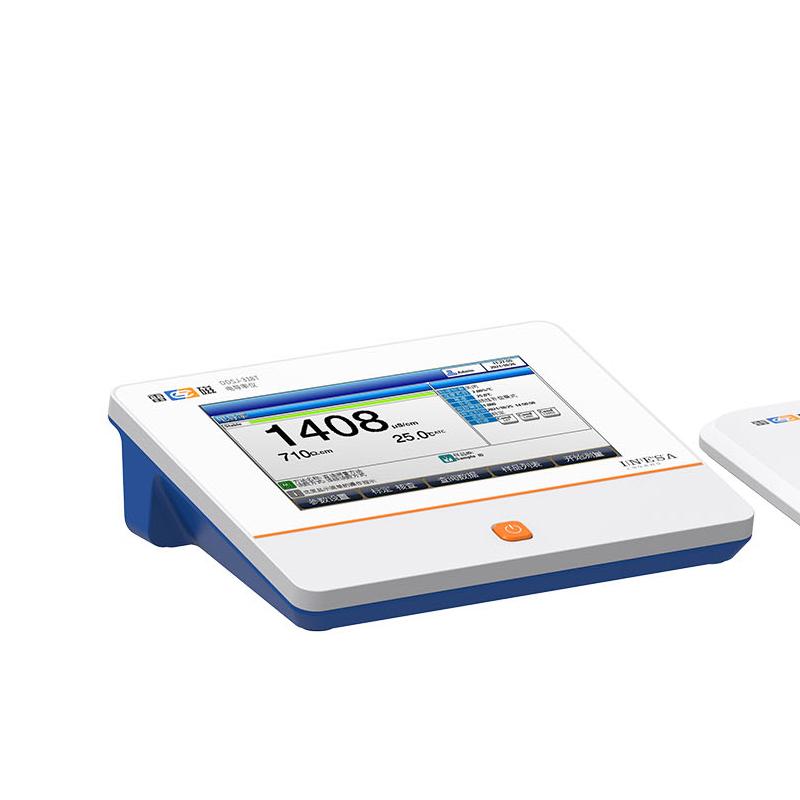

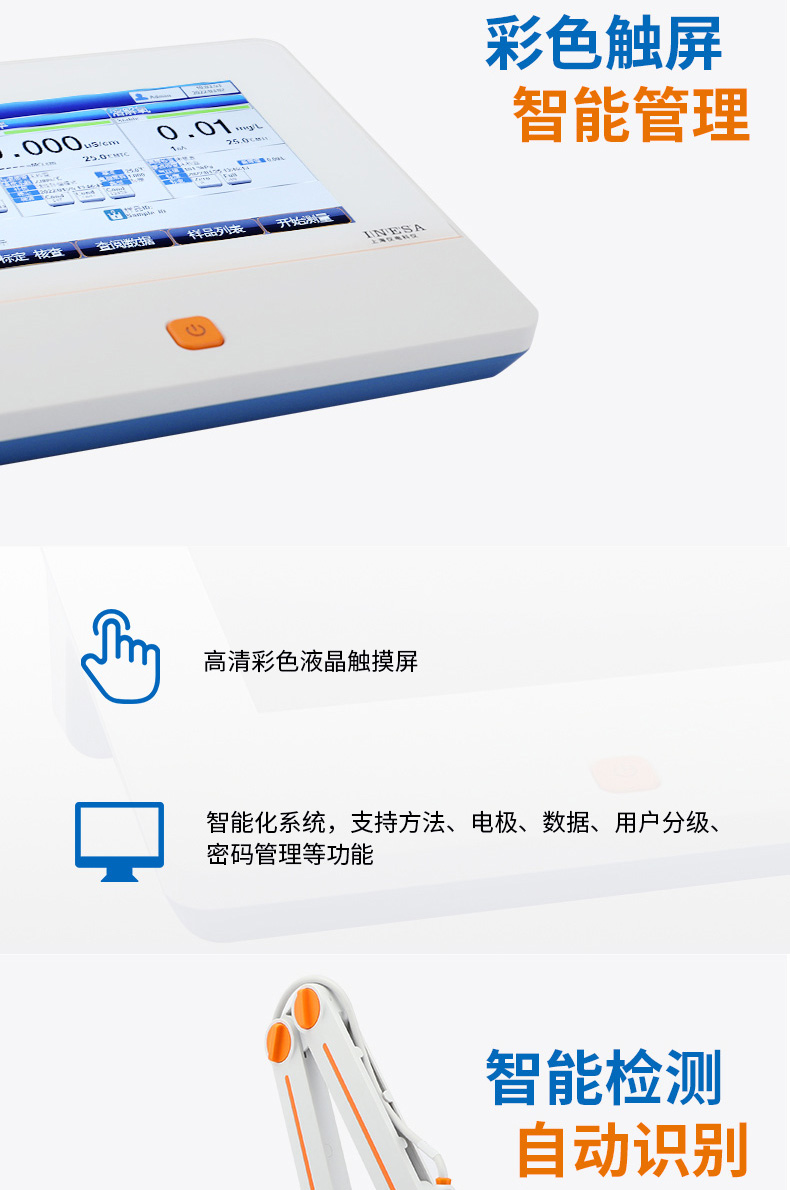

● Adopt high-definition color LCD touch screen with clear display

● Support Chinese and English

● Temperature units optional: ℃ and °F

● Reference temperature 5.0℃, 10.0℃, 15.0℃, 18.0℃, 20.0℃ and 25.0℃ are optional, the default is 25℃

●Support functions such as automatic shutdown, power-off protection and factory reset

● Support firmware upgrade function, allowing function expansion and personalized requirements

●Support IP54 protection level

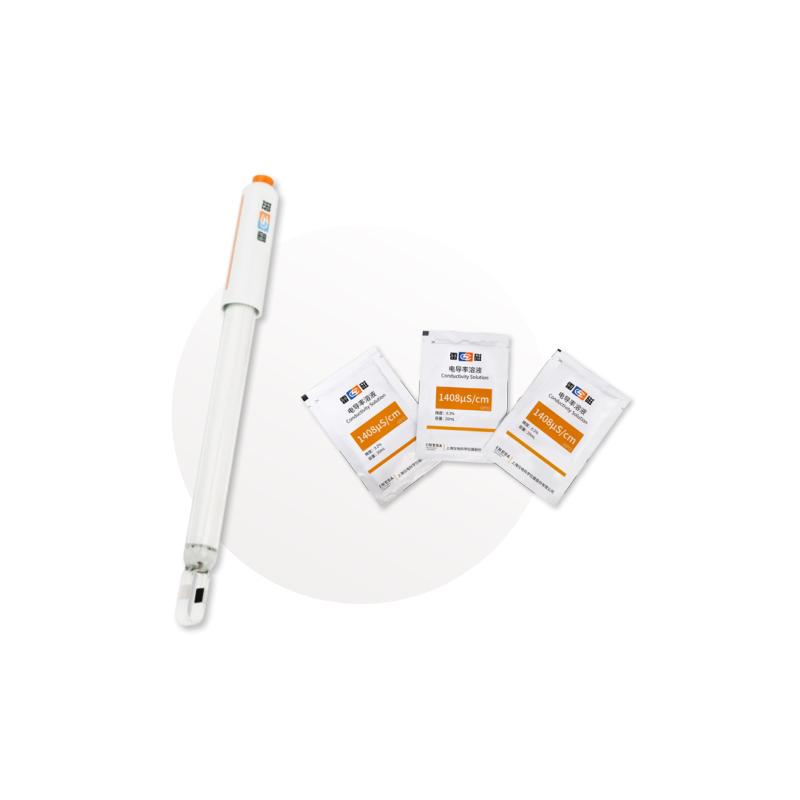

● Comes standard with composite conductivity electrode, independent electrode holder, dust cover and bagged calibration solution

Intelligent operation, automatic identification, batch detection

● Intelligent operating system with functions such as method management, electrode management, data management and user management

● Support instrument self-test and user hierarchical authority management, support password management

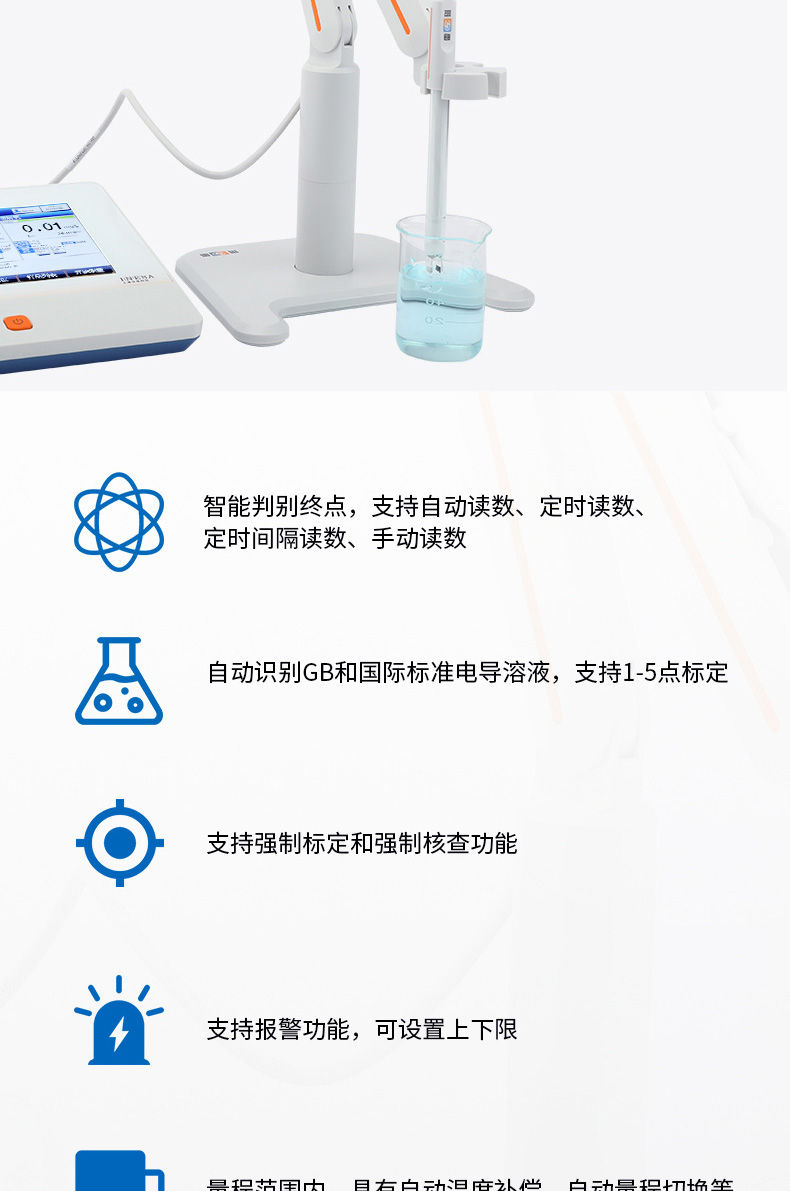

● Intelligent identification of end points, supporting automatic reading, scheduled reading, scheduled interval reading, and manual reading

● Automatically identify GB and international standard conductivity solutions, and support 1-5 point conductivity electrode calibration

●Supports calibration reminder and forced calibration functions, supports conductivity standard solution verification and mandatory verification functions

●Support measurement alarm limit setting

● Within the range, it has functions such as automatic temperature compensation and automatic range switching.

●Supports multiple conductivity compensation modes such as non-compensation, linear, non-linear, pure water compensation, etc.

● Supports multiple salinity compensation modes such as seawater salinity and default salinity.

● Supports automatic frequency switching, and is equipped with a 1.0 constant electrode that can cover the full range of measurements (it is recommended to use a 0.1 constant or 0.01 constant conductivity electrode for measurement of samples below 20 μS/cm)

● Supports connection to an automatic sampler to achieve automatic measurement and batch detection of samples

Data management, information traceability,

● Comply with GLP specifications, support 1000 sets of data storage, review, deletion, statistics, analysis, transmission and printing

● Support GMP management, support GMP operation log review, and achieve complete traceability and tracking of data.

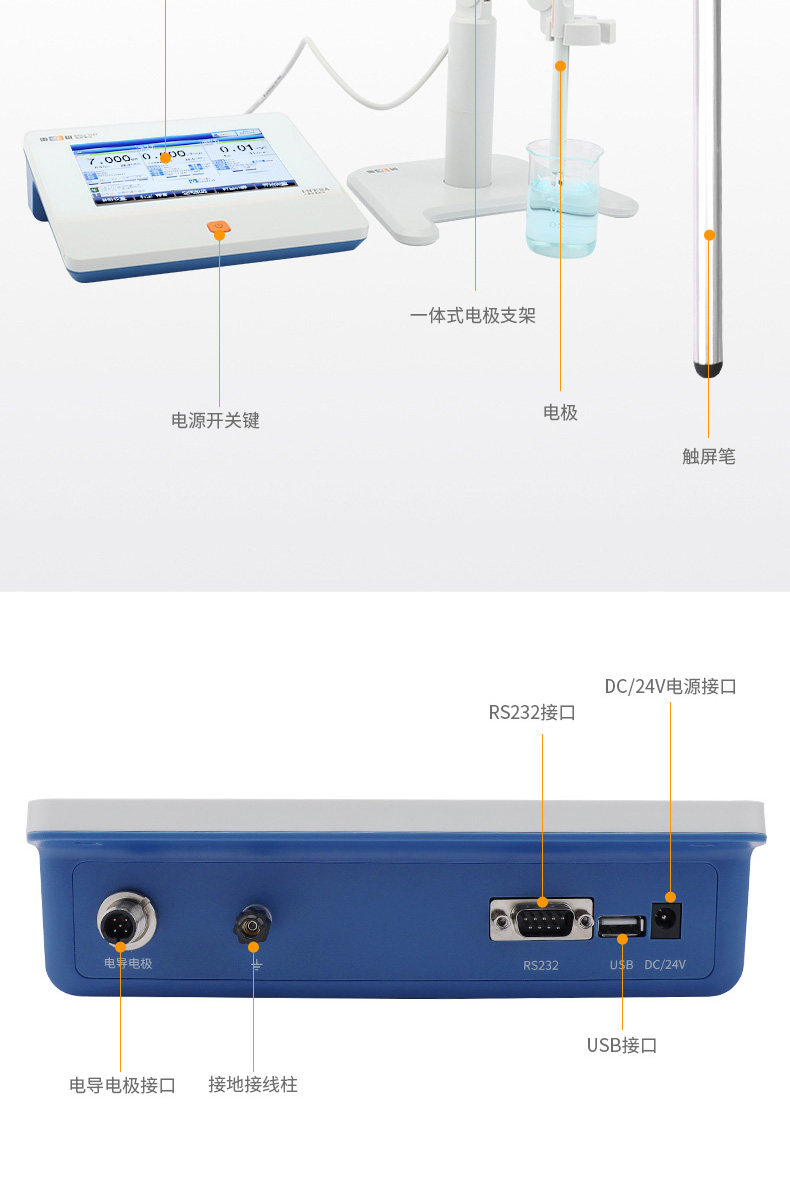

● Equipped with RS-232 interface, supports connection to standard RS-232 serial port printer, and directly prints measurement results. The printing format is optional.

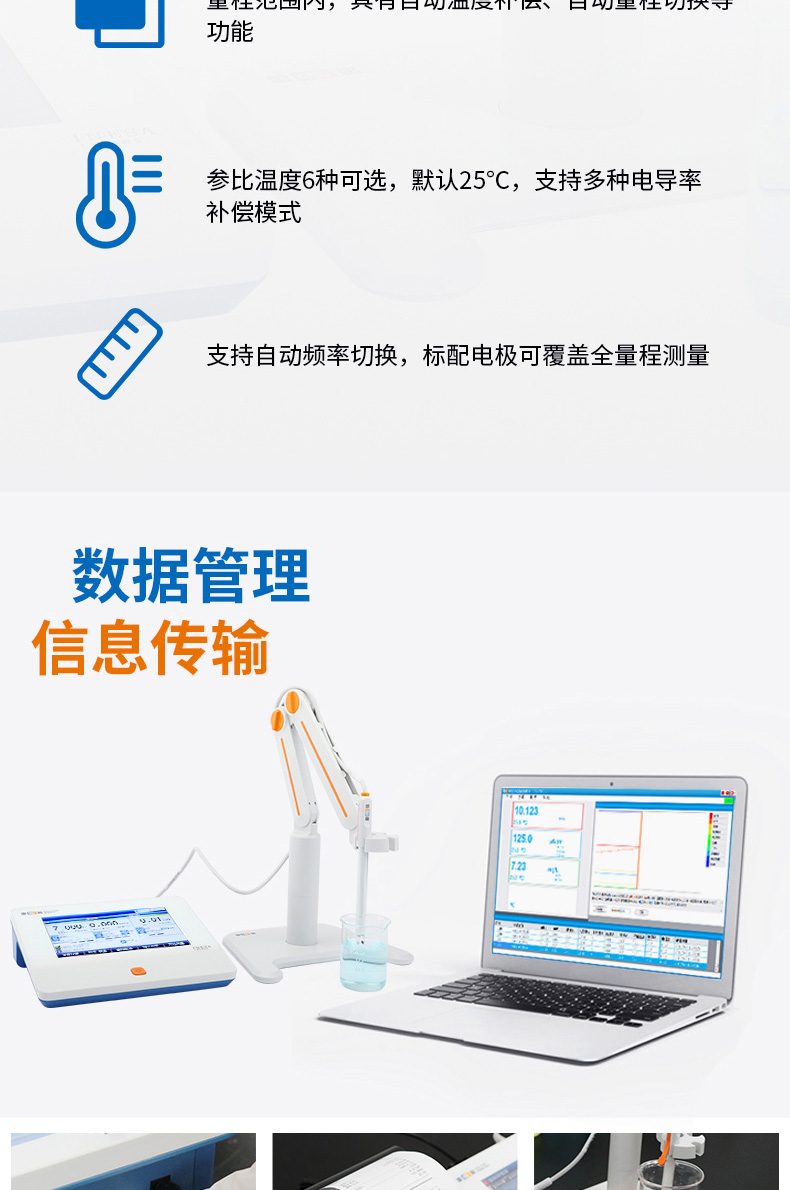

● With USB interface, it can be connected to PC through special communication software to realize data transmission.

● Support U disk reading and writing, support connecting to scanner gun

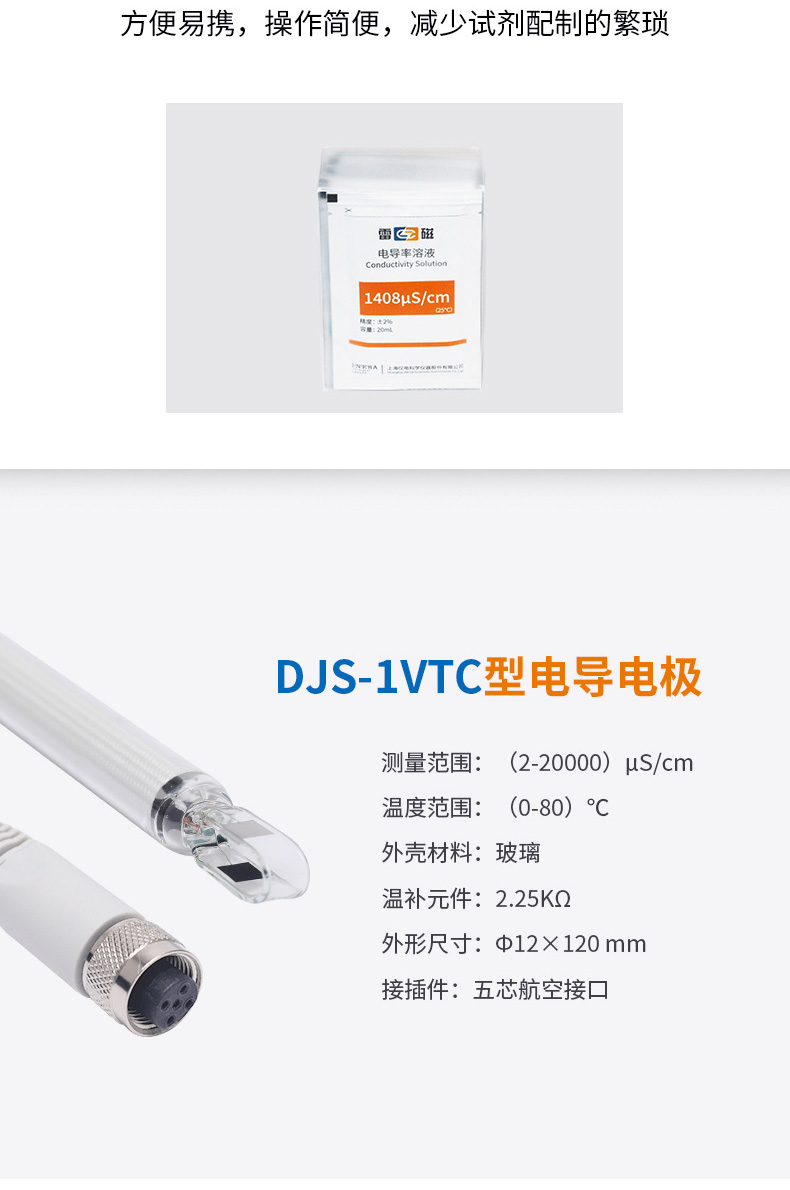

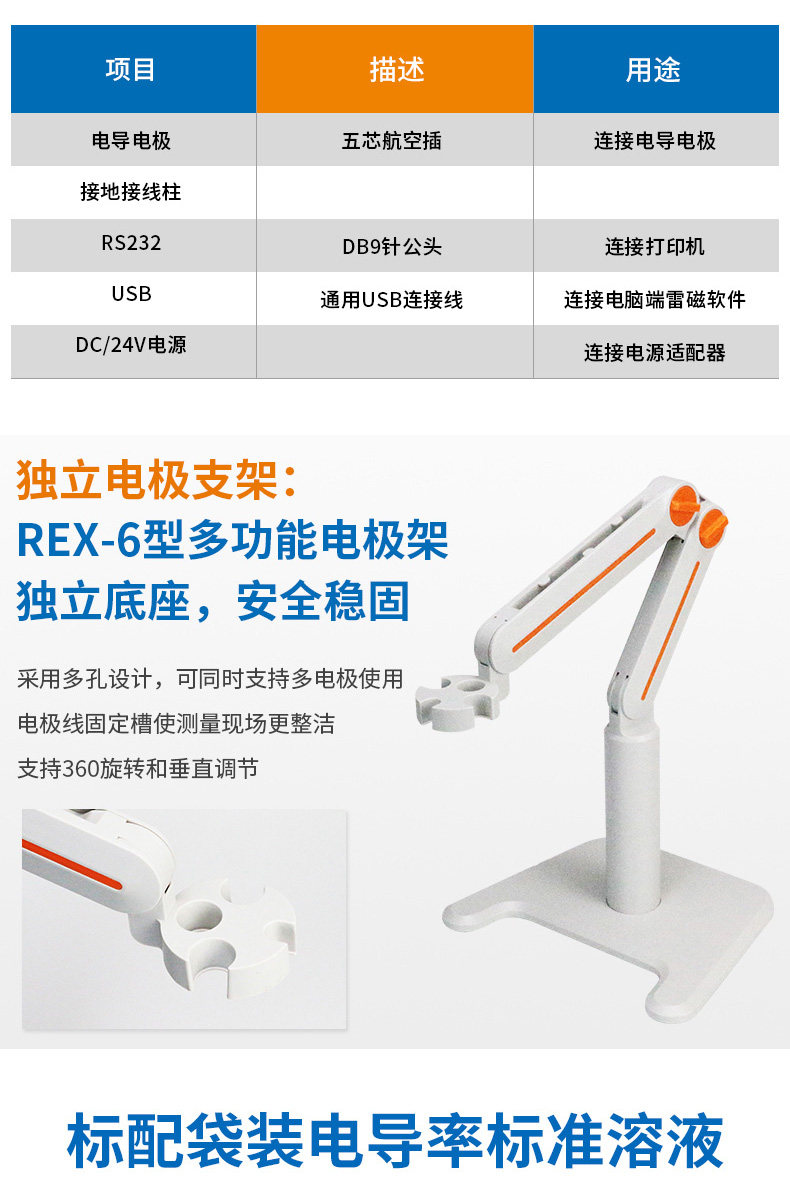

Packing list：Host X1, DJS-1VTC Conductivity detector electrode X1, conductivity solution 1408μs/cm (1 * 10) X1, REX-6 multifunctional electrode holder X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
