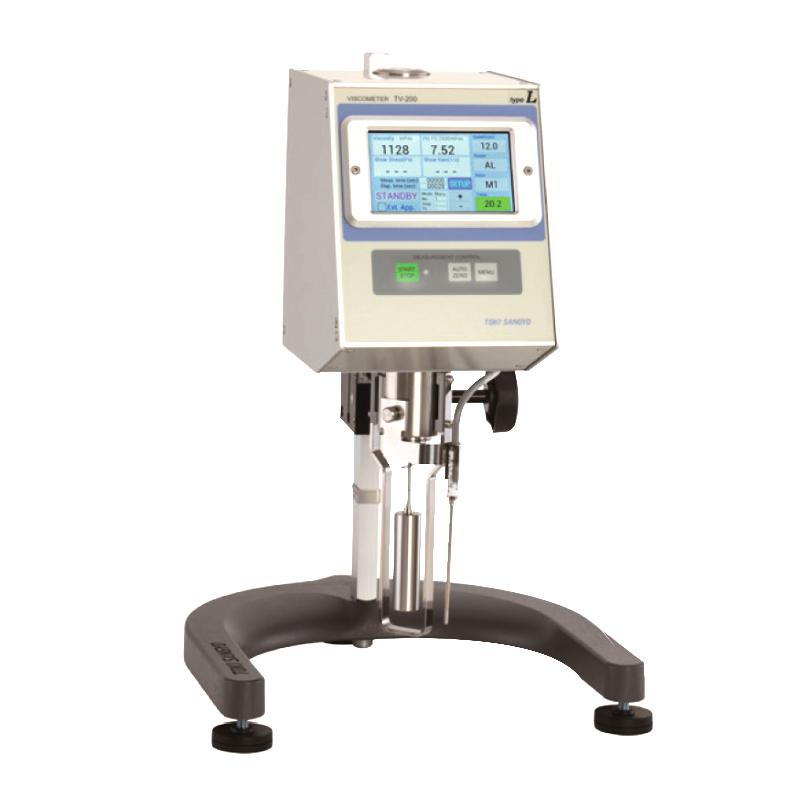

TOKYO TV-200BH third gear range Digital Rotational Viscometer 100~320000000cp

SE
H/R/U three-speed range, touch screen operation, viscosity range 100~320000000mPa · s, servo motor, automatic range selection, program control.
Model：
Contact
Details SPEC CAT
Similar products

TOKI TV-200BH ViscometerSPEC

TOKI TV-200BH ViscometerDetails

TOKI TV-200BH ViscometerPacking list

SKU
NB039066
Display mode
digital explicit
Measurement range
100~320000000mPa·s
Rotor speed
0.1~100rpm
Reproducibility
±0.2%F.S
Measurement Accuracy
±1%F.S
measurement mode
Manual, automatic stop time, automatic viscosity stop mode, programming mode (up to 40 segments)
Measurement Mode Storage
10 of the above measurement modes
Measuring unit
%/mPa·s/Pa·s/kPa·s/ (真 つ cP/P)
Measuring temperature
10~60℃
input and output model
USB A terminal (for connecting serial printer), USB B terminal (for connecting PC), for connecting temperature sensor (optional), external connection terminal (measurement start/end signal)
Temperature Resolution
0.1℃
Temperature Accuracy
±0.2℃
Zero Setting
Yes.
Range setting
Yes.
Environmental temperature
0~40℃
Environmental humidity
Relative Humidity less than 90% (no condensation)
Power
AC100~230v 50/60Hz (the limit load of the standard power cord is AC125V)
current consumption
15VA
Contact with liquid part
stainless steel
Host size
W300*334*436mm
Weight
About 6.5kg (including base bracket), base bracket about 2.4kg
third gear
H、R、U
Full scale torque
718.7μN·m、1437.4μN·m、5749.6μN·m
Segmented range of different gears
100~40000mPa·s、100~80000mPa·s、400~320000000mPa·s、100~320000000mPa·s
Rotation speed Control mode
Progressive growth of 0.1RPM, a total of 1001 segments
TV-200BH
Viscometer
H/R/U three-speed range, touch screen operation, viscosity range 100~320000000mPa · s, servo motor, automatic range selection, program control.
TOKYO TV-200BH third gear range Digital Rotational Viscometer 100~320000000cp Picture

Introduction

TV-200 viscometer adopts torque balance: servo technology to achieve multi-range measurement functions. Linearity and reproducibility of machine viscosity determination are guaranteed even within a wide measuring range. Has automatic range selection function. There is no need to worry about the measurement range of the sample. Thus effectively measuring viscosity.

Features

  • program functions;

  • Multi-range measurement; automatic range selection;

  • Data between multiple devices can be referenced;

  • 4.3-inch color touch screen can display more experimental data.

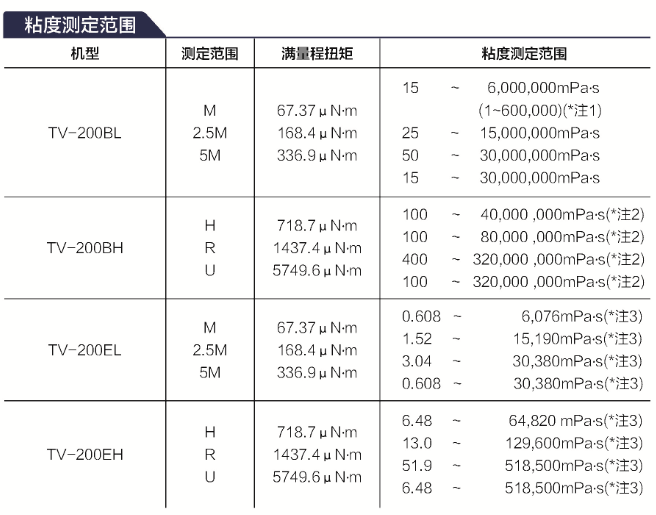

TV-200 series model parameter range

Toki Industrial TV-200BH viscometer details picture 1

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
Standard
