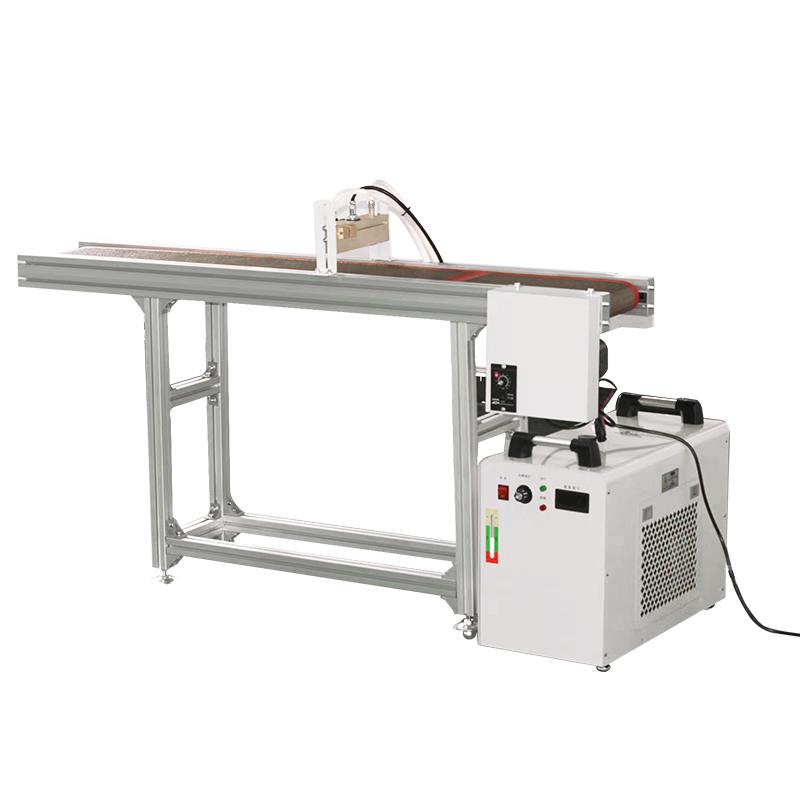

CHAOGU CG-GHL-700A LEDUV line curing machine, net width 300mm
SE
CG-GHL-700A
ChaoGu CG-GHL-700A LEDUV assembly lineSPEC
ChaoGu CG-GHL-700A LEDUV assembly lineDetails
ChaoGu CG-GHL-700A LEDUV assembly linePacking list
- SKU
- NB039080
- length
- 1500Mm (can be customized)
- Network bandwidth
- 300Mm (can be customized)
- Curing Oven Appearance
- Black/Self (can be customized upon request)
- Mesh belt material
- Teflon/PVC
- Maximum speed
- 6-8 meters/min
- roller
- Galvanized roller surface knurling
- Sport mode
- forward rotation
- Input power
- AC220V 50/60Hz
- Ambient Operating Temperature
- 0-40℃
- relative temperature
- 20-90%
- Curing Oven Weight
- 45KG (subject to actual situation)
- Appearance of LEDUV curing lamp
- rose gold
- Lamp holder Dimensions
- 295*50*60mm
- Chill down
- water cooling
- Chip brand
- Seoul
- control mode
- 24v
- wavelength
- 395nm
- power
- 700w
- luminous size
- 280*30mm
- optical power
- 12W/cm2
- lifespan
- 20000H
- irradiation distance
- 30~50mm
- power control
- 0% -100% adjustable
- input Voltage
- 220V
- Appearance of water cooler
- black and white
- Water cooler Dimensions
- 550*280*430mm
- compressor
- Yes
- Temperature range
- Adjust freely within the range of 5-35 ℃
- power
- 200W
- head
- 28m
- Volume
- 13.5L
- circulating water flow
- 8L-35L/min
- Whole machine noise
- ≤45dB(A)
- Machine Weight
- 40KG
- input Voltage
- 220v
- energy
- 3000-5000mJ/cm2
Introduction
It adopts high-intensity LED UV light source and water cooling for heat dissipation. It is suitable for curing UV ink, UV varnish, UV glue, etc.
LEDUV assembly line/1500mm long/Network width 300mm/Working surface 700mm off the ground/Light-emitting surface size 280*30mm(L*W)/395nm/ Light intensity adjustable/Speed ââ0-6 meters adjustable .
Overall machine functional configuration
The UV lamp can be started and stopped at any time.
The water cooler has protection and alarm functions such as over-temperature and no water.
Roller: The surface of the galvanized roller is knurled to ensure smooth transportation; the roller has an adjustable function.
Machine cooling method: water cooling;
Machine material: profile construction;
Appearance of the whole machine: computer gray ;
Power wiring: single-phase three-wire 220VAC 50HZ .
Product Structure
Water cooler structure diagram
Light source installation diagram
