3NH TS8450 Portable Desktop Colorimeter φ 18mm Caliber

SE
Measurement report, 45/0 Optical inspection structure, φ 18mm diameter, Repeatability Delta E * ab < 0.02, inter-station difference Delta E * ab < 0.15, suitable for traffic signs, markings, reflective film luminance factor, chromaticity coordinate measurement, including GB 2893, GB/T18833 standard color.
Certificate
Contact
Details SPEC Con CAT OI
Similar products

3NH TS8450（Φ18mm） Desktop ColorimeterSPEC

3NH TS8450（Φ18mm） Desktop ColorimeterDetails

3NH TS8450（Φ18mm） Desktop ColorimeterPacking list

SKU
NB039088
Lighting method
45/0 (45 annular uniform illumination 0 ° reception); conforms to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Integrating sphere size
F40mm
lighting source
Light spectrum LED light source, UV light source
Spectroscopic method
Plane grating spectroscopy
sensor
256-Pixel dual array CMOS image sensor
Measurement Wavelength range
400~700nm
wavelength spacing
10nm
Half Bandwidth
10nm
Reflectance Measurement Range
0~200%
Measurement caliber
定制单一口径：LAV:Φ18mm/Φ20mm;MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
Light-containing method
45/0
Color space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color difference formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other chromaticity indicators
WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Isochromatic Spectrum Index Mt, lightfastmess, color fastness, force, coverage, 555 hue classification
Viewing Angle
2°/10°
Observation light source
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
display mode
Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
Measurement time
About 1.8s
Sexual repeability
Chromatic value: MAV/SCI, ΔE * ab within 0.02 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
Inter-station difference
ΔE * from < 0.15 (MAV / SCI)
Measurement method
Single measurement, average measurement (2~ 99 times)
Positioning method
/
size
370*240*260mm
Weight
About 7.8kg
Power Supply
DC 24V, 3A power adapter Power
Lighting source life
5 years more than 3 million measurements
Display
TFT true color 7.0inch, capacitive touch screen
Data Interface
USB, Bluetooth ® 5.0, trigger switch interface
Store data
1000 master standards and 30,000 samples
Operating language
Simplified Chinese, English, Traditional Chinese
Operating temperature range
0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
Storage temperature range
-20~50 ℃, 0~85% RH (no condensation)
Optional accessories
Micro printer, foot switch, swirl/spin stand
TS8450（Φ18mm）
Desktop Colorimeter
Measurement report, 45/0 Optical inspection structure, φ 18mm diameter, Repeatability Delta E * ab < 0.02, inter-station difference Delta E * ab < 0.15, suitable for traffic signs, markings, reflective film luminance factor, chromaticity coordinate measurement, including GB 2893, GB/T18833 standard color.

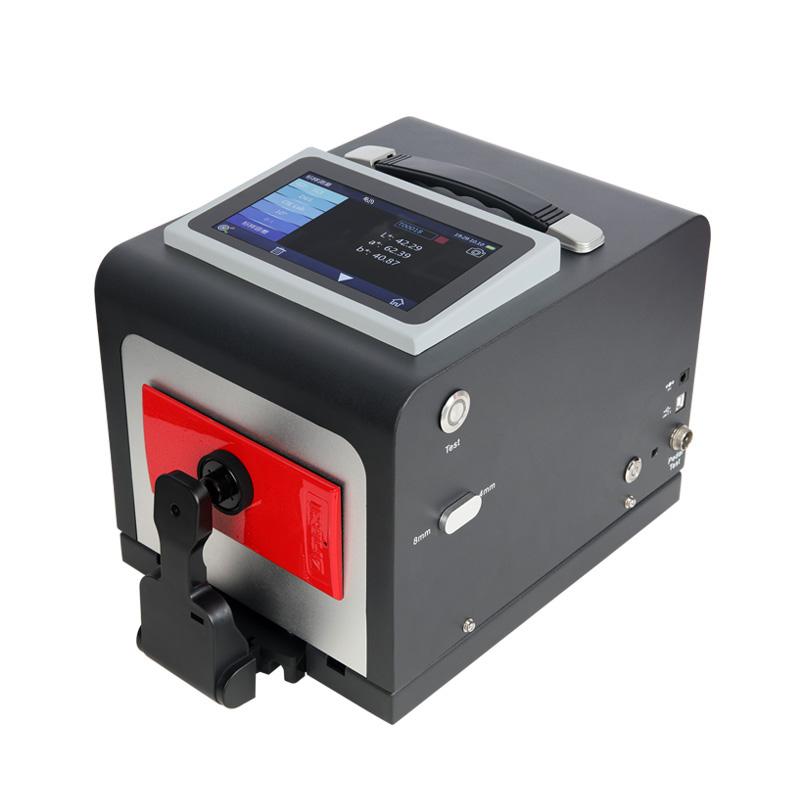

3NH TS8450 Portable Desktop Colorimeter φ 18mm Caliber Picture

product description

TS8450 is a portable desktop Spectrophotometer with a 45/0 optical structure. It adopts a 256-pixel dual-array CMOS image sensor and an imported whiteboard. It also takes into account the measurement speed and the convenience of operation. The repeatability of the instrument ΔE*ab is easily controlled within 0.02, and the inter-stage difference ΔE*ab is controlled within 0.15. The measurement is accurate and can be used for accurate analysis and transmission of colors in the laboratory. TS8450 portable desktop Spectrophotometer is suitable for measuring the luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. It includes GB 2893 and GB/T 18833 standard colors, and can manually customize the tolerance of polygonal rectangles.

3nh TS8450 (Φ18mm) Desktop Spectrophotometer Details Figure 1

Applications

TS8450 Portable Desktop Spectrophotometer is equipped with a single customized Φ18/8/4mm measuring aperture, which is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescent sample measurement. In addition, the TS8450 portable desktop Spectrophotometer is suitable for measuring the luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. It includes GB 2893 and GB/T 18833 standard colors, and can manually customize the tolerance of polygonal rectangles.

Advantages

High hardware configuration: 7 o'clock TFT pure color capacitive touch screen; Bluetooth 5.0; planar grating light splitting;

Stable measurement: 256-pixel dual-array CMOS image sensor;

Color transfer : measure the reflection and transmission spectrum of the sample, the Lab data is accurate, and can be used for color matching and color transfer;

Measurement accuracy : temperature monitoring and compensation, built-in temperature sensor, monitoring and compensation of the test environment, to ensure accurate measurement results;

Product Structure
