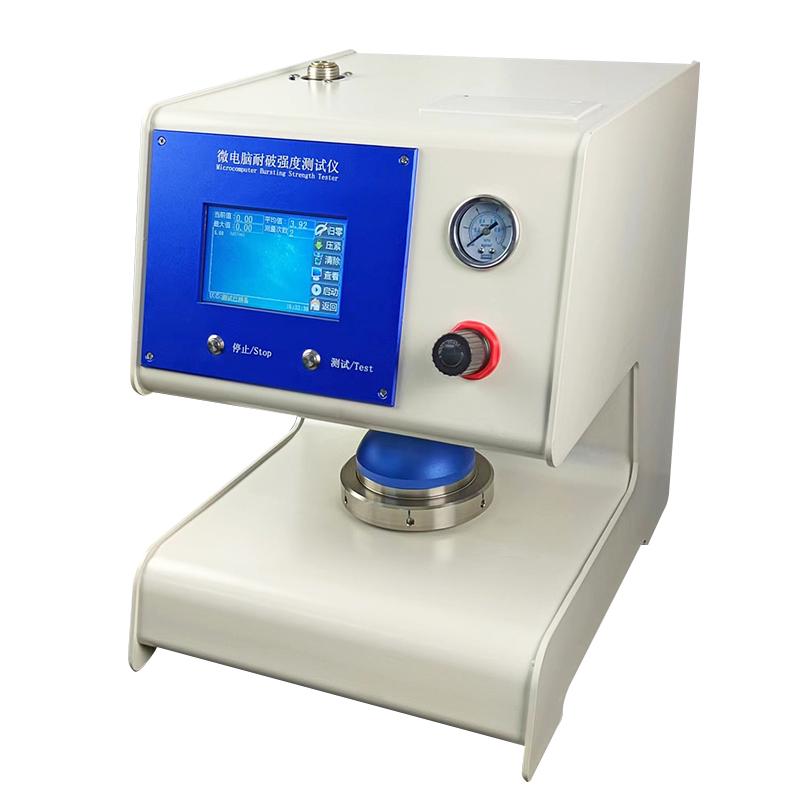

Essence LD - NP-CMP Cardboard Burst Strength Tester, Vertical Touch Screen Version
SE
LD–NP-CMP
JingHuaYiQi LD–NP-CMP Burst strength TesterSPEC

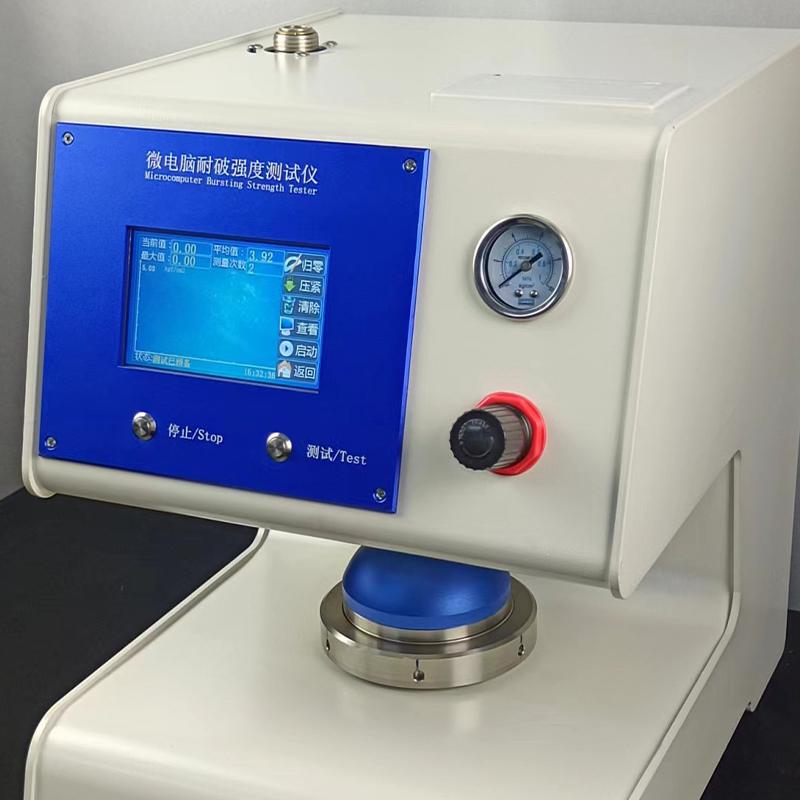

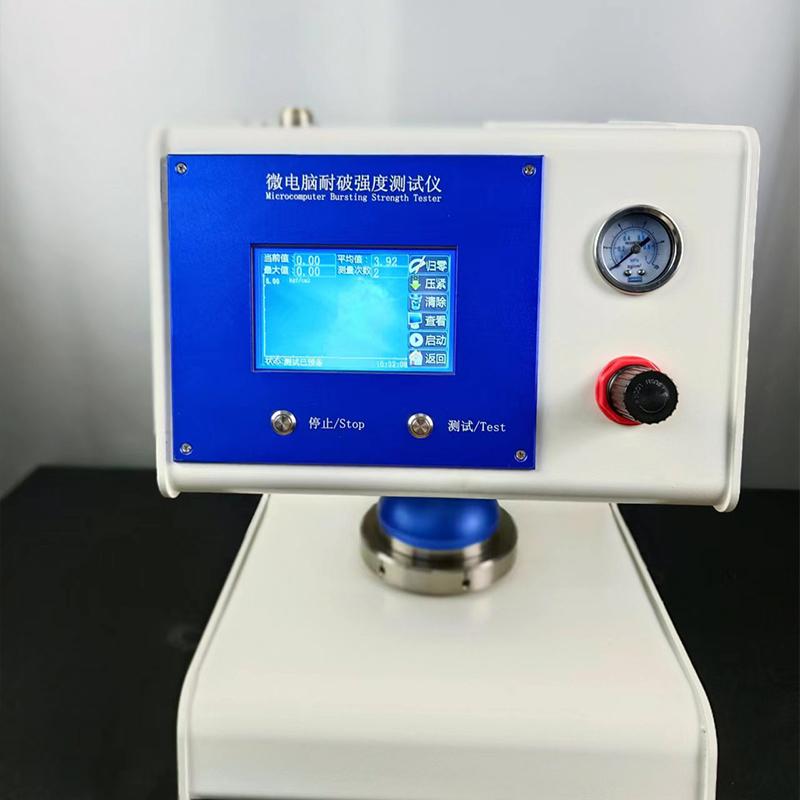

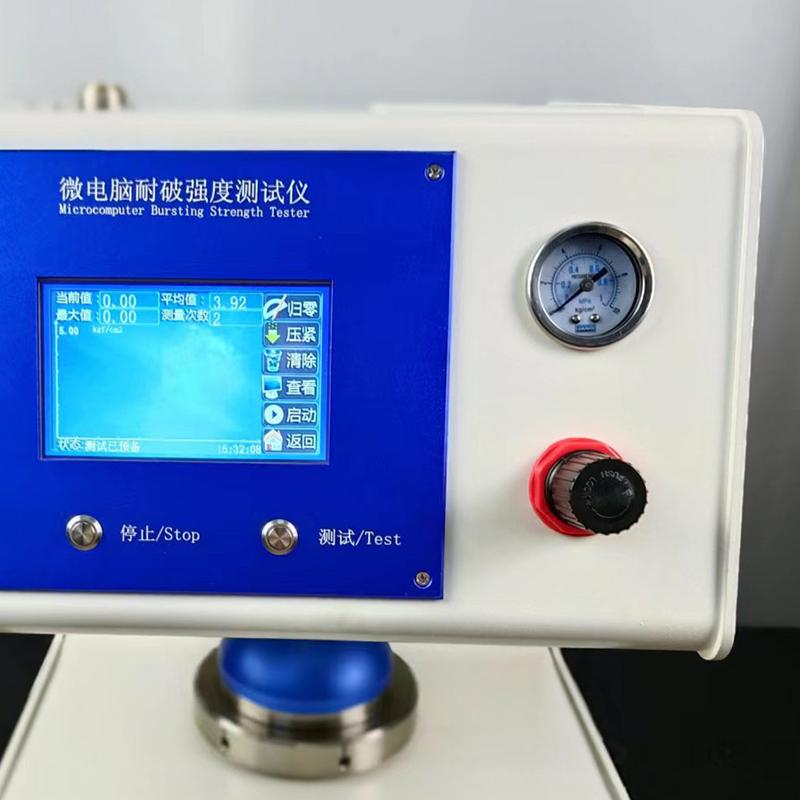

JingHuaYiQi LD–NP-CMP Burst strength TesterDetails
JingHuaYiQi LD–NP-CMP Burst strength TesterPacking list
- SKU
- NB039733
- Power
- AC 220V±10% 2A 50Hz
- Error of indication
- ±0.5%
- Indication of variability
- ≤0.5%
- resolution
- 0.1kPa
- Measuring range
- 250 ~ 6000kPa
- Oil delivery speed
- 170±5mL/min
- Clamping Force
- ≤ 1200Kpa
- Air compressor
- Pressure (0.6~ 0.7) MPa; Displacement (0.02~ 0.3) m3/min (non-standard)
- System tightness
- 1Min pressure drop < 10% FS
- Human Machine Interface

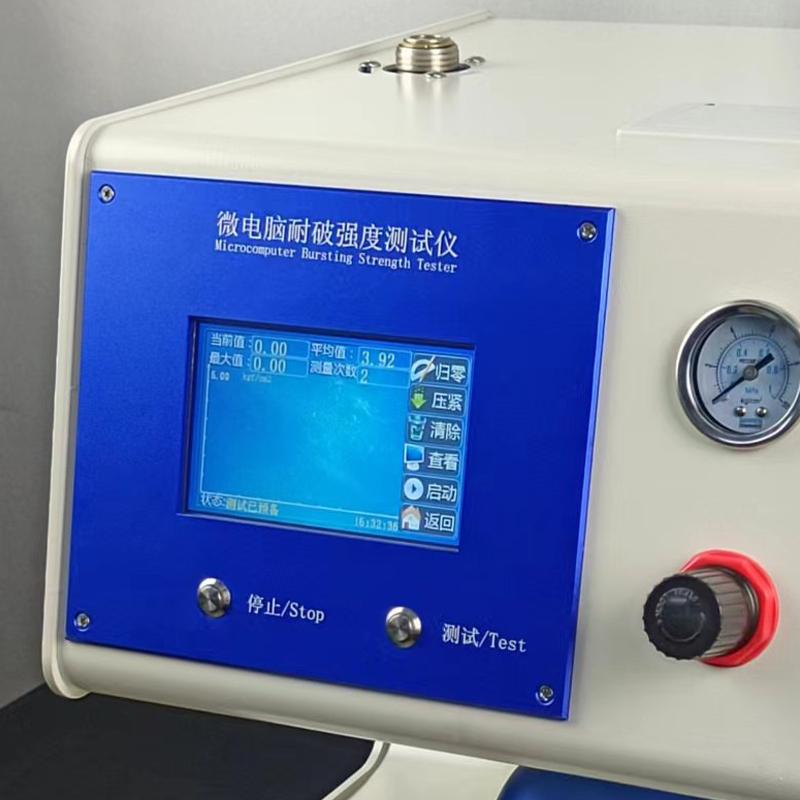

- 5-Inch color large touch screen, can switch between Chinese and English
- printout
- Modular integrated thermal printer
- Communication interface
- WAN port (optional)/USB (optional)
- Operating Environment
- Indoor temperature (20 ± 10) ℃; Relative Humidity < 85%
The cardboard bursting strength Tester is designed according to the internationally accepted Mullen method. It is a special instrument for testing the bursting strength of various papers. Its performance parameters and technical indicators comply with ISO2758 "Paper - Determination of Bursting Strength" And GB454 "Determination of bursting strength of paper" and other standards, it is suitable for the bursting strength test of all kinds of paper, and can also be used for non-paper materials such as silk and cotton cloth.
The paper burst Tester has the functions of testing, converting, adjusting, displaying, memorizing, printing and other parameters included in the standard. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable in performance.
Features
It has the function of explosion-proof membrane to reduce misoperation; over-range alarm function to protect precision sensors; bilingual operation menu in Chinese and English (Chinese-English), and can be switched at any time; the function of protective cover is added. Using high-speed ARM processor, high degree of automation, fast data collection, fully automatic measurement, intelligent judgment function, safe and reliable; using 32-bit high-precision AD converter (resolution up to 1 / 10,000,000) and high-precision, stable performance pressure The sensor ensures the rapidity and accuracy of instrument force value data collection; it can display pressure and deformation curves, and real-time display of pressure; it adopts a modular integrated thermal printer, which has fast printing speed and convenient paper replacement; a variety of unit options, Can switch freely between kPa, kgf/cm2, lbf/in2;
Standards
GB/T454 "Determination of bursting strength of paper
ISO2758 "Paper - Determination of bursting strength"
TAPPTI810
