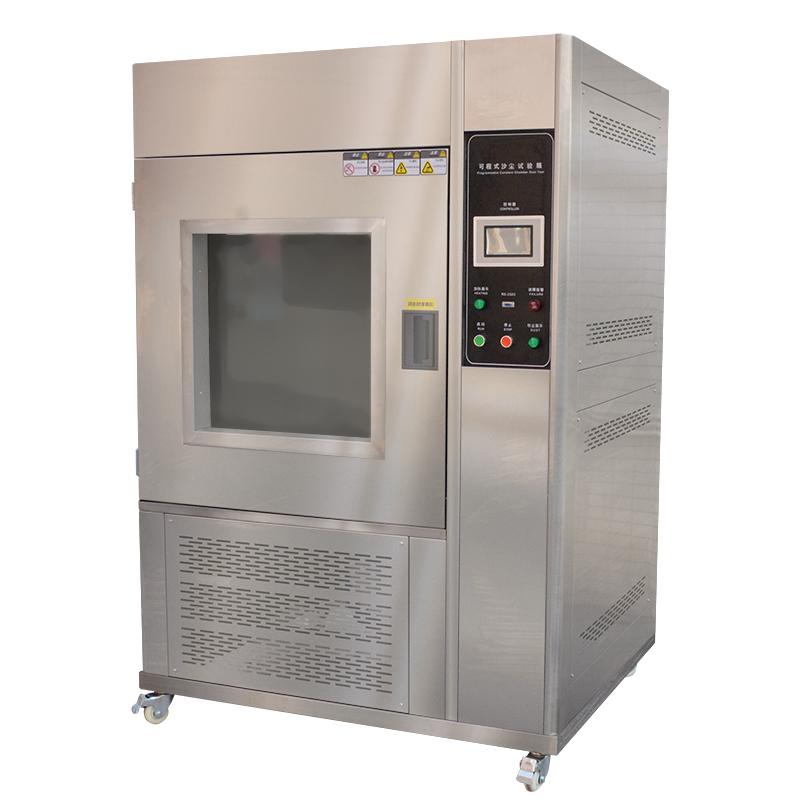

CHINA NBC-SC-216 Dust Test Chamber
SE
NBC-SC-216
HuiTai NBC-SC-216 Dust Test ChamberSPEC
HuiTai NBC-SC-216 Dust Test ChamberDetails
HuiTai NBC-SC-216 Dust Test ChamberPacking list
- SKU
- NB039834

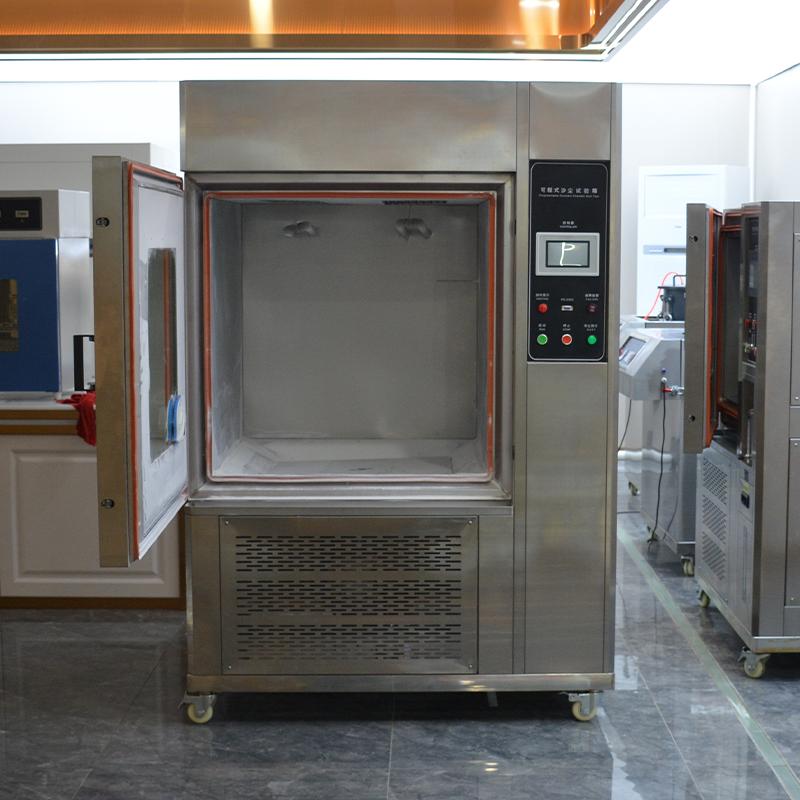

- Liner size
- 600*600*600mm
- Liner material
- High grade stainless steel plate SUS304
- Standards
- GB4208-93
- Outer box size
- 1750*1250*1450mm
- Enclosure Material
- High grade stainless steel plate SUS304

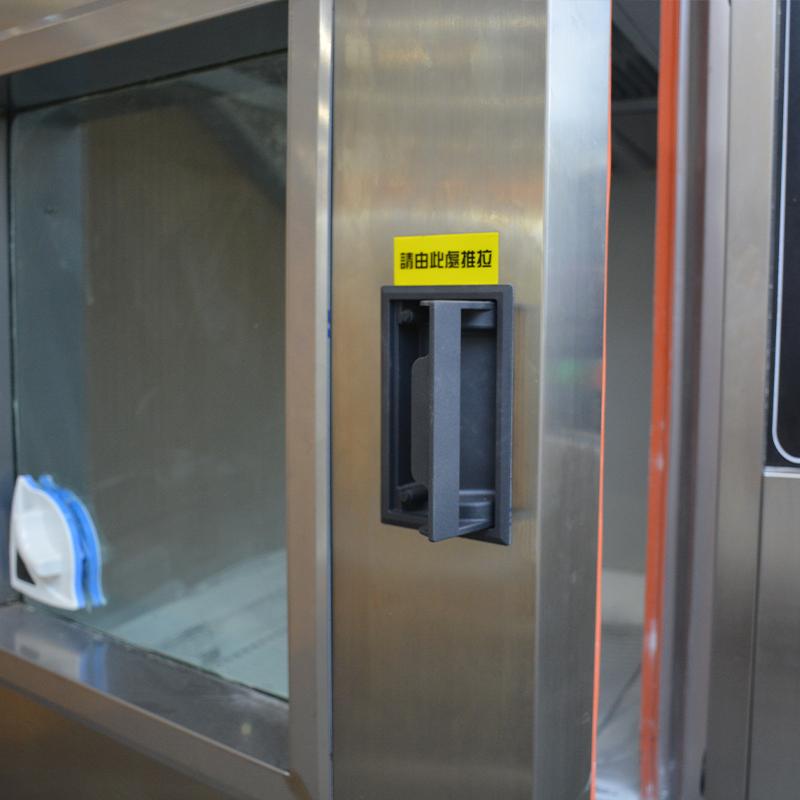

- Box door
- Large Tempered Glass Observation Window

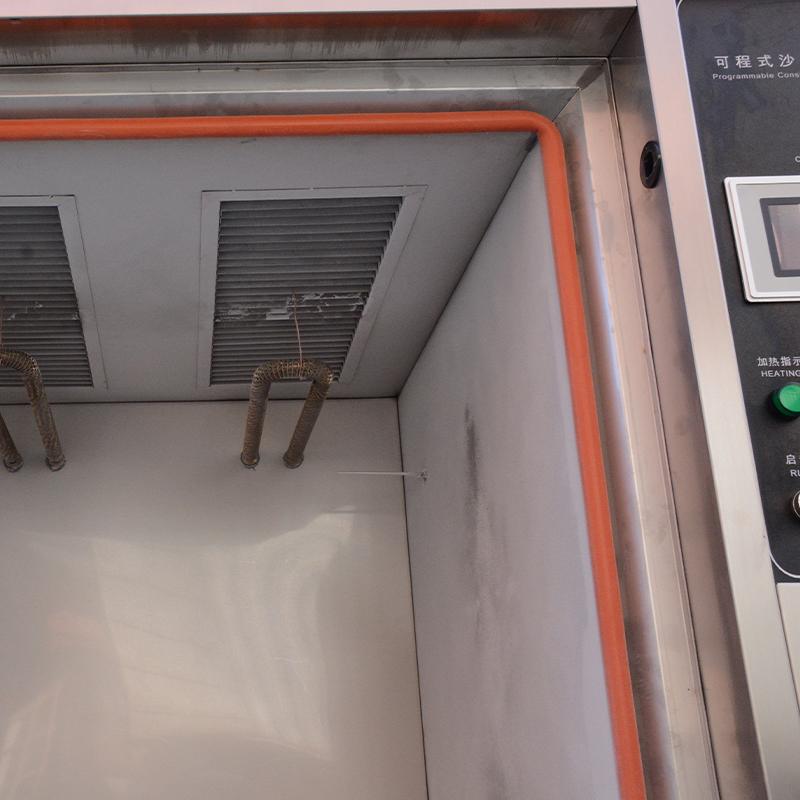

- Air duct system
- Unique air duct design ensures that the box generates non-layered vertical circulating airflow
- Box temperature
- RT+10~60°C
- The Relative Humidity in the box
- 45%~75%RH
- Nominal net diameter
- 50um
- Nominal spacing between lines
- Not more than 70um
- Amount of dust in the box
- 2Kg/m
- Airflow velocity
- ≤2m/s
- Talc powder dosage
- 2kg~4kg/ m3
- Dust blowing time
- 0~9999.9h can be set

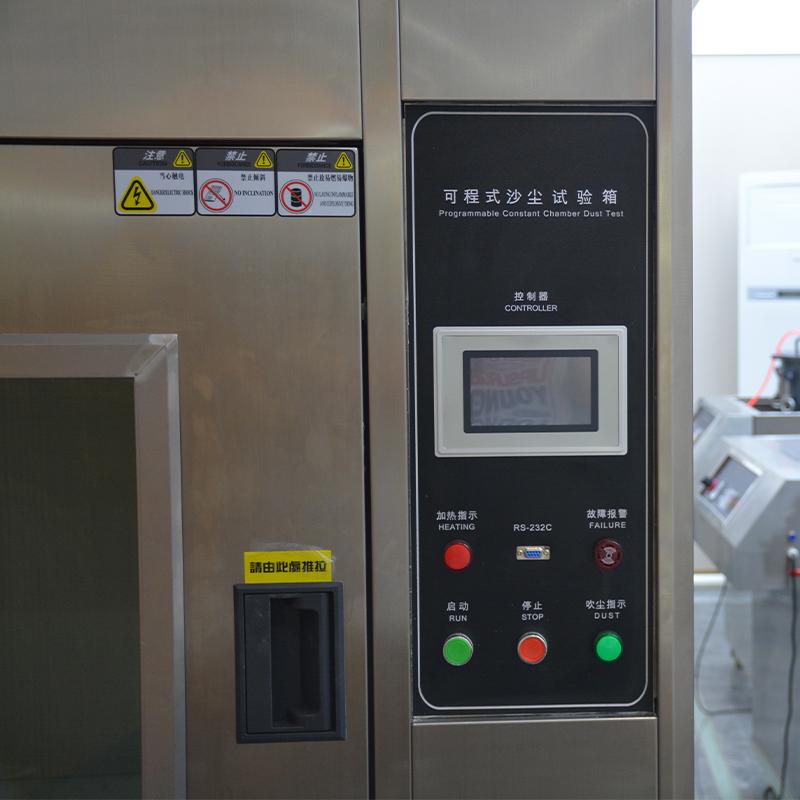

- Control system
- Imported high-precision PID digital display instrument
- Safety protection device
- Instrument over-temperature protection function, Power phase loss protection, leakage circuit breaker protector
- Power
- AC220V 50Hz
- air temperature
- 0～35℃
- Relative Humidity
- 25%～75%RH
- Input power
- About 2KW
Introduction
The test box adopts artificially simulated dust environment to test the dustproof ability of the tested product. The specific requirements and qualification criteria should be in accordance with GB4208-93 (IEC60529-2001) or product-related standards.
product application
This test box is mainly used for electronic and electrical products to evaluate whether the shell and seal can guarantee the good working performance of the equipment and components during the sand and dust test.
Executive standard
La and Lb in GB2423.37-89; GB 4208-98; IEC60529.
The dustproof Test Chamber is designed and manufactured in accordance with GB4208-93 (equivalent to IEC60529-2001) "Enclosure Protection Level (IP Code)", and is suitable for electrical products with the first characteristic number of 5 and 6 (IPX5 and IPX6). dust test.
Another note: This test box can meet the requirements of GB2423, GB4706, GB4208, DIN medium and small household appliances, low-Voltage electrical appliances, automobiles, and motorcycle parts shell protection level test requirements. This device cannot meet the sand dust test with wind source in GJB150.
- 1GB/T 10485-2007《Road vehicles - Lighting and light-signalling devices - Environmental endurance》
- 2GB/T 4208-2017《Degrees of protection provide by enclosure (IP code)》
- 3GB 4942.1-1985《Classification of degrees of prot ecti on provided by enclosures for rot ating machines》
- 4GB/T 2423.37-2006《Environmental testing for electric and electronic products - Part 2: Test methods - Test L：Dust and sand》
