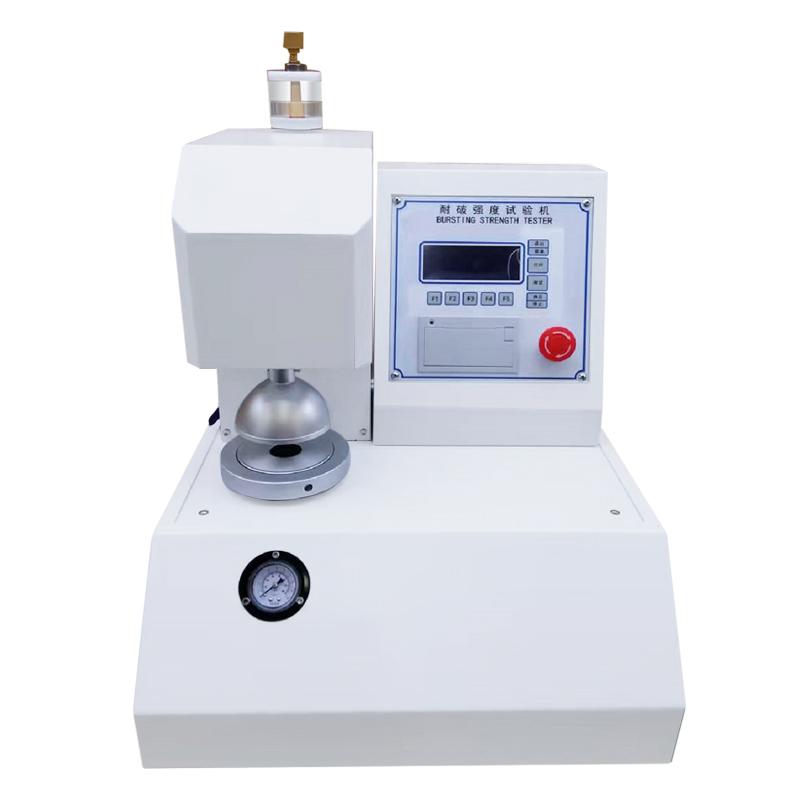

CHINA Automatic Burst Strength Tester NBC-NPD

SE
Pneumatic clamping of specimens, fully automatic operation, with micro-printing, suitable for the determination of bursting resistance of Cardboard, Corrugated Cardboard and Miscellaneous sheet.
Model：
Contact
Details SPEC VIDEO CAT
Similar products

HuiTai NBC-NPD Automatic bursting Strength TesterSPEC

HuiTai NBC-NPD Automatic bursting Strength TesterDetails

HuiTai NBC-NPD Automatic bursting Strength TesterPacking list

SKU
NB039836
Clamping Force
> 690Kpa
induction method
pressure converter
Savings Results
With printing function, 10 sets of data can be printed to automatically calculate the average value
Display
High definition LCD display, digital A/D value advance rate 100 times/S, high test Accuracy
unit conversion
Kgf/cm2, Lb/in2, Kpa (with unit switching function)
Measuring range
250 ~ 6000kPa
resolution
1kPa
Error of indication
≤±1%FS
Indication of variability
Better than ± 1%
Oil delivery speed
170±10mL/min
Film resistance
Raise 10mm, 170kPa~ 220kPa; Raise 18mm, 250kPa~ 350kPa
Clamp ring material
stainless steel
Upper clamp ring aperture
F (31.5 ± 0.05) mm
Lower clamp ring aperture
F (31.5 ± 0.05) mm
Upper chuck diameter
95mm
Lower chuck diameter
135mm
hydraulic oil
silicone oil
Volume
430*530*520mm
Weight
About 70Kg
Power
1∮,AC220V
Standard configuration
5 pieces of rubber film, 1 wrench, 10 correction pieces, and 1 bottle of silicone oil.
NBC-NPD
Automatic bursting Strength Tester
Pneumatic clamping of specimens, fully automatic operation, with micro-printing, suitable for the determination of bursting resistance of Cardboard, Corrugated Cardboard and Miscellaneous sheet.

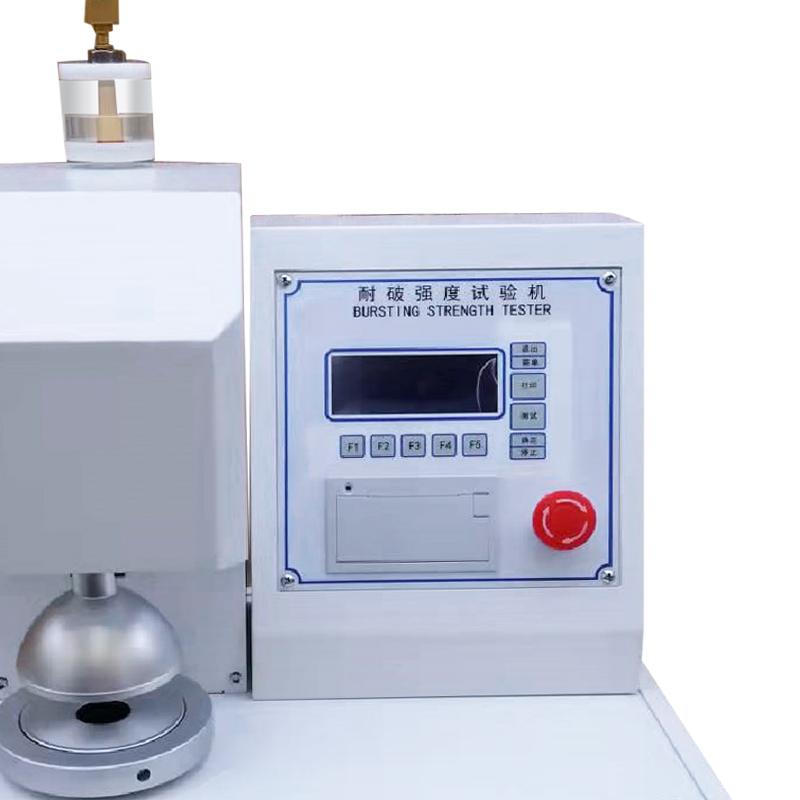

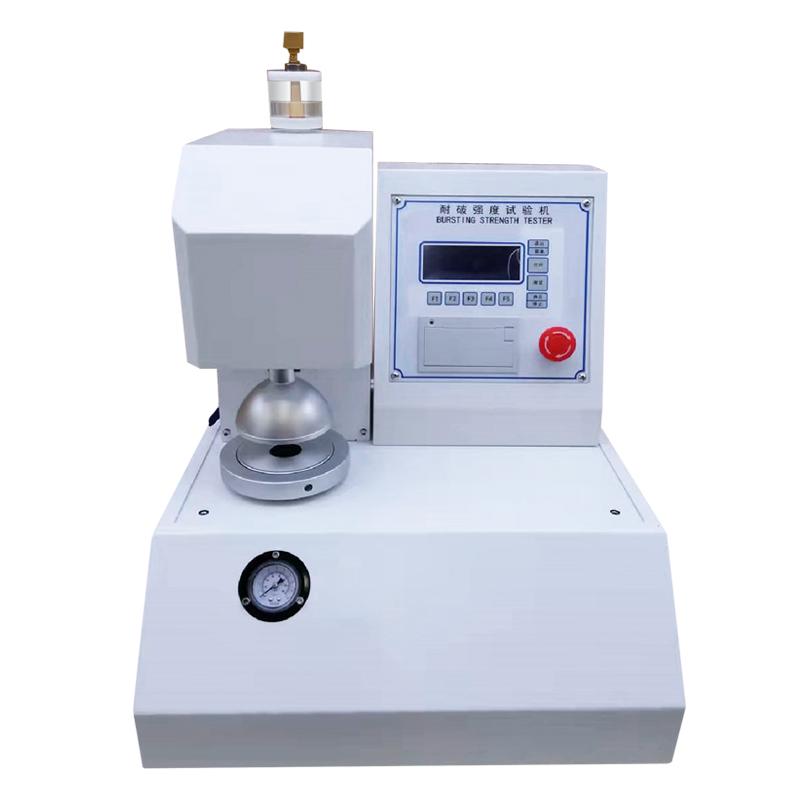

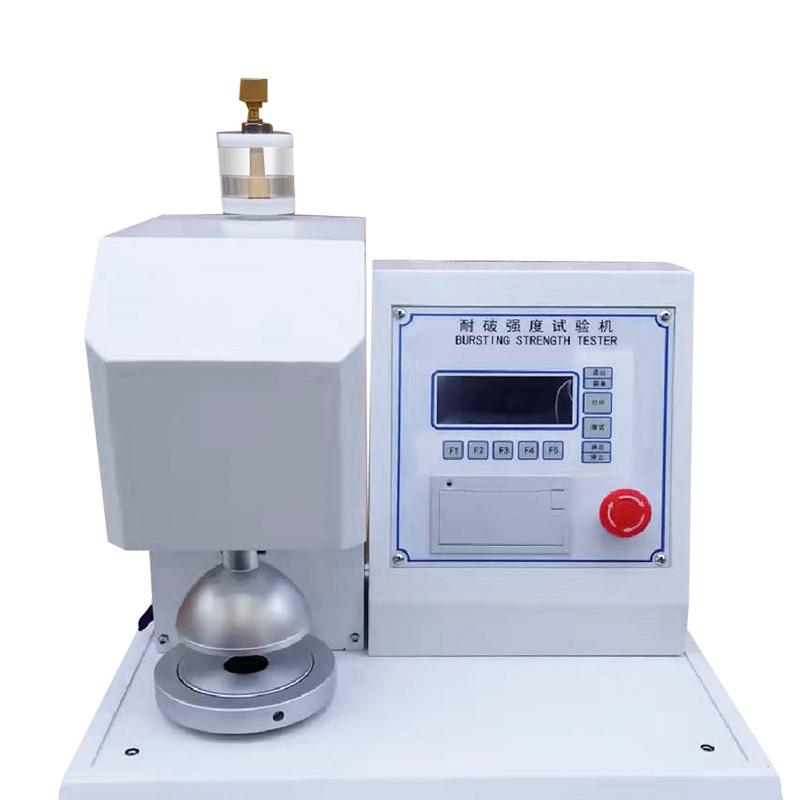

CHINA Automatic Burst Strength Tester NBC-NPD Picture

Introduction

Conforms to the relevant standards, adopts pneumatic clamping of the sample, liquid crystal display, and is suitable for the determination of the bursting strength of cardboard, corrugated cardboard and other sheet materials.

Standards

ISO 2759: Determination of bursting strength of paperboard;

GB/T 1539: Determination of bursting strength of cardboard;

QB/T 1057: Paper and cardboard Burst Tester.

Advantages

1. After the cardboard is crushed, it will automatically stop and return to the initial position;

2. Fully automatic one-button operation;

3. Can store 50 sets of data at the same time;

4. Equipped with micro printing, which can print test results;

5. Equipped with an emergency stop button to improve operational safety;

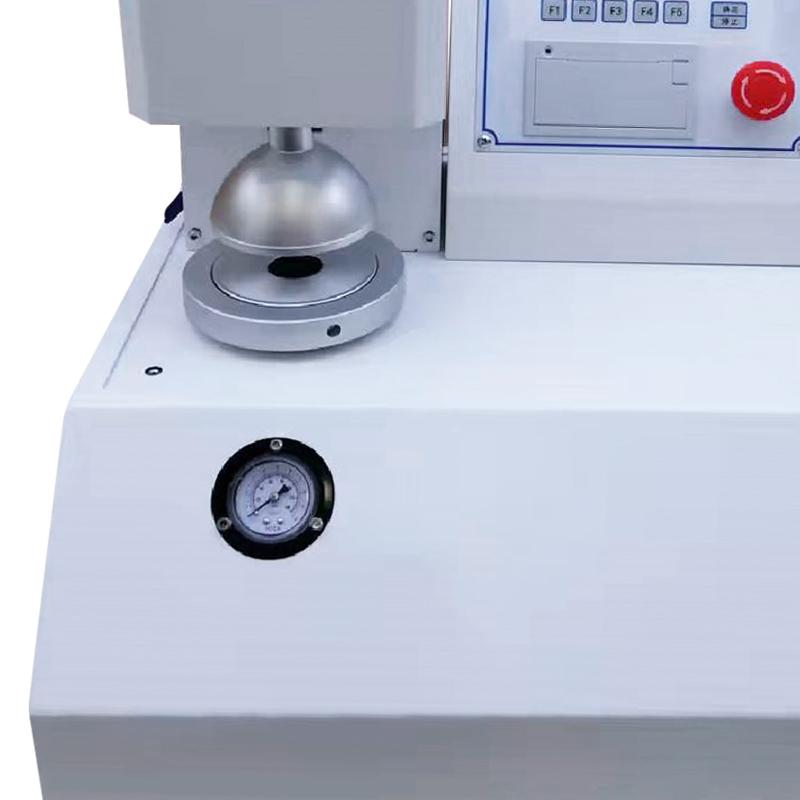

6. Equipped with an air pressure gauge to monitor the pressure at any time;

7. High-definition LCD display.

8. Change the traditional glycerin + water method and use silicone oil instead, the machine is not easy to rust and prolongs the life of the machine.
