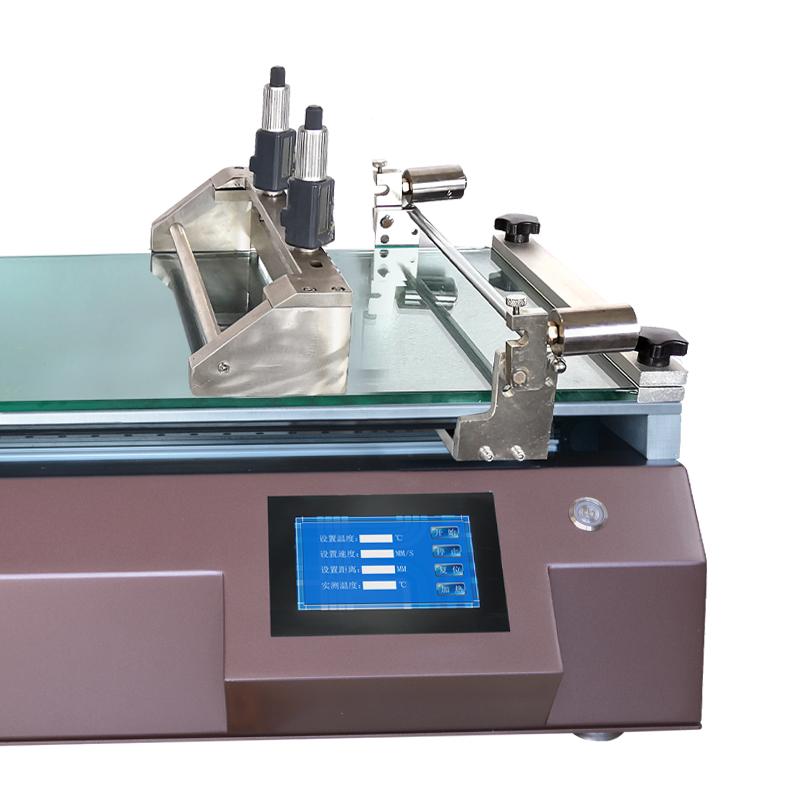

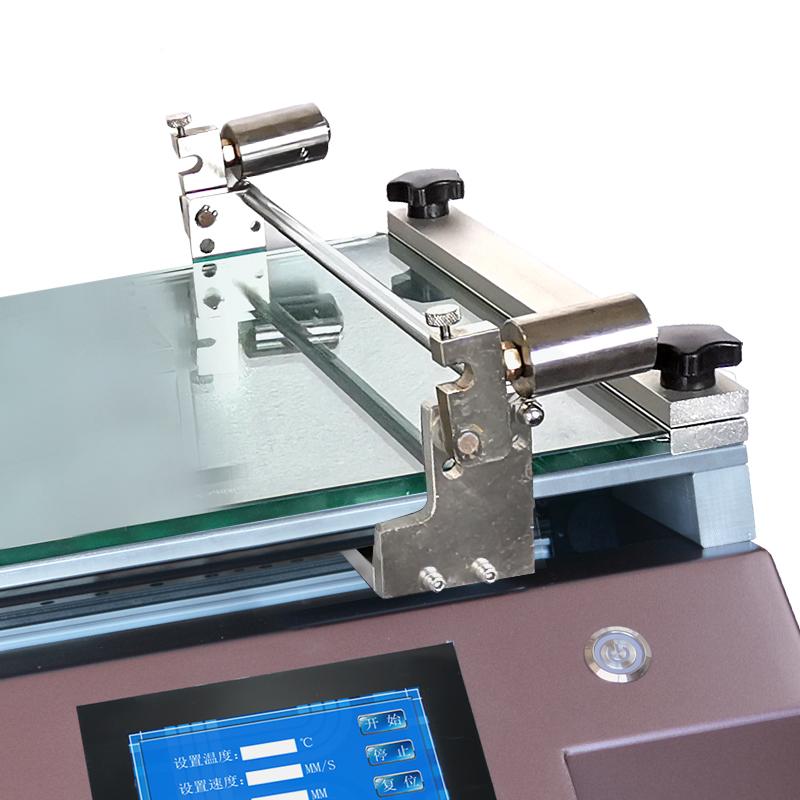

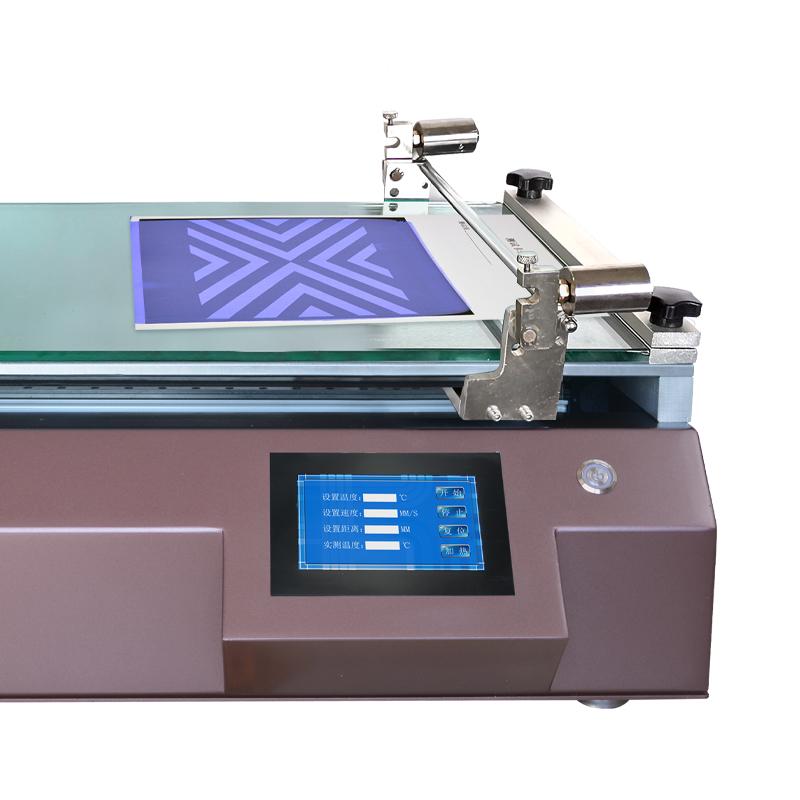

China Small Lab Film Applicator Portable Drawdown blade + bar coating machine TBJ-GD-GCXB
SE
TBJ-GD-GCXB
-
HUINUO TM3000 Automatic Film Applicator Mini with Wire rod and Adjustable drawdown blade$ 2403.00SE -
HUINUO intelligent TM3000A metering rod & drawdown blade Automatic Film Applicator Aluminum alloy baseplate$ 2869.00SE -
China Drawdown blade bar Experimental Film Applicator TBJ-B2-DJ3 Automatic Film Applicator$ 2480.00SE -
HUINUO intelligent TM3000pro laboratory wire rod drawdown blade coater Film Coater$ 2713.00SE -
Domestic TBJ-B2-DJ17 wire rod scraper type coating machine, small film scraping machine, coating format 900 * 1300mm$ 7533.00SE
zy TBJ-GD-GCXB Automatic Film ApplicatorSPEC
zy TBJ-GD-GCXB Automatic Film ApplicatorDetails
zy TBJ-GD-GCXB Automatic Film ApplicatorPacking list
- SKU
- NB039857
- Coating method
- Bar + adjustable drawdown blade
- Drawdown blade type
- Split drawdown blade
- Drawdown blade thickness range
- 0~5000μm
- Drawdown blade Accuracy
- ±10μm
- Drawdown blade material
- aluminum alloy
- Drawdown blade size
- 214*76*100mm
- Net Weight of drawdown blade
- 500g
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300 * 400Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-400mm
- Drawdown blade application width
- 200mm
- Mayer Rod Thickness Range
- 1-571.5 μm (Spreader thickness according to bar model)
- Mayer Rod Accuracy
- ±0.001mm
- Host Power Supply
- 220V 50HZ 1700W
- Dimension
- 626*410*520mm
- Net Weight
- 55KG
- speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Substrate clamping method
- Mechanical fixture
- Control mode
- Touch screen control
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-B experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted manually are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.
