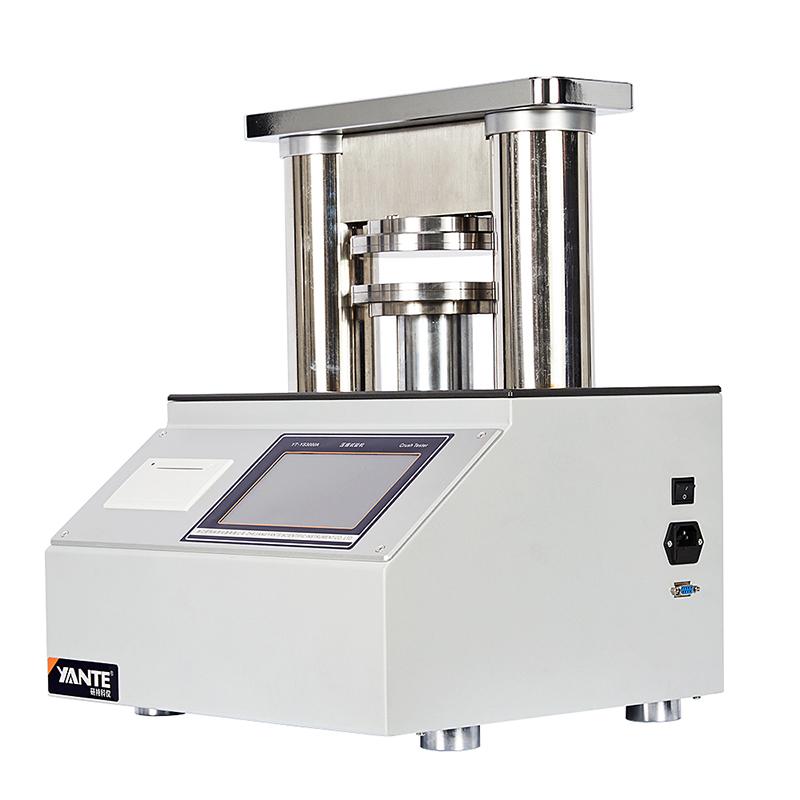

YANTE YT-YS3000A Compression Tester
YT-YS3000A
YanTe YT-YS3000A Compression TesterSPEC

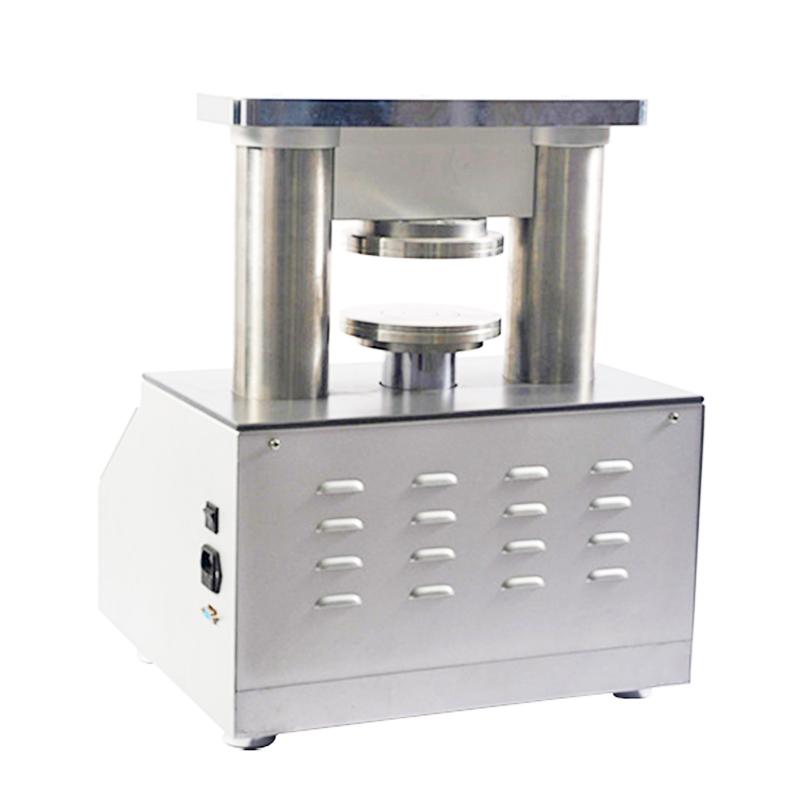

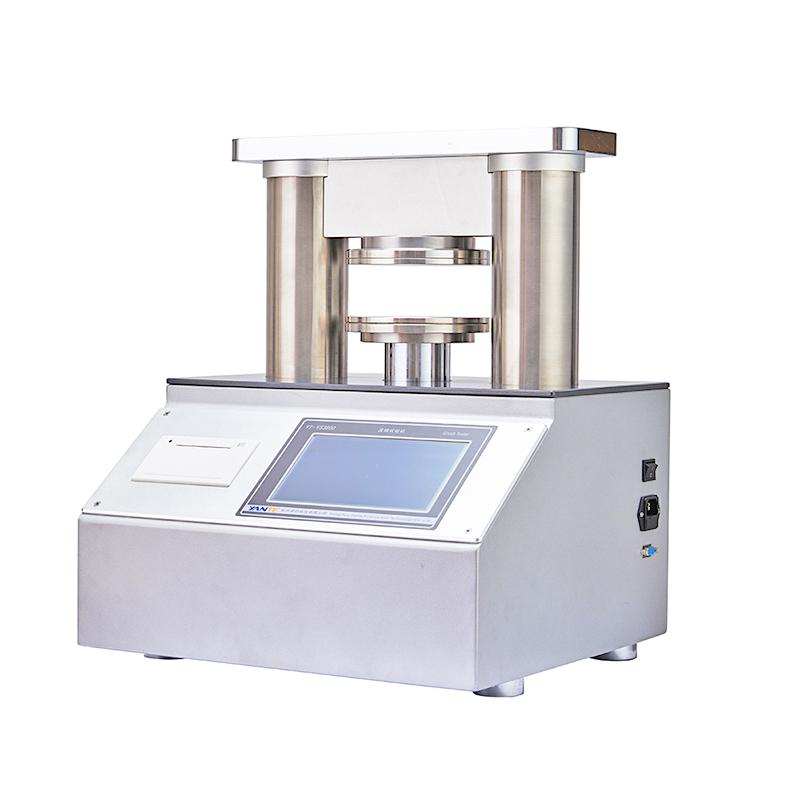

YanTe YT-YS3000A Compression TesterDetails
YanTe YT-YS3000A Compression TesterPacking list
- SKU
- NB039985
- Power supply Voltage
- AC100～240V，50Hz/60Hz 100W
- Operating Environment
- Temperature (10~35) ℃, Relative Humidity ≤ 85%
- show
- 7-Inch color touch screen
- Error of indication
- +/- 0.5% (range 5%~ 100%)
- Indication resolution
- 0.1N
- Indication variability
- ≤0.5％
- Test speed
- (12.5 +/- 1) mm/min, (1~ 500) mm/min adjustable
- Parallelism of Upper/Lower platens
- ＜0.02mm
- Maximum distance between Upper/Lower platens
- 80mm
- Thermal printer
- Communication interface
- RS232 (default) (USB, WIFI optional)
- Dimensions
- 415×370×505mm
- Net Weight of instrument
- About 58kg
The compression testing machine is a suitable auxiliary test tool for papermaking enterprises, cardboard manufacturers, carton manufacturers, carton users and quality supervision and inspection departments.
Product Features
Determination of Ring Compression Strength (RCT) of Corrugated Base Paper
Determination of Edge Compression Strength (ECT) of Corrugated Board
Determination of flat compressive strength (FCT) of corrugated cardboard
Determination of Corrugated Board Adhesive Strength (PAT)
Determination of flat compressive strength (CMT) of corrugated base paper
Determination of edge compression strength (CCT) of corrugated base paper
Product Features
High-precision load cell, ball screw drive, double guide shaft
ARM processor, 24-bit imported analog-to-digital converter, improves the response speed and test accuracy of the instrument.
Real-time display of pressure changes during the test curve.
Automatic reset over range to protect precision sensors.
Sudden power failure data saving function, data retention before power failure after power on and can continue to test.
Communication with microcomputer software (purchased separately).
Execution standards
GBT 2679.8, GBT 6546, GBT 22874, GBT 6548, GBT_2679
ISO 12192, ISO 3037, ISO 3035, ISO 7263, ISO 16945
TAPPI T822, TAPPI T839, TAPPI T825, TAPPI T809, TAPPI-T843
