CHINA PY-H4E Microcomputer Paper thickness Tester with tightness function

5-Inch color touch screen, thickness measurement range 0~10mm, with tightness function, resolution of 0.001mm. It is suitable for thickness measurement of paper and Miscellaneous sheet materials and corrugated fibreboard.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

PuYun PY-H4E Paper thickness TesterSPEC

PuYun PY-H4E Paper thickness TesterDetails

PuYun PY-H4E Paper thickness TesterPacking list

SKU
NB040046
Measurement range
0~10mm
Measurement Accuracy
+/- 0.003mm or +/- 0.5%
Power Supply
AC(100~240)V，(50/60)Hz 50W
Operating Environment
Temperature (10~35) ℃, Relative Humidity ≤ 85%
show
5-Inch color touch screen
Graduation
0.001mm
Error of indication error of indication
≤ 0.003Mm or ≤ 0.5%
Measurement of parallelism between planes
≤0.0004mm
Contact area
(1000±5) mm²
Contact Pressure
(2±0.1)kPa
Probe descent speed
(0.5~ 10) mm/s adjustable
Print
Thermal printer
Communication interface
RS232 (default) (USB, WIFI optional)
Dimensions
325×310×485 mm
Net Weight of instrument
About 24kg
standard basis
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534
PY-H4E
Paper thickness Tester
5-Inch color touch screen, thickness measurement range 0~10mm, with tightness function, resolution of 0.001mm. It is suitable for thickness measurement of paper and Miscellaneous sheet materials and corrugated fibreboard.

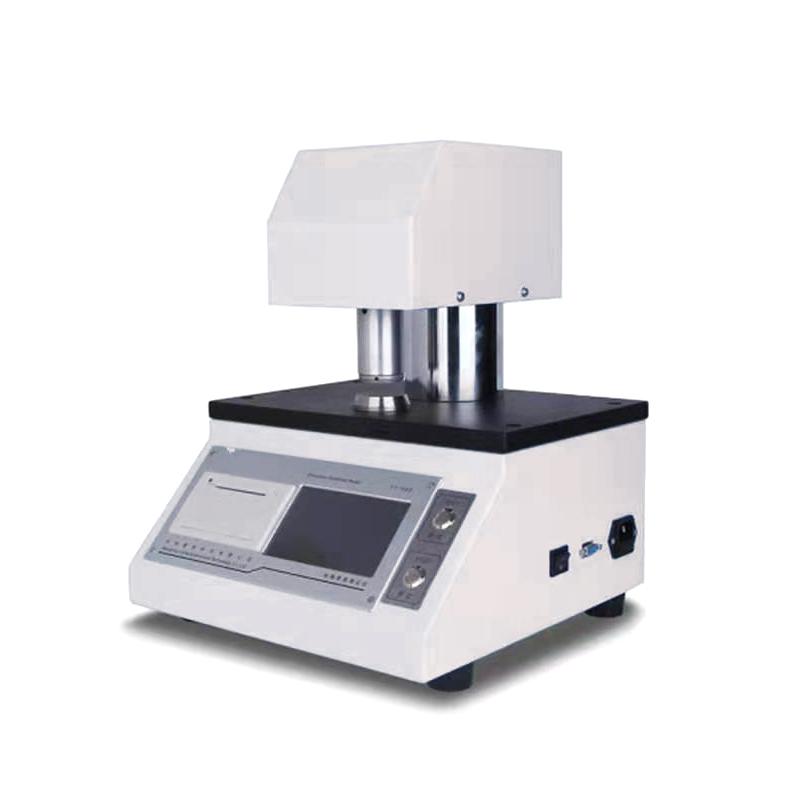

CHINA PY-H4E Microcomputer Paper thickness Tester with tightness function Picture

Introduction

PY-H4E microcomputer paper thickness Tester is a special instrument for the thickness determination of paper and cardboard, which is widely used in the thickness determination of paper and other sheet materials and corrugated cardboard, and is a professional test equipment for papermaking, packaging, scientific research and product quality supervision and inspection and other industries and departments.

PY-H4E microcomputer paper thickness Tester is a new type of testing instrument developed by our company in accordance with national standards, the instrument is a mechatronics product, using modern mechanical design concept and ergonomic design criteria, is a novel design, easy to use, excellent performance, beautiful and generous high-precision computer thickness Tester. The computer thickness Tester adopts high-precision displacement sensor, and the instrument has the functions of testing, conversion, display, memory, printing and data processing, and is a professional test equipment for papermaking, packaging, scientific research and product quality supervision and inspection and other industries and departments.

Standard basis

GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534

Product Features

  • One-click test, simple and easy to understand

  • The ARM processor improves the response speed of the instrument, and the calculation is accurate and fast

  • The probe rises and descends at adjustable speed

  • Automatically measure, count, print test results, and have data saving function

  • Standard RS232 interface, communication with microcomputer software (optional)
