RONGJIDA UJZ-15 Vertical Mortar Stirrer 2 layers 4 pieces × 45 °

In line with the JGJ70-90 standard, the operating diameter of the stirring blade is 230mm, and the capacity of the stirring cylinder is 28L.
Model：
Certificate
Contact
Details SPEC CAT

RongJiDa UJZ-15 Mortar StirrerSPEC

RongJiDa UJZ-15 Mortar StirrerDetails

RongJiDa UJZ-15 Mortar StirrerPacking list

SKU
NB040047
Stirring blade
2 layers of 4 pieces × 45 °
Stirring blade running diameter
Φ230mm
Rotation speed of stirring blade
(Clockwise) 80 +/- 4r/min
Rotation speed of stirring drum
(Counterclockwise) 60 +/- 2r/min
Mixing drum Capacity
28L
Mixing drum rated Capacity
(Discharge) 15L
Mixing cylinder inner diameter
Φ380mm
Mixing barrel depth
290mm
The gap between the fixing blade and the wall of the stirring cylinder
2±0.5mm
The distance between the stirring blade and the bottom of the stirring cylinder
2±0.5mm
Power supply Voltage
380V
Power
1500W
UJZ-15
Mortar Stirrer
In line with the JGJ70-90 standard, the operating diameter of the stirring blade is 230mm, and the capacity of the stirring cylinder is 28L.

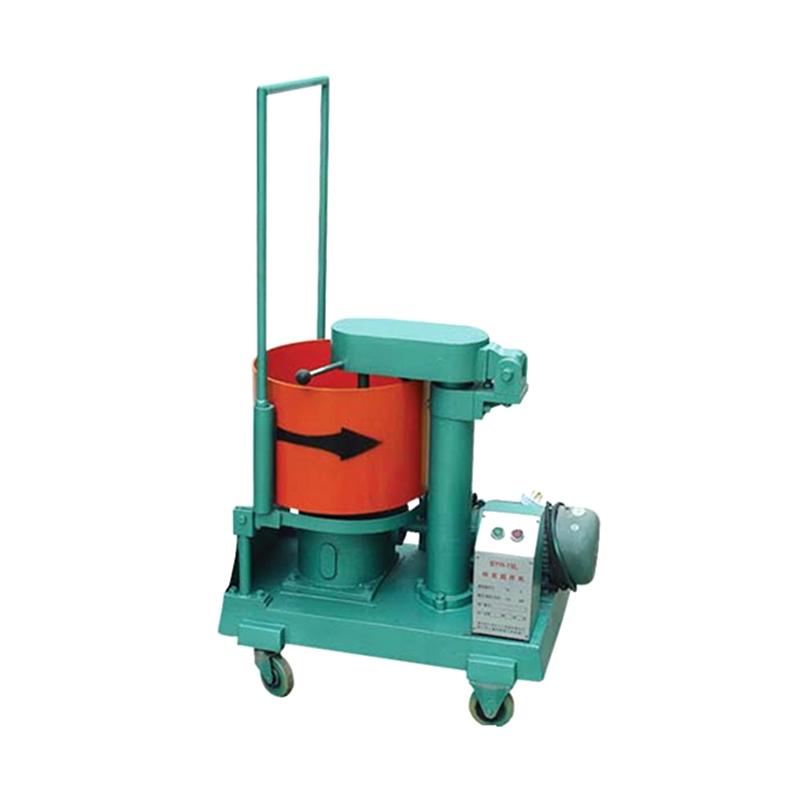

RONGJIDA UJZ-15 Vertical Mortar Stirrer 2 layers 4 pieces × 45 ° Picture

Function introduction

Mortar mixer is a special equipment designed to cooperate with the promotion and implementation of the Ministry of Construction (JGJ70-90) construction mortar basic performance test method standards, mainly used in the construction industry, colleges and universities, scientific research units, quality inspection departments for wall powder materials and brick wall mortar strength test mixing machinery. It has two relative rotations of the stirring blade moving clockwise and the stirring drum moving counterclockwise, so it has the characteristics of uniform stirring, short stirring time, high efficiency and convenient operation.
