China

YUEPING DZJ-40 Digital Display Overhead Electric Stirrer

Speed range 0/30-2000rpm, Rotation speed display LED seven zones, Stirring Processing capacity 25L, Max. Viscosity 30000mPas, Input Power 150W, Line Control Method Stepless, Max. Torque 40Ncm
Model：
Certificate
Contact
Details SPEC OI

YuePing DZJ-40 Digital Overhead Electric StirrerSPEC

YuePing DZJ-40 Digital Overhead Electric StirrerDetails

YuePing DZJ-40 Digital Overhead Electric StirrerPacking list

SKU
NB040048
Speed range
0/30-2000rpm
Rotation speed display
LED seven zones
Processing Capacity
25L
maximum viscosity
30000mPas
Input Power
150W
output power
105W
Speed regulation mode
stepless
Max Torque
40Ncm
drive type
Brushless DC motor
Maximum output power of mixing shaft
105 W
Permissible continuous running time
long continuous
Rotation speed control Accuracy
1±rpm
Speed measurement deviation at n > 300rpm
1±%
Speed measurement deviation at n < 300rpm
3±rpm
Impeller fixing method
Collet
Rotary collet clamping range
0.5~10mm
Hollow shaft, inner diameter
11mm
Hollow shaft (stop state, can be inserted)
Yes
bracket fixing
Extension arm chuck fixed
Extension arm diameter
16mm
Extend arm length
230mm
Speed control
electronic
Rated torque
0.4Nm
Shell material
Cast aluminum coating/thermal plasticity polymer
Weight
3kg
Ambient Temperature
5-40 ℃
Allowable Relative Humidity
80%
DIN EN 60529 Protection method
IP42
Power
230/115/100V
Rated Frequency
50/60Hz
Input Power
150W
DZJ-40
Digital Overhead Electric Stirrer
Speed range 0/30-2000rpm, Rotation speed display LED seven zones, Stirring Processing capacity 25L, Max. Viscosity 30000mPas, Input Power 150W, Line Control Method Stepless, Max. Torque 40Ncm

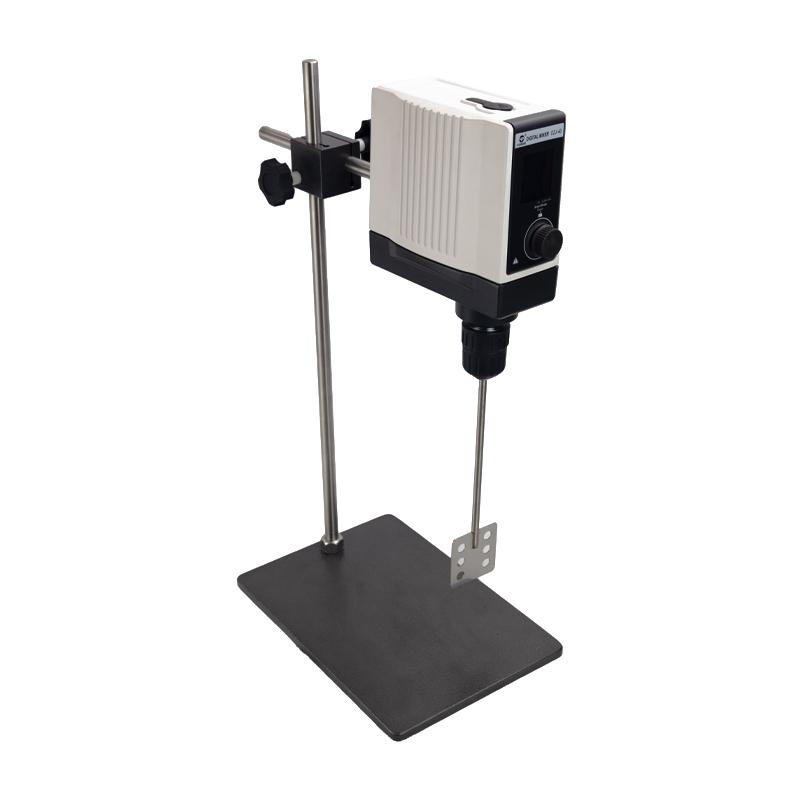

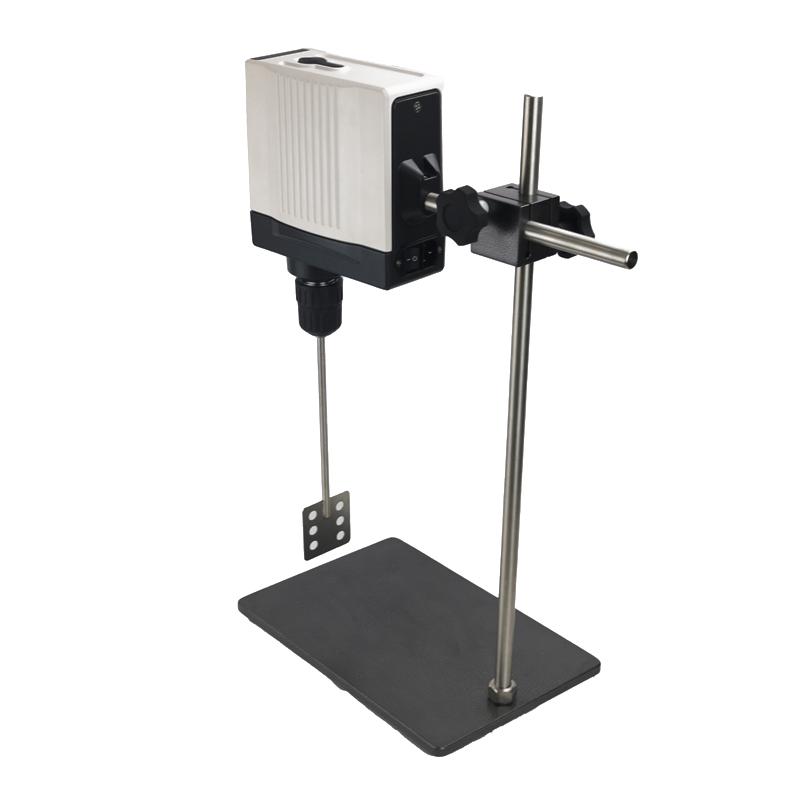

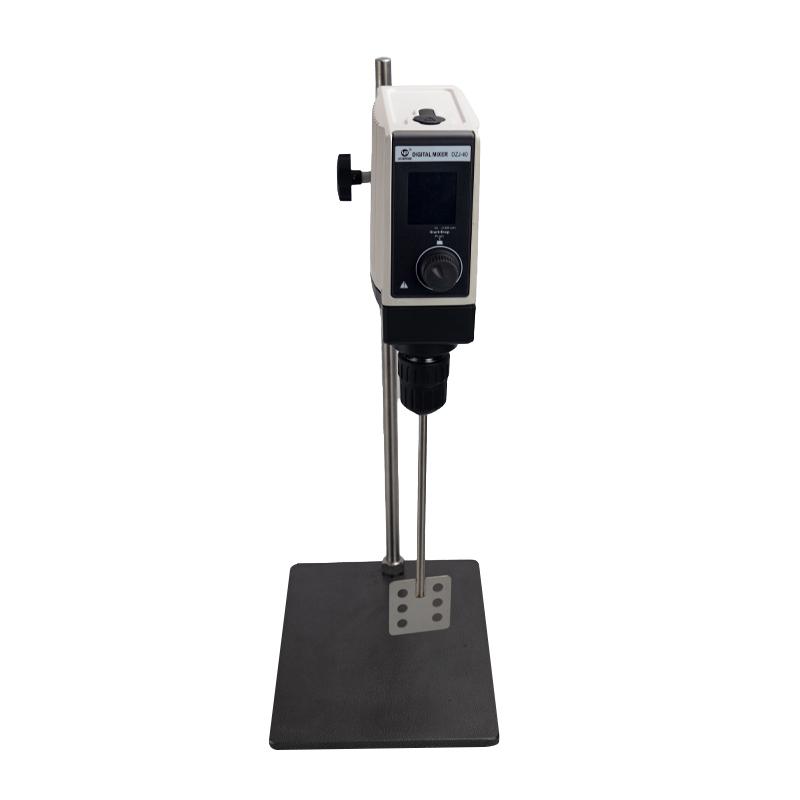

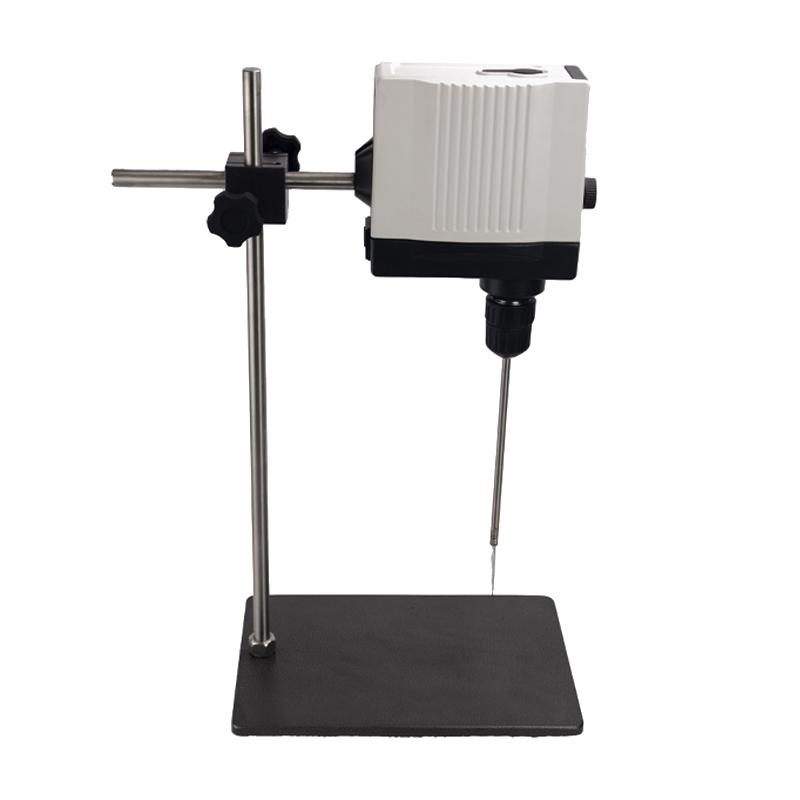

YUEPING DZJ-40 Digital Display Overhead Electric Stirrer Picture

Introduction

This mixer uses a brushless DC motor and operates silently. It is suitable for conventional mixing and has a processing capacity of up to 25L of water. The speed range is 0/30-2000rpm, and the speed is automatically adjusted through microprocessor control technology. The safety loop design ensures that the equipment can automatically stop running when the motor is stalled or overloaded. Continuously compares the actual speed of the stirring shaft with the set speed, and automatically adjusts the speed deviation. This ensures that the rotational speed remains constant during the experiment, even when the viscosity of the sample changes.

Features

  • Digital display speed stepless speed regulation

  • Penetrating stirring paddle

  • Overload protection

  • Short-term overload operation

  • Compact and novel appearance, silent operation

Product Structure

Yueping DZJ-40 digital display overhead electric mixer details picture 1
