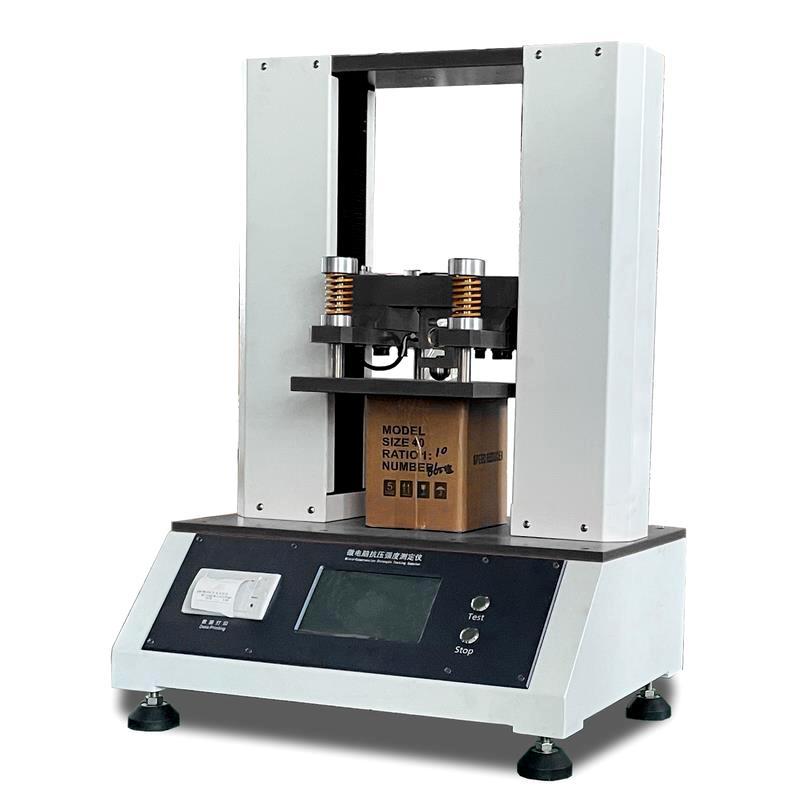

YINUO YN-KY200 Computer Compressive Strength Tester

YN-KY200

Computer compressive strength Tester

Encasement parts for compressive strength of fixed value test, compression test, stacking test and compression displacement test, in line with GB/T 4857.4, GB/T 4857.3, ISO 12408, ISO 2234 and other standards.

Introduction

YN-KY200 computer compressive strength Tester is professionally used for the test of compressive strength of packaging, equipment specifications need to be selected according to the size of the carton dimensions, and the material and the pressure plate need to be accurately parallel during the test to ensure the stability and repeatability of the test results. This compression Tester conforms to the international compressive strength test method for packaging and transportation, and is suitable for compressive testing, constant pressure testing, stacking testing, compression displacement testing and deformation testing of high-strength packaging such as corrugated boxes and honeycomb boxes, and can also be used for compression testing of plastic barrels and other material container containers.

Test functionality

Constant value test: in the case of compression test, a predetermined pressure is added to determine the pressure holding test of the box;

Compression test: in the case of compressive test, pressurization is carried out until the sample is damaged, which is used to determine the ultimate pressure resistance of the box;

Stacking test: In the case of a stacking test, a predetermined load is applied until the specimen is damaged or lasts for a predetermined time;

Compressive displacement test: In the case of compressive test, a predetermined pressure or displacement is added to detect the deformation result of the carton after compression;

Enforce the standard

GB/T 4857.4 、GB/T 4857.3 、ISO 12408、ISO 2234、QB/T 1048、ASTM D642、ASTM D4169 TAPPI T804

Expertisetechnique

• 7in touch screen with curve display, free switching between Chinese and English, real-time display of anti-stress information, data more intuitive;

• The force and time can be directly set, and the compressive results and compression deformation of the carton can be automatically recorded after the test is completed.

• Open structure design, double ball screw, double guide pillar, good parallelism, good stability, strong rigidity and long service life;

• Limit stroke protection, overload protection, and other intelligent configurations to ensure the user's operation safety;

• The built-in power protection device can protect the equipment from damage caused by excessive or unstable magnetic field of the power supply.

• The instrument is equipped with a high-speed micro printer, which prints data such as test time, test number, maximum crushing force, compression displacement, etc.;

• It can be equipped with special computer analysis software to analyze the details of the curve, with a special programmable file management analysis report, A4 printing (optional);

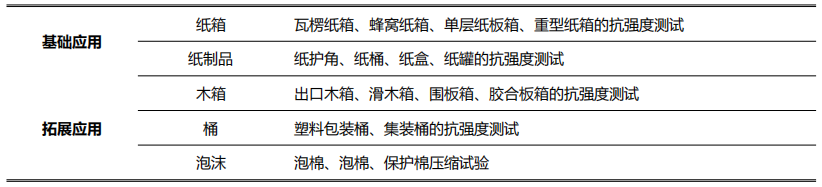

Test your app

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
