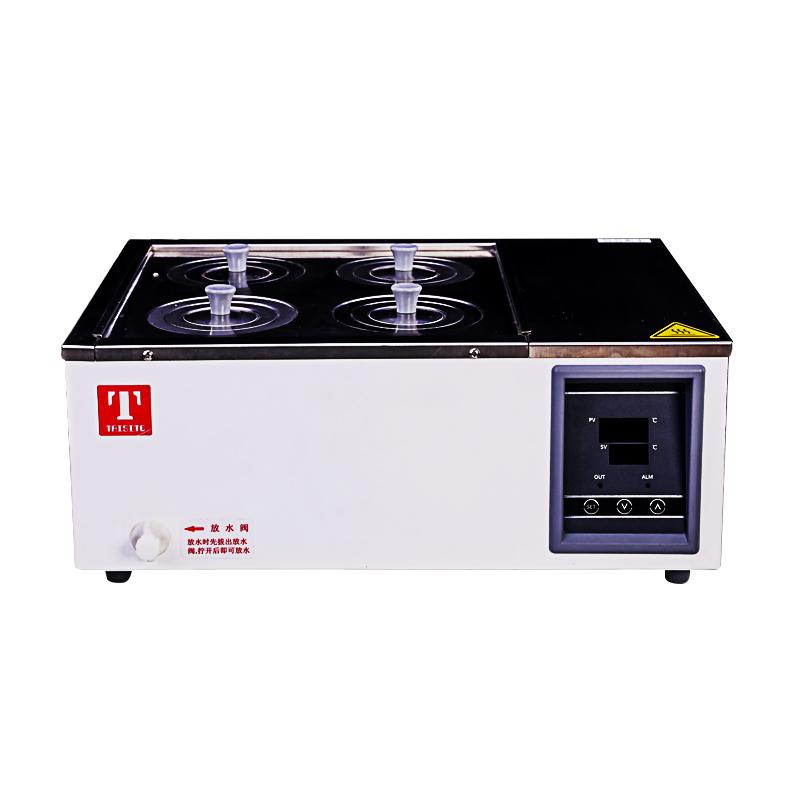

TAISITE DK-98-Ⅱ A intelligent Electric Thermostatic Water Bath double row four holes 12.7L
SE
DK-98-Ⅱ A (double row four holes)
-
Honghua HH-4 high-grade anti-dry burning, digital display constant temperature Water Bath 4 holes$ 190.00SE -
Honghua HH-4 high-grade, digital display constant temperature Water Bath 4 holes$ 172.00SE -
DADI HH-S24 digital display double row four hole thermostatic water bath$ 153.00SE -
DADI HH-S14 digital display single row four hole thermostatic water bath$ 161.00SE -
DADI HH-S24 digital display double row four-hole thermostatic water bath ABS lid$ 141.00SE
TaiSiTe DK-98-Ⅱ A (double row four holes) Electric thermostatic Water BathSPEC
TaiSiTe DK-98-Ⅱ A (double row four holes) Electric thermostatic Water BathDetails
TaiSiTe DK-98-Ⅱ A (double row four holes) Electric thermostatic Water BathPacking list
- SKU
- NB040983
- Number of holes
- Double row four holes
- Tank Size
- 325*325*120mm
- Tank Volume
- 12.7L
- Tank Depth
- 120mm
- Temperature range
- RT+5~100°C
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±0.5℃
- Temperature Uniformity
- ±1.0℃
- Total Power
- 1.0Kw
- Timer
- 0~999Min (with Timer and waiting function)
- Dimensions
- 515*380*198mm
- Tank Material
- stainless steel plate
- Display mode
- Single digital
- Power
- AC220V/4.5A 50/60Hz
- Box material
- Cold rolled steel plate, surface resistance painting
- Packing size
- 550*480*240mm
- Temperature setting
- Touch key settings
- Temperature representation
- Measuring temperature display: 3-digit digital upper display, setting temperature display: 3-digit digital lower display
- Run function
- Fixed value operation, Timer operation, automatic stop
- Program Mode
- optional
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory
- Sensors
- CU50
- Safety Devices
- Overrise alarm
- Shelf load bearing
- 5kg
- Shelf Layers
- 1st floor
- Net Weight
- 7kg
- Gross Weight
- 8kg
- Thermal insulation material
- Polyurethane
- heater
- Stainless steel heating tube
- Temperature control mode
- PID
Introduction
DK-98-Ⅱ series electric constant temperature Water Bath pot is suitable for the laboratories of medical units, colleges and universities, scientific research departments, chemical printing and dyeing, pharmaceutical and other industrial and mining enterprises, for distillation, concentration, drying and constant temperature heating.
Features
1. The shell is formed by high-quality steel plate, and the surface is electrostatically sprayed, which is durable.
2. The inner tank and upper cover are made of high-quality stainless steel plate, which has strong corrosion resistance.
3. U-shaped heating tube is used to heat directly in the water, the temperature rises rapidly and the heat loss is small.
4. Single digital display (DK-98-II) or intelligent temperature controller (DK-98-IIA), easy to operate and effective.
5. PID control ( DK-98-IIA )
6. Convenient operation, fixed value operation, timing operation, automatic stop.
7. Special function keys to realize temperature setting.
8. Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
9. Temperature rise curve, time unit: minute, temperature unit: ℃
Note: DK-98-II: single nixie tube digital display time proportional instrument, without PID and alarm function;
circuit diagram
