Miniature Coil Coating Tester, Heating Coil Applicator TBJ-JTH-DJ1 Automatic Winding and Unwinding
SE
TBJ-JTH-DJ1
zy TBJ-JTH-DJ1 Heating Coil CoaterSPEC
zy TBJ-JTH-DJ1 Heating Coil CoaterDetails
zy TBJ-JTH-DJ1 Heating Coil CoaterPacking list
- SKU
- NB041158
- Application mode
- Adjustable roller application
- Effective Application Width
- 0-400mm
- Application rate
- 0-5m/min
- Heating method
- Stainless steel electric heating tube heating, centrifugal fan hot air circulation
- Heating temperature range
- RT+~200°C
- Host Power
- 220V 50Hz
- Dimensions
- ≈1500mmX600mmX750mm
- Roll surface width
- 400mm
- Unwinding diameter
- ≤ 400mm
- winding diameter
- ≤ 400mm
- Unwinding Unit - Type
- Single station
- Unwinding Unit - Effective Unwinding Width
- 400mm
- Unwinding Unit - Effective Unwinding Diameter
- ≤ 400mm
- Unwinding Unit - Unwinding Reel
- Inflatable shaft
- Unwinding Unit - Unwinding Tension Control
- Tension Controller automatic control
- Extrusion Unit - Extrusion Method
- Double roll extrusion
- Extrusion Unit - Double Roll Material
- Plating roller
- Extrusion Unit - Adjustable Range
- 0.3-10mm
- Extrusion Unit - Application Film thickness
- 0.3-10mm
- Extrusion Unit - Application Adjustment
- Handwheel adjustment, dial meter display
- Extrusion Unit - Application Accuracy
- ±0.05mm
- Extrusion Unit - Dip Tray Material
- 304 stainless steel
- Oven Unit - Type
- Column arch bridge type; unilateral pneumatic jacking type
- Oven Unit - Length
- Oven: 1000mm
- Oven Units - Materials
- stainless steel
- Oven unit - temperature
- Room temperature~ 200 ℃ ± 3 ℃
- Oven unit - temperature control
- Digital temperature control meter automatic proportional temperature control
- Oven Unit - Insulation
- Glass fiber filled with insulation layer
- Winding Unit - Type
- Single station
- Winding Unit - Effective Winding Width
- 400mm
- Winding Unit - Effective Winding Diameter
- ≤ 400mm
- Winding Unit - Winding Reel
- Inflatable shaft
- Winding Unit - Winding Tension Control
- Tension Controller automatic control

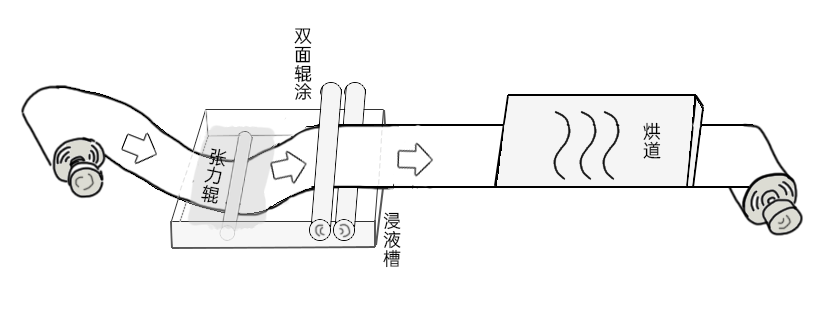

main part configuration
(1) Unwinding unit
Type: single station
Effective unwinding width: 400mm
Effective unwinding diameter: ≤φ400mm
Unwinding shaft: Inflatable shaft
Unwinding tension control: tension controller automatic control,
(2) Extrusion unit
Extrusion method: double roll extrusion
Double roll material: Plated Luo roll
Adjustable range: 0.3-10mm
Coating thickness: 0.3-10mm
Coating adjustment: hand wheel adjustment, dial gauge display
Coating accuracy: ±0.05mm
Dip tray material: 304 stainless steel
(3) Oven unit
Type: column arch bridge type; single side pneumatic top opening type
Length: Oven: 1000mm
Material: Stainless steel
Temperature: Room temperature～200℃±3℃
Temperature control: digital display temperature control meter automatic proportional temperature control
Insulation: The insulation layer is filled with glass fiber
(4) Winding unit
Type: single station
Effective winding width: 400mm
Effective winding diameter: ≤φ400mm
Rewinding shaft: Inflatable shaft
Winding tension control: tension controller automatic control,
