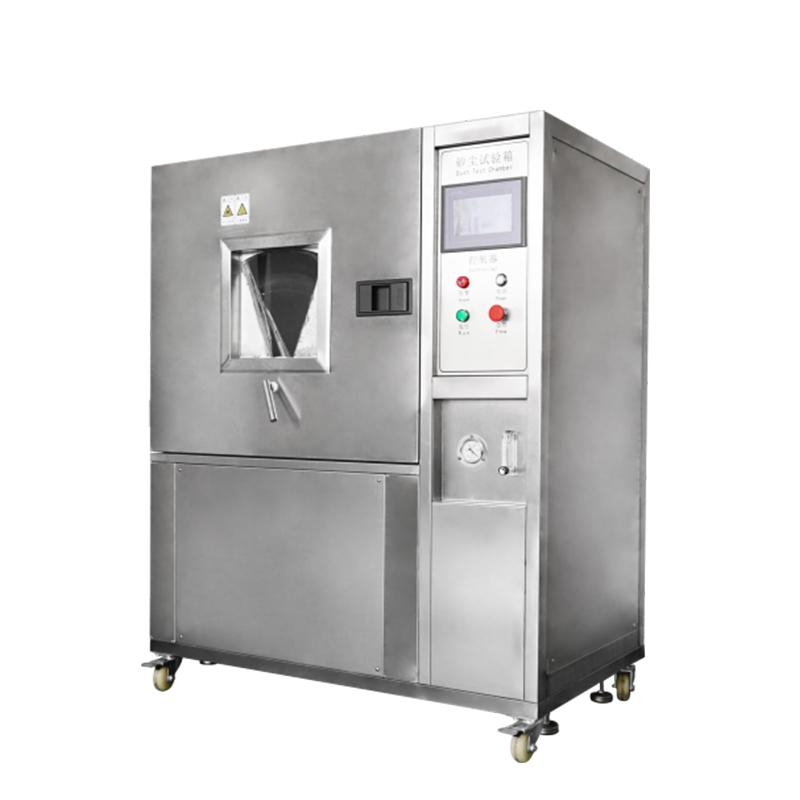

HUDA QD-E706 Sand dust Test Chamber

QD-E706

Sand Test Chamber

It is suitable for detecting the sealing performance of electronics and automobiles. Interior volume 1000L, temperature control 15~ 35 ℃, dust volume in the box is 2Kg/m, and it is equipped with a vacuum system.

Introduction

HUD-E706 is suitable for testing the sealing performance of the product’s shell, and is mainly used for the tests of IP5X and IP6X specified in the shell protection standard. It is mainly to simulate the damage caused by sandstorm weather to locks, automobile and motorcycle parts, seals, power meters and other products.

Features

• The whole is made of high-grade stainless steel, and the interior is polished to reduce the adhesion of sand and dust.

• The dust blower, dust vibration and total test time can be controlled and set according to the test requirements.

• The large tempered glass window is equipped with a sand and dust scraper to observe the test status at any time.

• It adopts PLC interactive touch screen intelligent operating system with diversified functions and easier operation.

• The unique air duct design ensures that the box produces non-layered vertical circulation airflow.

• The dust blower, dust vibration and test time can be individually set and adjusted as a whole.

• Equipped with a vacuum system, it can display and control the flow, flow rate and differential pressure in real time.

• Protection devices such as power supply, short circuit, grounding, over temperature, etc., will automatically stop when there is an abnormal fault, and an audio prompt will be issued.

Standards

GB2423, GB4706, GB4208, DIN

test application

HUD-E706 is suitable for the test of electrical, electronic, automobile, motorcycle, LED and other products, the sealing performance of the shell, the ability of the product to work in an environment where dust is free to settle and there is no obvious air flow, and it is placed outdoors with strong airflow and A test of the working ability of the product in places with a lot of sand and dust and similar places.

Basic application: dust-proof, such as dust-proof tests on lights, instruments, steering systems, door locks, etc.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
