SMART SENSOR AR932A Galvanized Thickness Gauge 0um~ 1999um

AR932 upgrade, range 0um~ 1999um, accuracy +/- 2μm, built-in integrated probe, magnetic Induction and eddy Current two thickness measurement principles.
Model：
Certificate
Contact
Details SPEC

SMART SENSOR AR932A Galvanized layer Thickness GaugeSPEC

SMART SENSOR AR932A Galvanized layer Thickness GaugeDetails

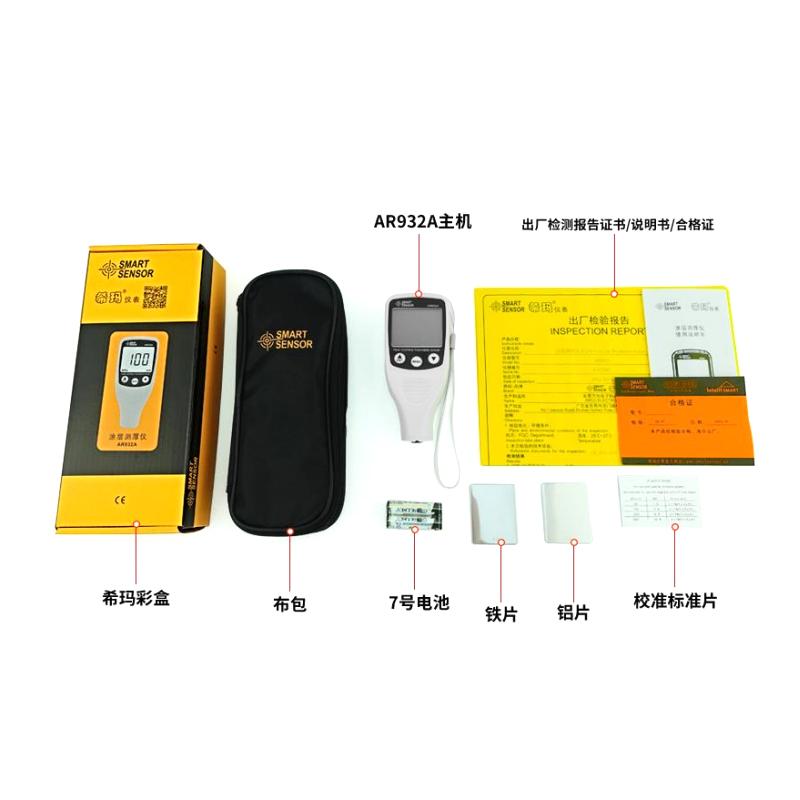

SMART SENSOR AR932A Galvanized layer Thickness GaugePacking list

SKU
NB041690
Standards
GB/T4956-2003;GB/T4957-2003
Accuracy
±2μm
Unit display
μm micron/mil exchange
Storage temperature
-10~60℃
probe device
Built-in integrated
power on
Probe trigger boot
Automatic shutdown
30 seconds without operation
backlit display
Yes.
MAX Maximum measurement
Yes.
MIN Minimum measurement
Yes.
Average measurement
Yes.
Factory reset
Yes.
Calibrated mode
Standard sheet calibrated, multi-point calibrated
Data storage
20 pens
matrix recognition
automatic identification
Screen swirl/spin readings
180°
Power Supply
2 * 1.5VAAA battery
Product size
120*50*25mm
Bare metal Weight
75G (without battery)
AR932A
Galvanized layer Thickness Gauge
AR932 upgrade, range 0um~ 1999um, accuracy +/- 2μm, built-in integrated probe, magnetic Induction and eddy Current two thickness measurement principles.

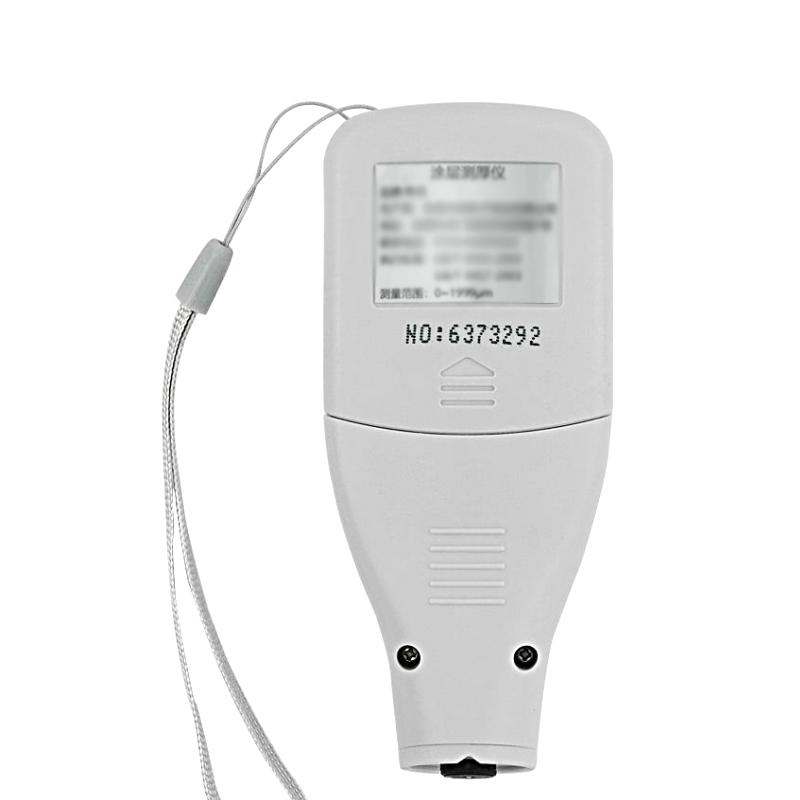

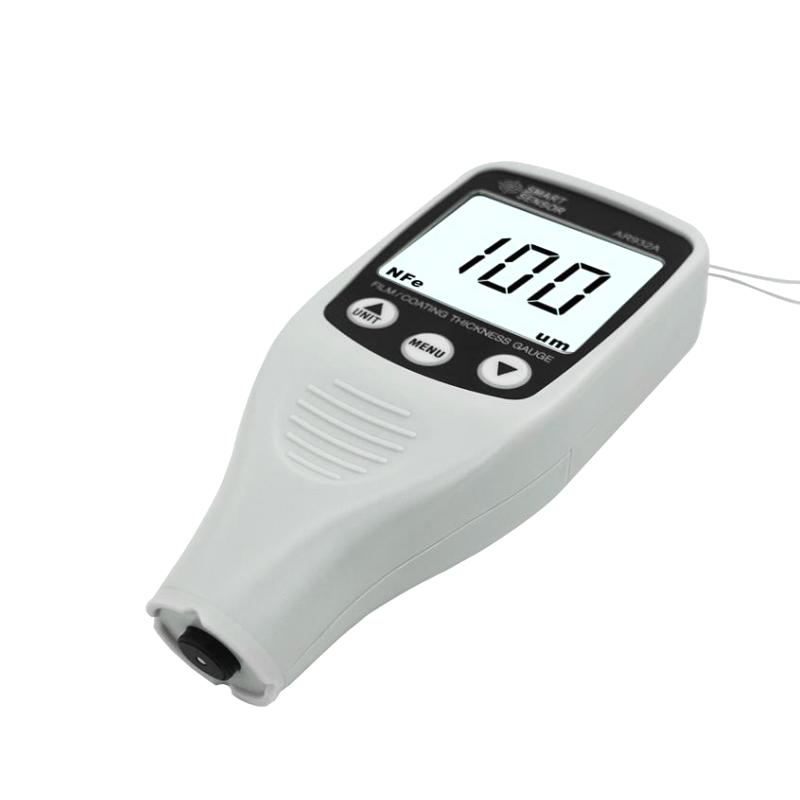

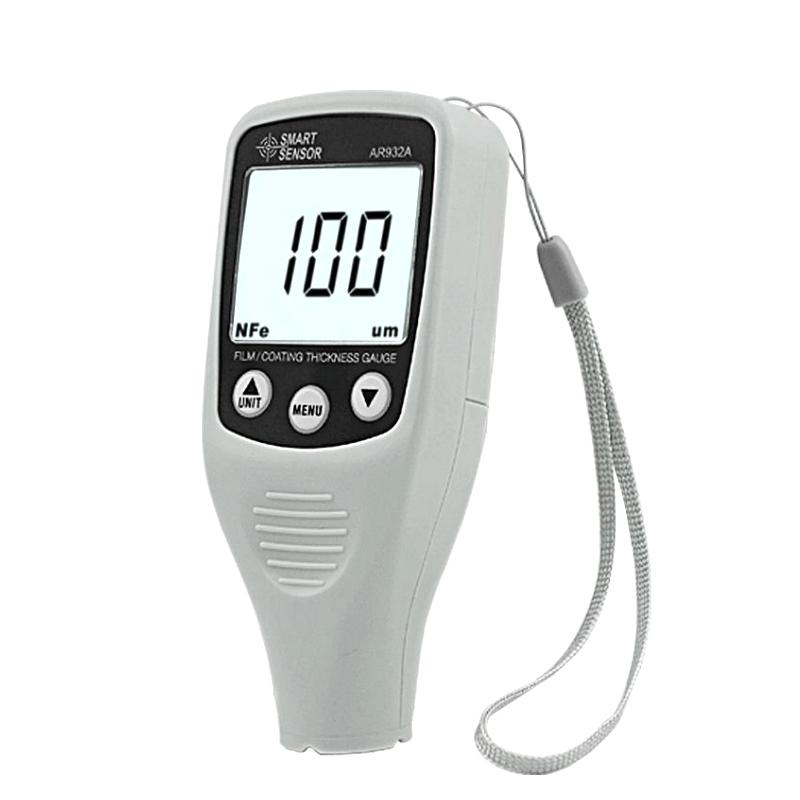

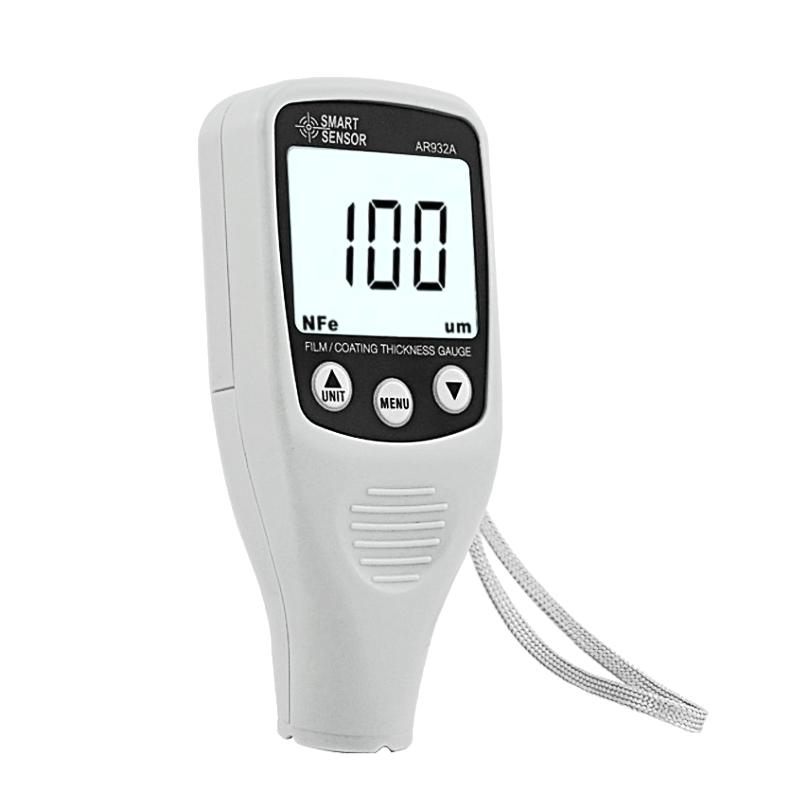

SMART SENSOR AR932A Galvanized Thickness Gauge 0um~ 1999um Picture

Introduction

The high-range galvanized Thickness Gauge AR932A is based on the conventional AR932 and is specifically designed for galvanized coatingsIt is designed for R&D.

The AR932A is a coating Thickness Gauge with a wider range of applications, which has small measurement error, good stability, high reliability, easy operation, and coating Thickness GaugeThe matrix is generally divided into magnetic metal matrix steel, iron, alloy and hard steel, etc.) and non-magnetic metal matrix (generally referring to aluminum, copper, zinc, tin, etc.)It is a testing instrument required to control and ensure product quality

Application

It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection, and second-handautomobiles, automobile manufacturing industry, etc.

It can be widely used to measure the electroplating layer of copper, chromium, zinc and other plating layers on steel or the thickness of coatings such as paints, coatings, enamels, etc.At the same time, it can measure the thickness of anodized film on aluminum and magnesium materials, the coating thickness on non-ferrous metal materials such as copper, aluminum, magnesium and zinc, and aluminum, copper and goldThe thickness of foil strips, paper, and plastic films, and the thickness of thermal spray coatings on various steel and non-ferrous metal materials.
