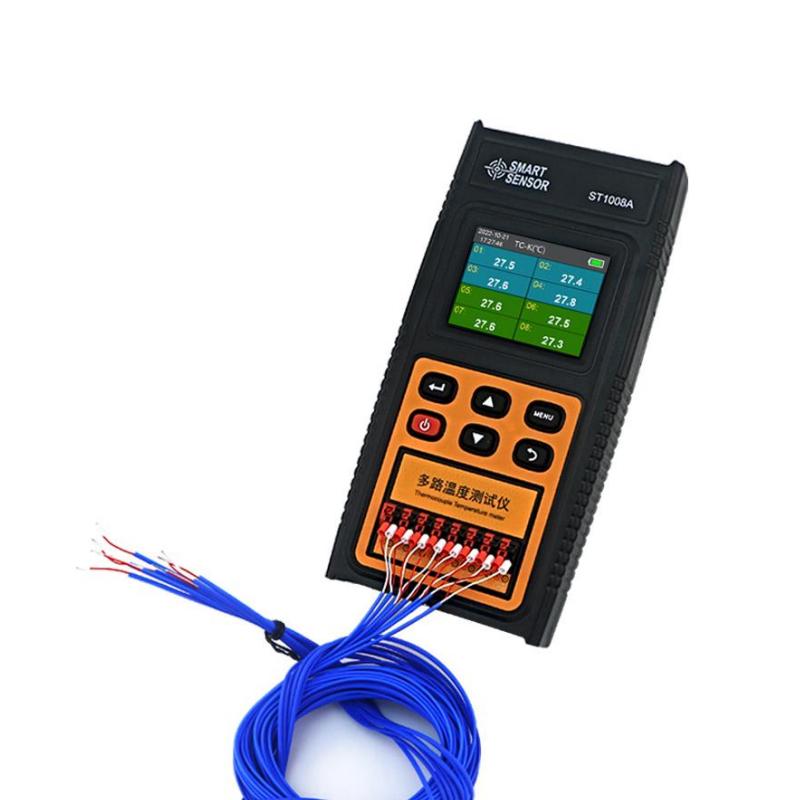

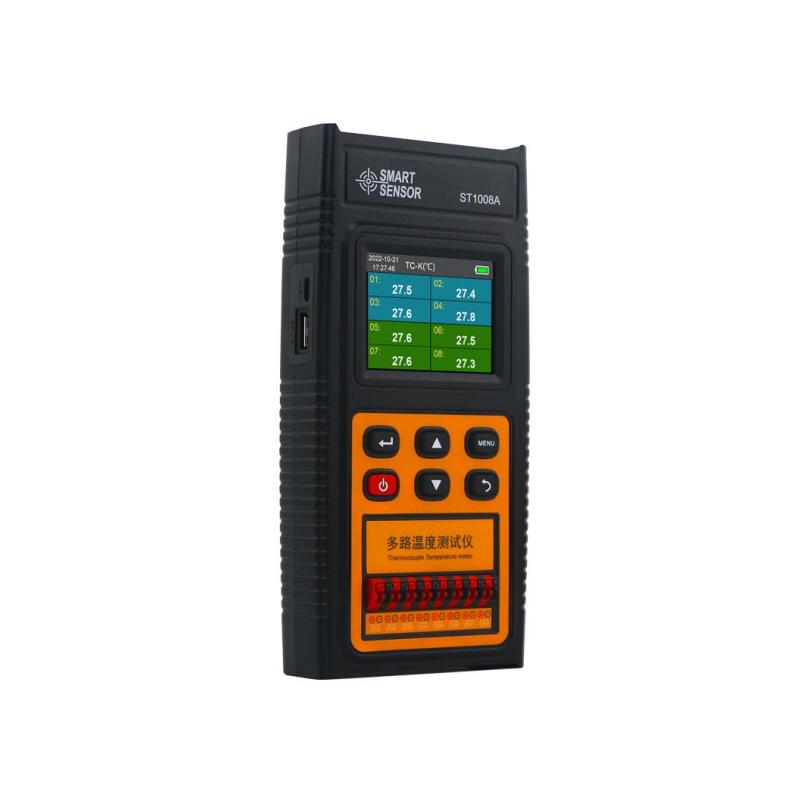

Smart Sensor ST1008A 8-channel thermocouple temperature Recorder
SE
ST1008A
SMART SENSOR ST1008A Thermocouple temperature RecorderSPEC
SMART SENSOR ST1008A Thermocouple temperature RecorderDetails

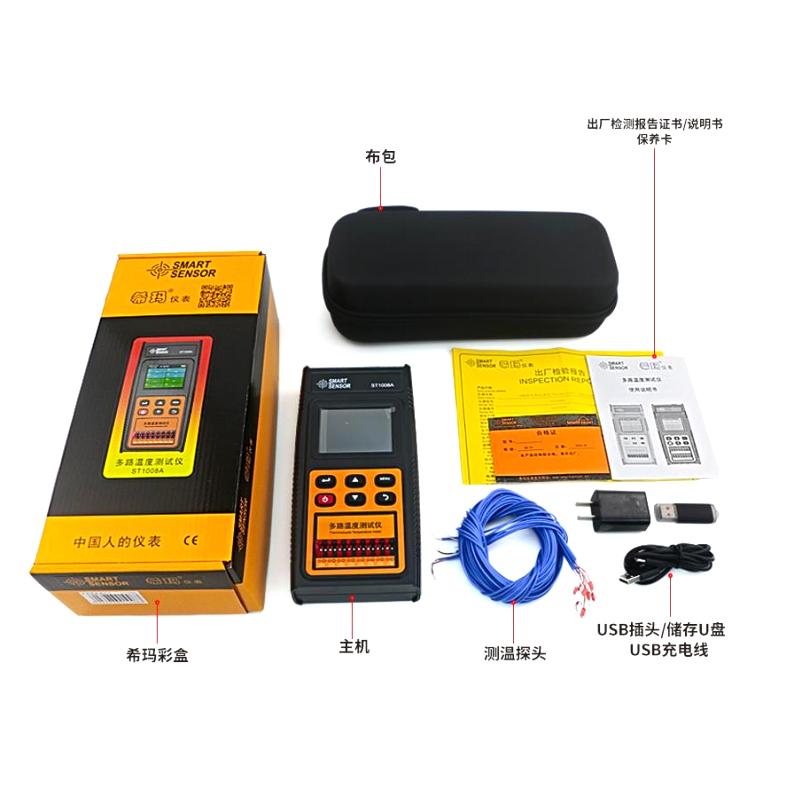

SMART SENSOR ST1008A Thermocouple temperature RecorderPacking list
- SKU
- NB041694
- temperature Measurement Range
- -200～1300℃（-328℉～2372℉）
- Number of channels
- 8 channels
- Standards
- GB/T30429-2013
- thermocouple
- K type
- precision
- 0.2%+1℃
- resolution
- 0.1℃（0.1℉）
- Accuracy
- -200 degrees to 0 degrees (read value x0.5% + 2) ℃; 0 degrees to 200 degrees (read value x0.5% + 1.5) ℃; 201 degrees to 1300 degrees (read value x0.5% + 2) ℃
- acquisition rate
- 1.5 seconds
- J-type thermocouple (optional)
- -200~1200℃（-328℉～2192℉）
- T-type thermocouple (optional)
- -200~400℃（-328℉～752℉）
- Type E thermocouple (optional)
- -200~1000℃（-328℉～1832℉）
- N-type thermocouple (optional)
- -200~1300℃（-328℉～2372℉）
- Computer analysis software
- optional
- Data record storage
- Local storage, U disk storage
- Data record export
- U disk and local connection export/computer and local online view Txt document
- Time record storage
- Yes.
- Storage Capacity
- The local storage without an external U disk can be stored for 3.5 days (5-second recording interval), and the external U disk supports a maximum Capacity of 32G
- Temperature record storage
- Yes.
- Time display
- Yes (year~ month~ day hour: minute)
- Time setting
- Yes.
- Linear dispersion chart
- The menu interface of the machine can be used for temperature recording and time Linear dispersion viewing
- recording mode
- Continuous recording, adjustable range (3~ 60 seconds)
- Temperature switching
- ℃/° F swap
- Display
- TFT color screen 2.8 inches
- Automatic shutdown
- Yes.
- language
- Chinese/English, toggle
- Alarm function
- Upper and lower limit temperature settings
- Calibrating function
- Factory preset two-point calibrated 0 ℃, 1000 ℃
- External Power mode
- Type-c USB（DC 5V）
- Battery Capacity
- 5000 mA/h 3.7V polymer lithium battery (built-in) 35h at full charge
- Random with thermocouple wire
- K type thermocouple wire, length 2 meters, wire temperature resistance 300 ℃, K type thermocouple wire wire precision: + -0.5%. High temperature wire greater than 300 ℃ needs to be specially selected from the manufacturer
- Operating Temperature
- -20℃～60℃
- Operating Humidity
- 1~90%RH
- Dimensions
- 205mm*100mm*38mm
- Encasement method
- Hard box cloth bag + color box
- Body Weight
- 400 g
Introduction
The multi-channel temperature Tester can collect multi-channel temperature data at the same time, and can measure the temperature of up to 16 points at the same time, with record analysis function, upper and lower limit alarm and communication transmission, compatible with various temperature sensors, fast response, data It is stable and controlled by a high-performance chip microprocessor. The instrument uses true-color TFT-LCD, Chinese and English interchangeable operation interface, high-precision measurement and easy to use to bring users a new test experience, the instrument supports large-capacity USB storage, it is a design for the actual needs of various industrial sites Produced, a new type of Recorder that integrates multiple functions such as display, processing, recording, calculation, alarm and power distribution, is widely used in the entire industry, scientific research, medical and food, teaching, laboratories, material temperature testing, heat dissipation testing , electronic testing, photoelectric industry, etc.
