3NH ST2222 Array Colorimeters for measurement
Equipped with φ 8mm (platform + tip), φ 4mm (platform + tip), 1x3mm five measurement diameters, suitable for surface color measurement, sexual repeability Delta E * ab < 0.018, camera framing, touch screen operation.
Model：
ST2222
Similar products
3NH ST2222 Array ColorimeterSPEC
3NH ST2222 Array ColorimeterDetails
3NH ST2222 Array ColorimeterPacking list
- SKU
- NB041895
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception)
- Measurement structure
- SCI/SCE includes specular reflection/excludes specular reflection; includes UV measurement/excludes UV measurement
- Meet the standard
- CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
- Measurement repeability
- ΔE*ab≤0.018
- stand-alone difference
- ΔE*ab≤0.18
- Display Accuracy
- 0.01
- Measurement/Lighting Aperture ***
- Five caliber: φ 8mm/φ 10mm platform + φ 8mm/φ 10mm pointed nozzle + φ 4mm/φ 5mm platform + φ 4mm/φ 5mm pointed nozzle + 1 * 3mm
- Measurement index
- Light spectrum reflectance, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, color difference (delta E * ab, delta E * cmc, delta E * 94, delta E * 00)
- Light source conditions
- A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,
- display mode
- Light spectrum plots/data, sample chromatic values, color difference values/plots, pass/fail results, Color simulation, Color bias
- lighting source
- Light spectrum LED light source, UV light source
- Measurement and positioning method
- Camera viewfinder positioning, stabilizer, visual
- Calibrating method
- Intelligent auto calibration (contactless automatic lifting)
- Accuracy
- First Class Measurement Pass
- Viewing Angle
- CIE 2°/10°
- Integrating sphere size
- Φ40mm
- spectroscopy
- Plane grating spectroscopy
- Sensor
- Large area silicon photodiode array (dual row 22 groups)
- wavelength interval
- 10nm
- Wavelength range
- 400~700mm
- Reflectance Measurement Range
- 0~200%
- Reflectance resolution
- 0.01%
- measurement mode
- Single measurement, average measurement (2~ 99 times)
- Measurement time
- About 1 second
- Dimensions
- 114*70*208mm
- Weight
- Approximately 435g (excluding calibration seat)
- battery life
- Lithium battery, 3.7V, 5000mAh, 8500 cycles in 8 hours
- Lifetime of lighting source
- More than 1.50 million measurements in 10 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- interface
- USB, Bluetooth ® 5.0
- data storage
- 500 master standards, 20,000 samples (one data can include SCI/SCE at the same time); APP/PC Mass storage
- Software Support
- Windows, Android, IOS, Hongmeng, WeChat Mini Program, color scheme cloud
- operating language
- Simplified Chinese, English, Traditional Chinese
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- standard attachment
- Power adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber
- optional accessories
- Micro printer, powder test box
- Measurement index 2
- Whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)
- Measurement index 3
- Blackness (My, dM), colour fastness, color fastness to change, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Isochromatic Index Milm, Munsell, hiding power, force (dyestuff strength, tinctorial strength)
- Light source condition 2
- ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-B6, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-V3, customizable light source

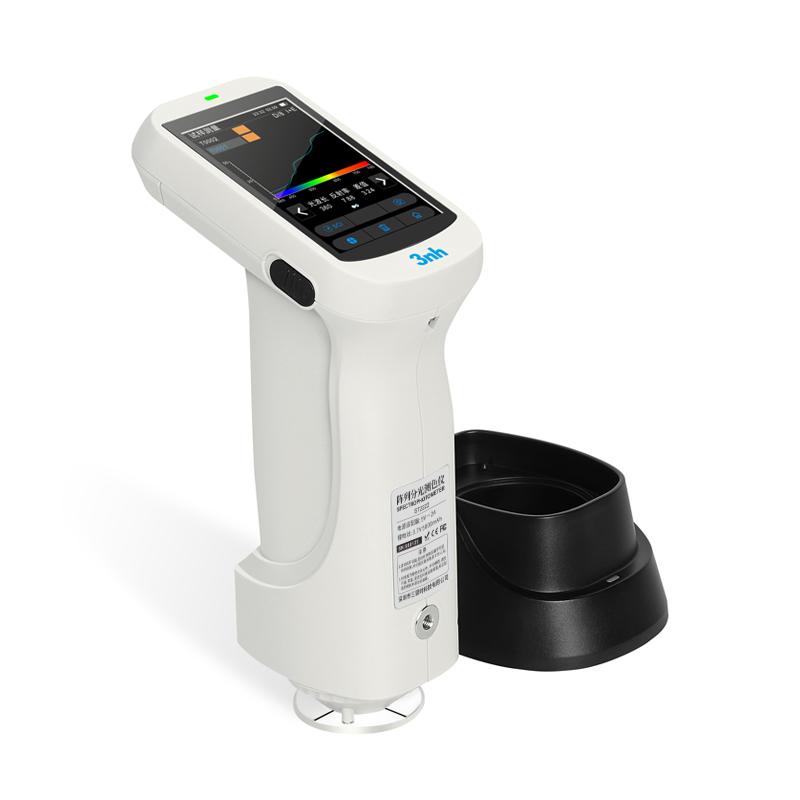

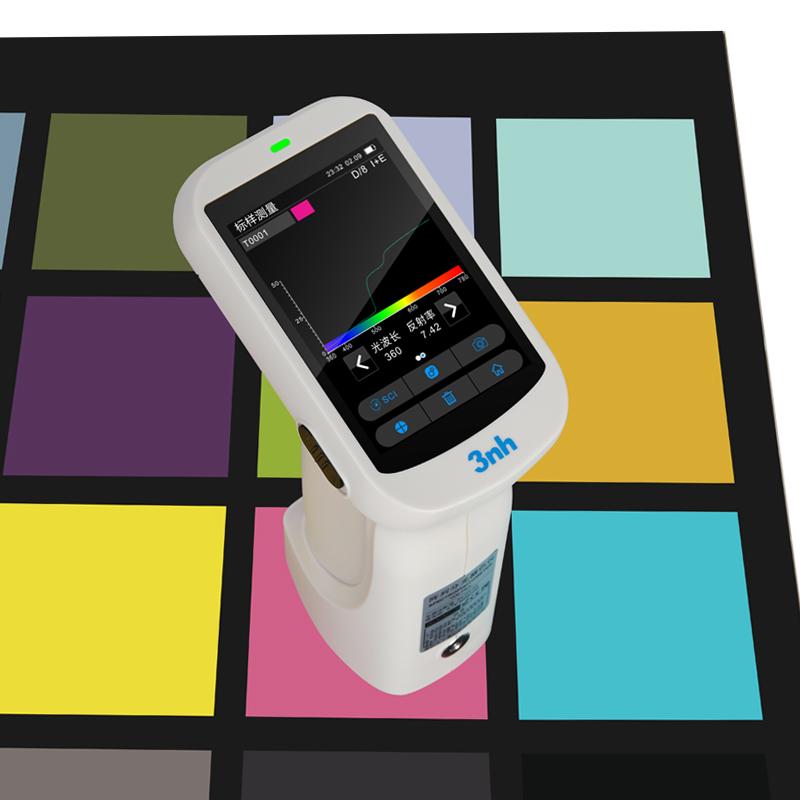

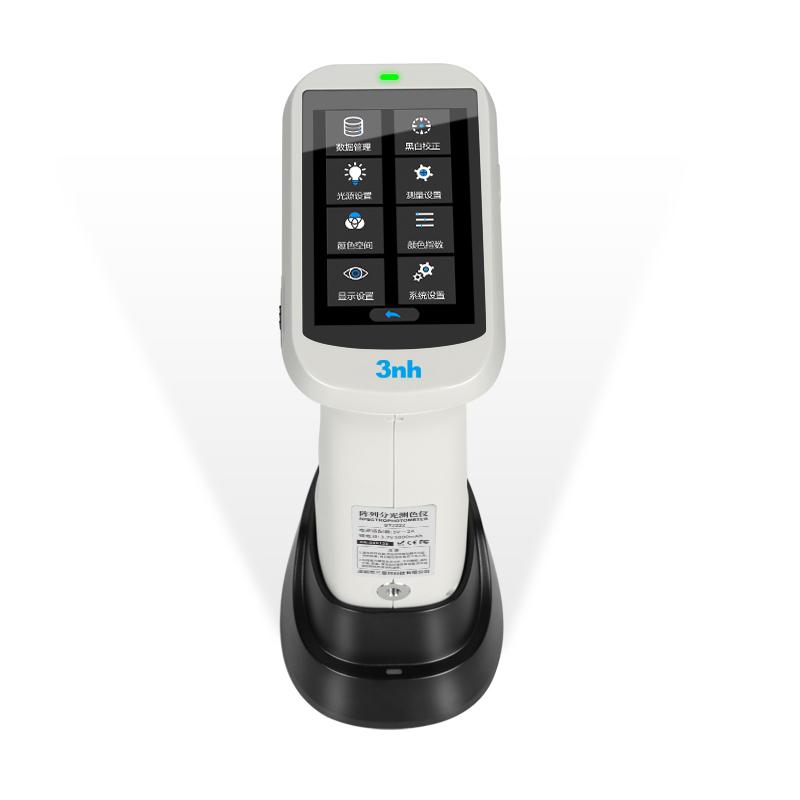

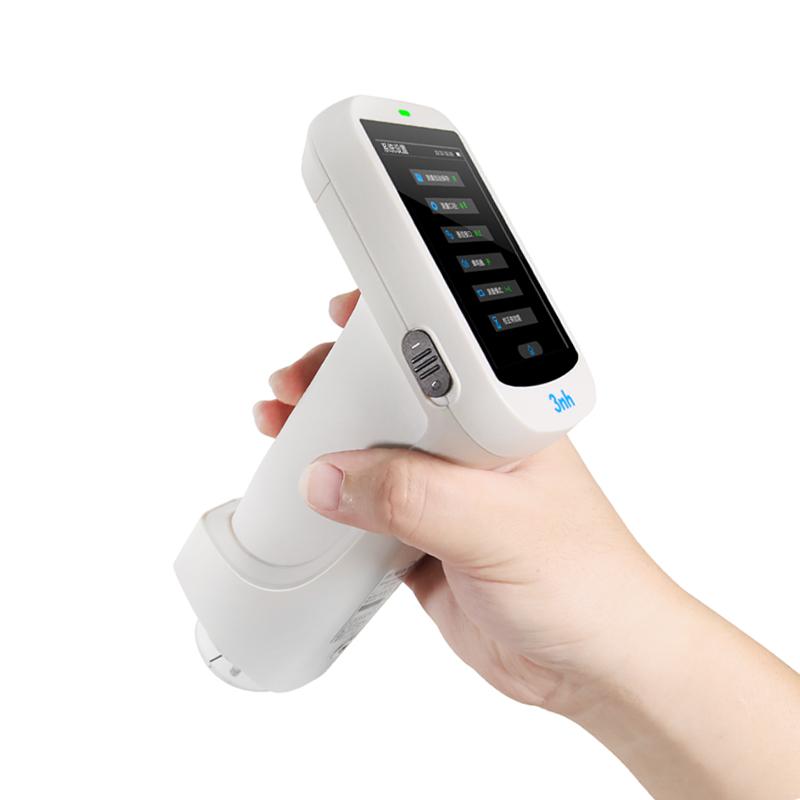

ST2222
Array Colorimeter
Equipped with φ 8mm (platform + tip), φ 4mm (platform + tip), 1x3mm five measurement diameters, suitable for surface color measurement, sexual repeability Delta E * ab < 0.018, camera framing, touch screen operation.
product description
ST2222 is an array Spectrophotometer developed by 3nh using its own spectrometric core technology. It uses a built-in large-area silicon photodiode array (dual rows of 22 groups) sensor. It has excellent repeatability and inter-stage difference, and the measurement data is continuously stable, accurate and reliable. . The repeatability ÎE*ab of the array Spectrophotometer ST2222 is easily controlled within 0.018, and the inter-stage difference ÎE*ab is controlled within 0.18. The measurement is accurate and can be used for accurate color analysis and transmission in the laboratory.
The ST2222 array Spectrophotometer is equipped with five measurement apertures: Φ8mm (platform + tip), Φ4mm (platform + tip), and 1x3mm. Regardless of whether the sample surface is regular, flat or curved, it can be easily measured and obtain reliable and reliable results. The data with good repeatability are widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical, cosmetics and food industries, scientific research institutions and laboratories.
