China bar Vacuum chuck coater TBJ-A3-DJ3 Wire-wound drawdown Bar Moulding machine

SE
Customized model, Mayer bar motorized film, format 300 * 500mm, optional film thickness 1.5μm~ 171.5μm, external vacuum pump, Vacuum Area 300 * 500mm (can be customized), Vacuum aperture diameter φ 1.2mm
$3646.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-A3-DJ3 Automatic Film ApplicatorSPEC

zy TBJ-A3-DJ3 Automatic Film ApplicatorDetails

zy TBJ-A3-DJ3 Automatic Film ApplicatorPacking list

SKU
NB041929
Application mode
Wire Application
Coating size
300*500mm
Application width
300mm
Application rate
1~ 200mm/s stepless speed change
Application Film thickness range
Optional film thickness 1.5μm~ 171.5μm
Temperature display Accuracy
±2℃
Vacuumpump configuration
external
Vacuum Area
300 * 500mm (can be customized)
Vacuum aperture
F1.2mm
Key control method
Touch screen control
Regulator display Accuracy
±0.001mm
Display
digital display
Total power consumption
2060W
Host Power
220V 50Hz
Dimensions
790*410*520mm
Total Weight
65Kg
Bottom plate material
aluminum alloy
Vacuumpump size
380*180*280mm
Optional accessories
Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for Application substrate Film thickness uneven applications), film width control baffle
Customizable functions
Jet system device, UV solid inclusion device, automatic inking system
TBJ-A3-DJ3
Automatic Film Applicator
Customized model, Mayer bar motorized film, format 300 * 500mm, optional film thickness 1.5μm~ 171.5μm, external vacuum pump, Vacuum Area 300 * 500mm (can be customized), Vacuum aperture diameter φ 1.2mm

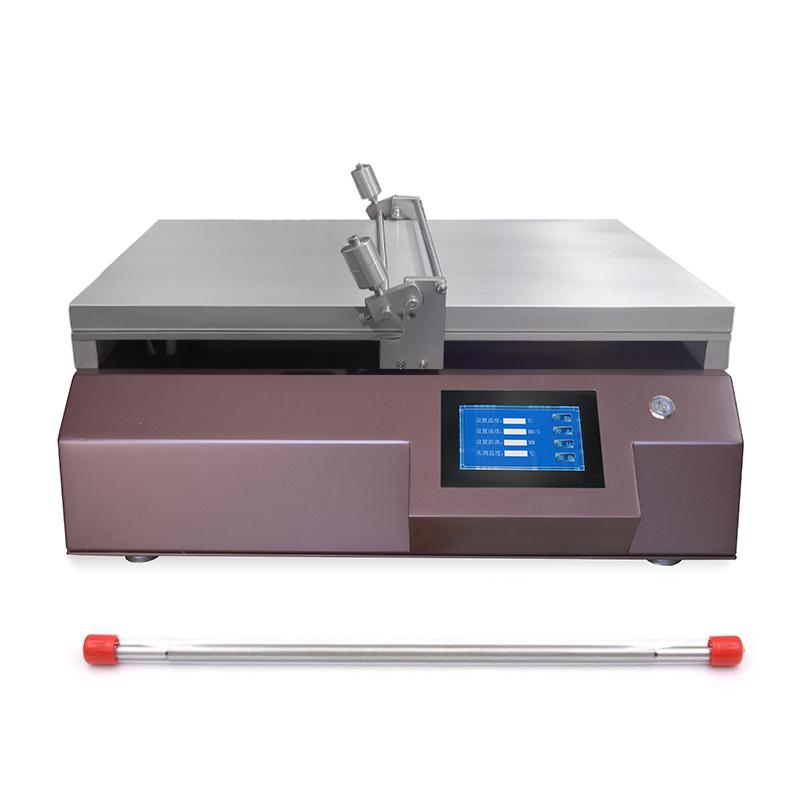

China bar Vacuum chuck coater TBJ-A3-DJ3 Wire-wound drawdown Bar Moulding machine Picture

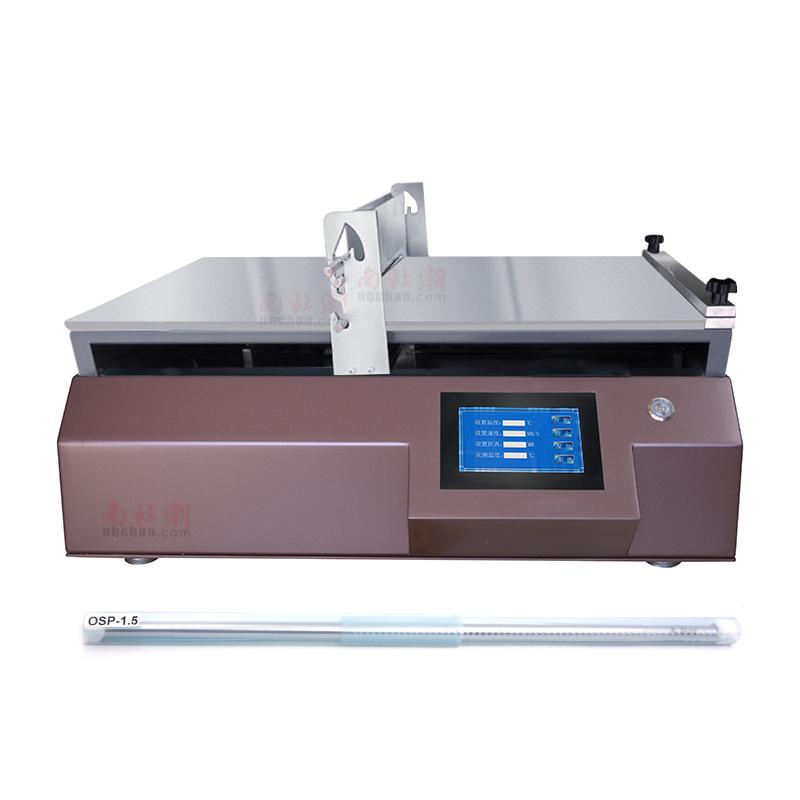

CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 1

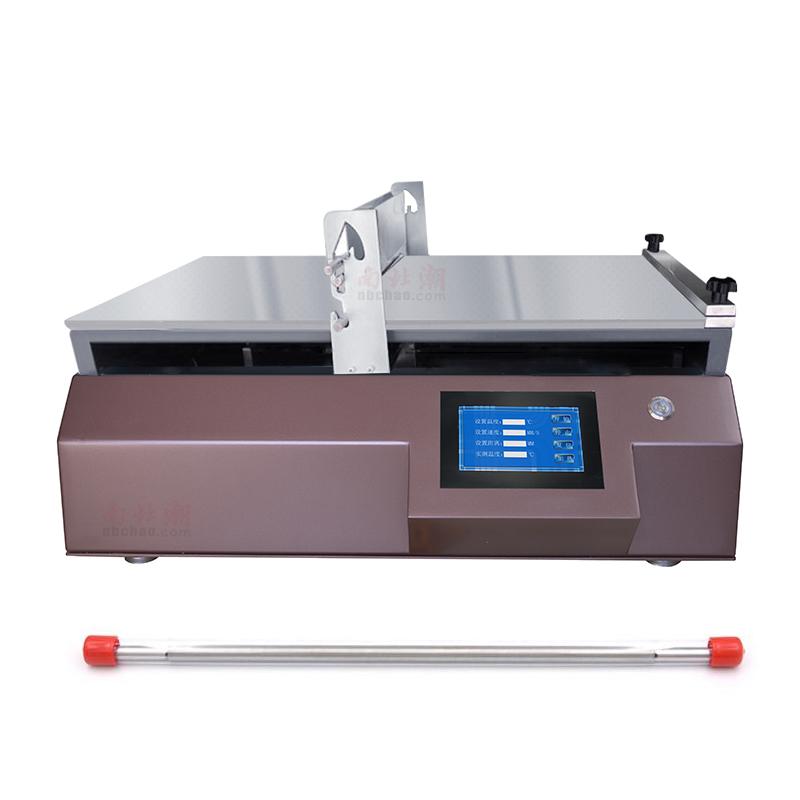

CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 2

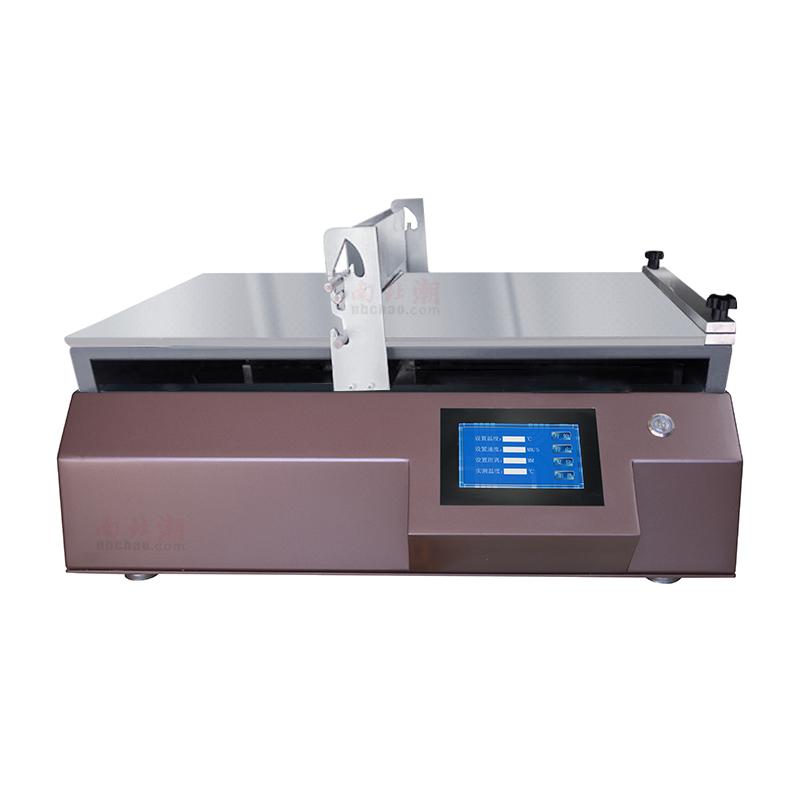

CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 3



CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 4



CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 5



CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 6

CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 7



CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 8



CHINA wide-wound drawdown Rod vacuum adsorption Small Film Applicator TBJ-A3-DJ3 Mayer-Rod Moulding Machine Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QSubstrate: pet substrate Film thickness: 130~ 150μm
A With this TBJ-X2-XB metering rod & doctor blade vacuum adsorption function, vacuum adsorption fixed PET film substrate, wire rod thin coating, doctor blade thick coating, doctor blade thickness adjustable
