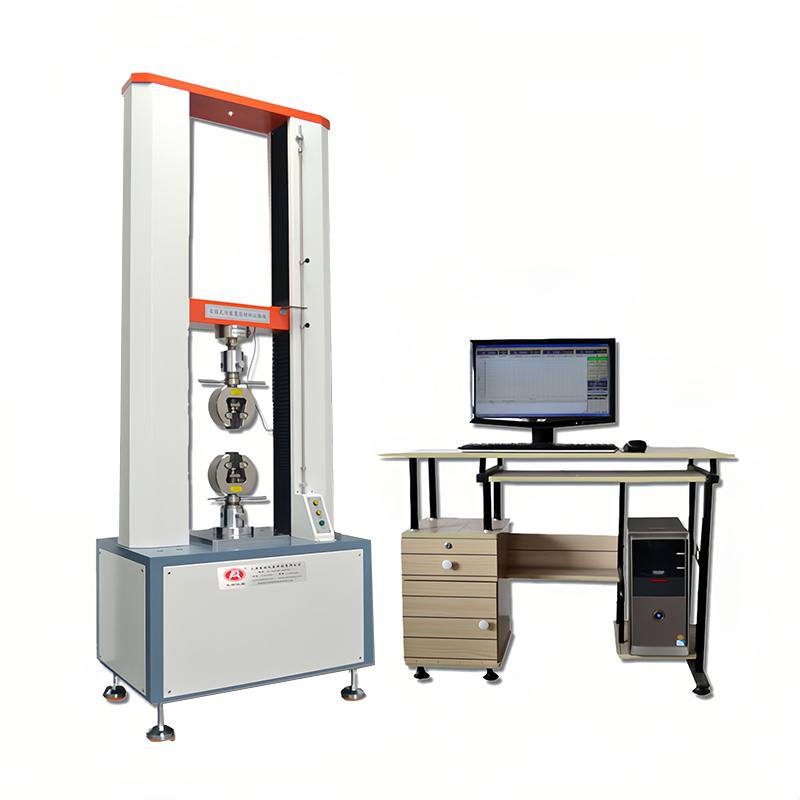

FARI FR-100C Computerized servo universal material Tensile Tester 20T with computer

FR-100C

Computerized servo universal material Tensile Tester

Equipped with a computer, it integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation, tensile strength and elasticity modulus, and the load is not greater than 20T.

Device overview

FR-100C computerized servo multifunctional material Tensile Testing Machine is a new type of material testing machine combined with electronic technology and mechanical transmission. It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. It is easy and convenient to operate, and is especially suitable as a testing instrument for controlling product quality on the production line. This series of models is mainly suitable for non-metallic and metallic material tests with a test load of less than 20T.

The main function

 It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, tension, compression, bending, shearing, peeling, tearing, two-point extension (an extensometer is required), etc. Various tests.

main feature

The controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer needs to be added), tensile strength and elastic modulus, and automatically counts the results; automatically records the force value or elongation of the maximum point, breaking point, and designated point; uses a computer for testing Dynamic display of the process and test curves, and data processing. After the test, the graph processing module can be used to enlarge the curve for data re-analysis and editing, and can print reports. The product performance has reached the international excellent level.

Standards

"GB/T16491-1996 Electronic Multifunctional Testing Machine"

Software Features

1. Software function introduction of computer-controlled material testing machine

A. Test standard modular function: Provide users with test settings for the required application, covering GB, ASTM, DIN, JIS, BS... and other test standard specifications.

B. Test product information: Provide users with setting all test product data, one-time input for long-term repeated use. And the formula can be added and modified to improve the test data.

C. Dual report editing: It is completely open to users to edit reports, allowing Testers to choose their preferred report format (the built-in EXCEL report function is added to the test program to expand the pattern of single professional reports in the past)

D. Each length, force unit, and display digit adopt a dynamic interchange method, the force unit is T, Kg, N, KN, g, lb, and the length unit is mm, cm, inch.

E. Auto Scale, which can make the graph display in a better scale. And it can dynamically switch real-time graphics during the test. It has load-displacement, load-time, displacement-time, stress-strain load-2-point extension diagrams, and multi-curve comparison.

F．The test results can be output in the form of data in EXCEL format.

G. After the test, it can be automatically archived or manually archived. After the test is completed, it can automatically calculate the maximum force, upper and lower yield strength, ring method, step-by-step approach method, non-proportional extension strength, tensile strength, compressive strength, and fixed elongation at any point Strength, constant load extension, elastic modulus, elongation, maximum value, minimum value, average value, net energy, total energy, flexural modulus, breaking point displacement x% load, breaking point load X% displacement, etc. . Backup: Test data can be saved in any hard disk partition. .

H．The software has the demonstration function of historical test data.

2. Fully computer controlled material testing machine accessories

A. A one-year warranty and a Chinese operation manual.

B. A set of standard tension clamps will be presented randomly.

C. One piece of special test software for tensile machine.

3. Fully computer-controlled material testing machine can test items

Ordinary test items: (ordinary display value and calculation value)

●tensile stress ●tensile strength

●Tear strength ●Elongation at break

●Stress at constant elongation ●Elongation at constant stress

●Constant Stress Value ●Tear Strength

●Force at any point ●Elongation at any point

●Extraction force ●Adhesive force and peak calculation value

Packing list：Host X1, manual X1, certificate X1, warranty card X1, standard tensile fixture X1 (group), special test software for tensile machine X1, desktop computer X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
