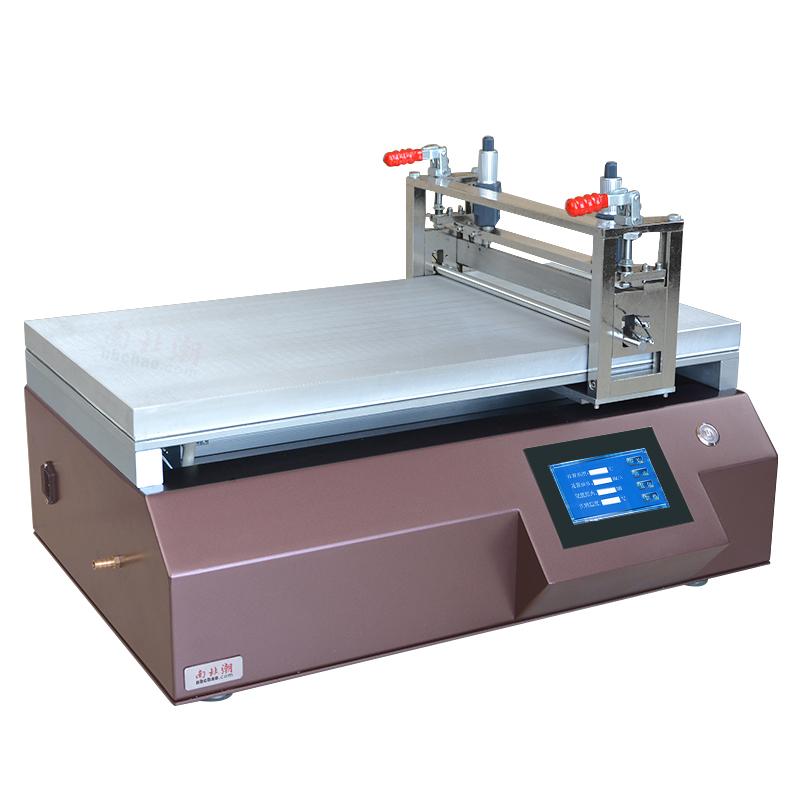

China TBJ-X5-DJ3 Vacuum chuck Drawdown blade Film Applicator Draw-Down Applicator Servo motor, format 300 * 600mm customized model
SECustomized, 2-300mm/s servo motor, width 300 * 600mm, Drawdown blade Spreader with Vacuum chuck, Heating Temperature range RT +~ 180 ℃
$5667.00/set
PromotionLoading...
Coupon
Model：
TBJ-X5-DJ3
zy
Manufacturer authorization
Similar products
-
CHINA TBJ-X5-DJ7 removable drawdown blade heating vacuum adsorption Film Coater Coating size 500 * 1000mm$ 10642.00SE -
HuiNuo TM2300 drawdown blade heating Vacuum chuck Film Applicator, small precision coater$ 4268.00SE -
HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm$ 6289.00SE -
HuiNuo TM 2300/04 drawdown blade heating vacuum adsorption laboratory Film Applicator Effective Spreader area 400 * 400mm$ 5978.00SE -
HuiNuo TM 2300/03 drawdown blade Vacuum chuck Automatic Film Applicator Effective area 650x400mm$ 6133.00SE
zy TBJ-X5-DJ3 Automatic Film ApplicatorSPEC
zy TBJ-X5-DJ3 Automatic Film ApplicatorDetails
zy TBJ-X5-DJ3 Automatic Film ApplicatorPacking list
- SKU
- NB041941
- Spreader Accuracy
- ±0.003mm
- Spreader thickness range
- 0~10Mm drawdown blade can be lifted
- Coating speed
- 2~ 300Mm/s servo motor
- Coating size
- 300*600mm
- Vacuum Area
- 300 * 600Mm (can be customized)
- Heating Temperature range
- RT+~180℃
- Temperature Accuracy
- ±3℃
- Vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- Host Power Supply
- 220V 50Hz
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
TBJ-X5-DJ3
Automatic Film Applicator
Customized, 2-300mm/s servo motor, width 300 * 600mm, Drawdown blade Spreader with Vacuum chuck, Heating Temperature range RT +~ 180 ℃
Optional
|
|
|
FAQ
QUse your Glue spreader on the film and apply our glue to see if it can be evenly applied?
A
Yes, vacuum adsorption ensures that the film is flat, and the glue should consider its temperature and viscosity relationship. The specific application environment is welcome to communicate with NBchao.
