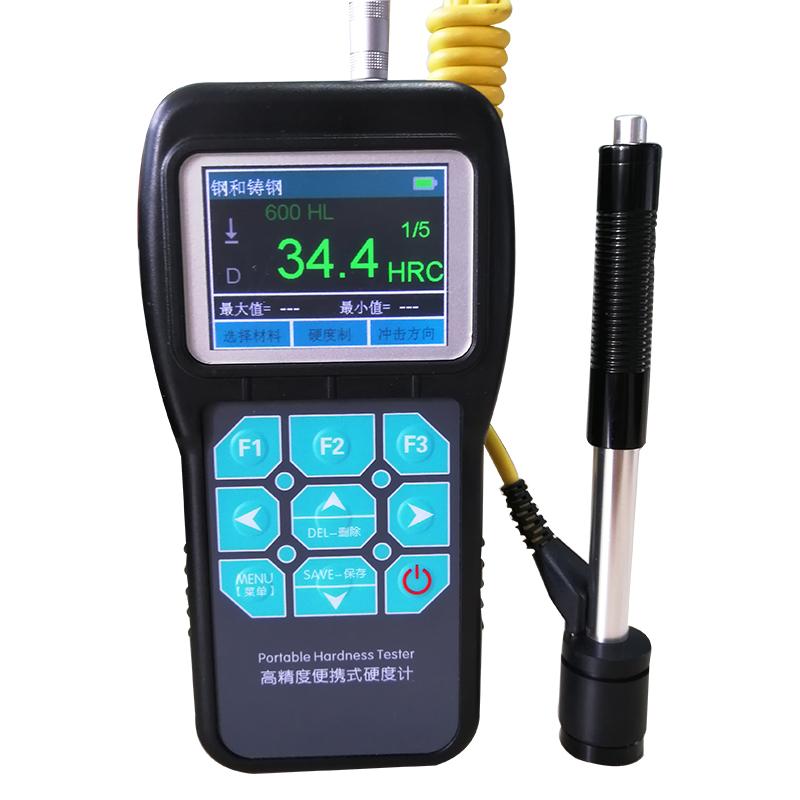

KAIRDA NDT230 + Leeb Hardness Tester

NDT230+

Color screen Hardness Gauge

Added four kinds of materials hardness of HRA, HB, Hv, double true color screen, with USB communication interface, plastic alloy shell, can set the operator code, with "user material" function.

product description

NDT230+ color screen Hardness Tester is an innovative design based on the company's in-depth research on the principle of Leeb hardness measurement. On the basis of the existing data sheet, four kinds of material hardness scales have been added. What's more worth mentioning is that the "User Material" function has been developed to meet the user's needs for testing special materials! The range of use of the Leeb Hardness Tester has been expanded.

Application

• Installed mechanical or irreversible assembly parts

• mold cavity, core

• heavy workpiece

• Failure Analysis of Pressure Vessel, Turbine Generator Set and Its Equipment

• Workpieces with very small test spaces

• Bearings and other parts

• Formal original records of test results are required

• Material classification of metal material warehouse

• Rapid inspection of multiple measurement locations in large workpieces

Features

• According to the principle of Leeb hardness measurement, all metal materials can be tested with high precision

• According to the market demand, four kinds of material hardness values have been added. D-type impact device alloy tool steel has added HRA and HB; cast aluminum alloy HV item; C-type impact device has added cast aluminum alloy HV item; it has the function of "user material", theoretical Can test the hardness of all metal materials

• Easy to switch to all hardness scales (HL, HB, HRB, HRC, HRA, HV, HS), parallel conversion of each hardness scale measurement value

• Large-screen true-color LCD display and WINDOWS interface are adopted, the content is vivid and rich, and the information is clear and intuitive

• Menu-style operation, easy to operate

• The brightness of the LCD can be adjusted arbitrarily, which is convenient for use in dim light environments

• USB communication interface, convenient and fast for data exchange and parameter setting with PC

• One host can be equipped with 7 different impact devices, and the type of impact device can be automatically identified, so there is no need to recalibrate when replacing

• It can store up to 600 groups (impact times 32~1) of hardness measurement data. Each set of data includes single measurement value, average value, measurement date, impact direction, times, material, hardness system and other information

• The upper and lower limits of the hardness value can be set in advance, and the alarm will be given automatically if it exceeds the range, which is convenient for users to test in batches

• Plastic alloy casing, high strength, suitable for harsh operating environments, anti-vibration, shock and electromagnetic interference

• The power supply adopts integrated lithium battery, which can work continuously for no less than 100 hours, and has power-saving functions such as automatic sleep and automatic shutdown

• There is a remaining power indicator icon on the LCD to remind the user to charge in time

• True color screen, dual display, the screen can simultaneously display the Leeb value and any other hardness value commonly used by customers.

• The probe is hot-swappable, plug and play. No need to plug in the probe first and then turn it on.

• 5 custom material curves can be customized.

• Operator code can be set.

• With indication software calibration function

• It can be equipped with powerful microcomputer software, which has rich functions such as transmission of measurement results, measurement value storage management, measurement value statistical analysis, printing measurement value reports, etc., to meet the higher requirements of quality assurance activities and management

• Design basis standard: "Technical Conditions for Leeb Hardness Tester" JB/T 9378-2001.

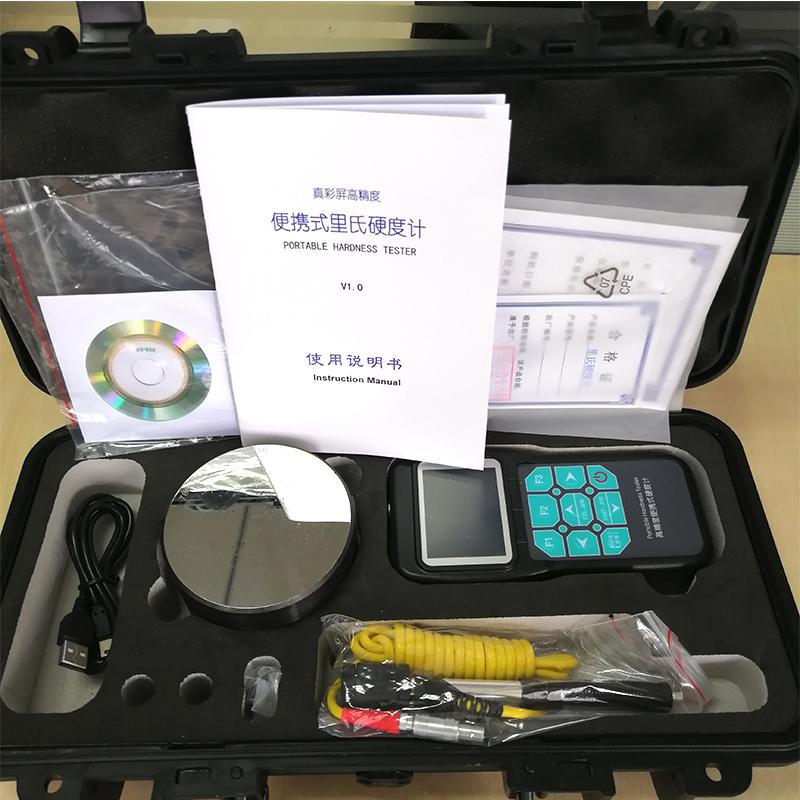

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
