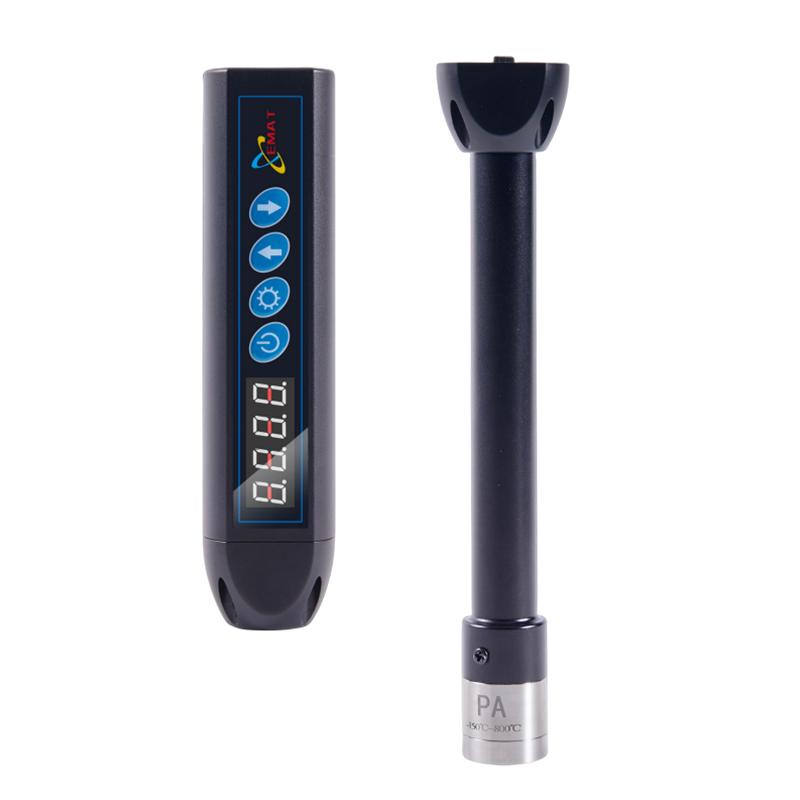

KAIRDA NDT370 Pen Electromagnetic Ultrasonic Thickness Gauge with High Temperature Probe

SE
Measurement range 1~ 240mm, high temperature probe temperature up to 800 ℃, with A/B scanning function, no contact without sanding, can penetrate coatings, USB communication, wifi wireless connection.
$4579.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT
Similar products

KairDa NDT370 (High Temperature Probe) Pen electromagnetic ultrasonic Thickness GaugeSPEC

KairDa NDT370 (High Temperature Probe) Pen electromagnetic ultrasonic Thickness GaugeDetails

KairDa NDT370 (High Temperature Probe) Pen electromagnetic ultrasonic Thickness GaugePacking list

SKU
NB042576
Can detect workpiece material
Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, bowl and other conductor materials
Receive gain
s100dB
Measurement range
1~ 240.0mm (Measurement Range depends on the material)
Highest resolution
0.01mm
High temperature probe
< 800 ℃, 4MHz, mainly used to detect ferromagnetic fine-grained materials such as low-carbon steel
Error range of measurement equipment
Film thickness < 10mm, error + 0.05mm; Film thickness > 10mm error ± (0.01 + H/200) mm (H is the workpiece Film thickness value)
High temperature probe operation temperature range
Low carbon steel (or other ferromagnetic steel): -150~ + 800C austenitic stainless steel (or other non-ferromagnetic materials): -150~ + 150C
Minimum diameter (curvature) of workpiece can be detected
8 mm
Waveform display
Positive half wave, negative half wave, radio frequency wave
Power
Built-in battery, working time > 6 hours, can be used with power bank
data storage
Can store A scan data, B scan data, unlimited storage quantity
Measurement mode
Automatic mode, manual mode, semi-automatic mode
Sound wave type
Shear wave (shear wave)
Communication interface
USB communication, software lifetime free upgrade
Reverse speed of sound
Reverse the speed of sound when the speed of sound of the material is unknown
Host Weight
250G (with normal temperature probe)
Host storage
Storage temperature range 0~ + 40C
High temperature compensation
With high temperature sound speed automatic compensation function
Sound wave speed adjustment range
1000~9999m/s
Host normal operation temperature range
-10~+50°C
NDT370 (High Temperature Probe)
Pen electromagnetic ultrasonic Thickness Gauge
Measurement range 1~ 240mm, high temperature probe temperature up to 800 ℃, with A/B scanning function, no contact without sanding, can penetrate coatings, USB communication, wifi wireless connection.

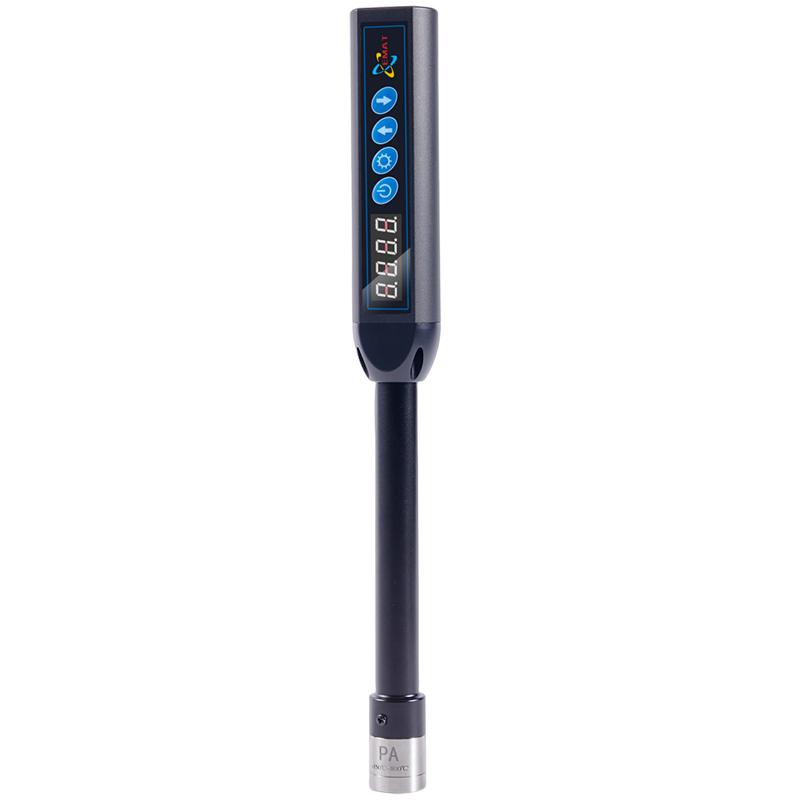

KAIRDA NDT370 Pen Electromagnetic Ultrasonic Thickness Gauge with High Temperature Probe Picture

Introduction

Pen Electromagnetic Ultrasonic Thickness Gauge is an ultra-small, non-contact thickness Measurement Instrument without acoustic coupling agent, which can realize the thickness measurement of metal or magnetically permeable substances.

Pen-type electromagnetic ultrasonic Thickness Gauge brings together modern high-tech such as ultrasonic flaw detection, thickness measurement, computer, electronics, mold, technology, etc., and realizes the combination of these high-tech. It provides the industry with a flaw detection and thickness measurement integrated machine with more superior performance and more powerful functions.

Features

  • WIFI wireless connection

  • Can measure up to 800° high temperature

  • USB communication online transmission

  • No contact, no grinding

  • Coupling-free, coating-penetrating

  • Measure magnetic and non-magnetic gold

  • Metal material built-in material sound velocity

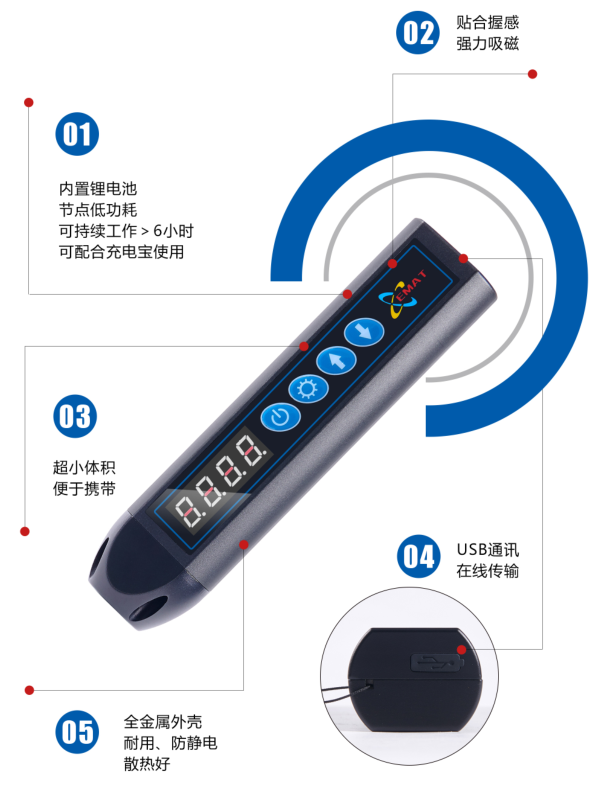

Product Structure

KAIDA NDT370 (High Temperature Probe) Pen Type Electromagnetic Ultrasonic Thickness Gauge Details Figure 1

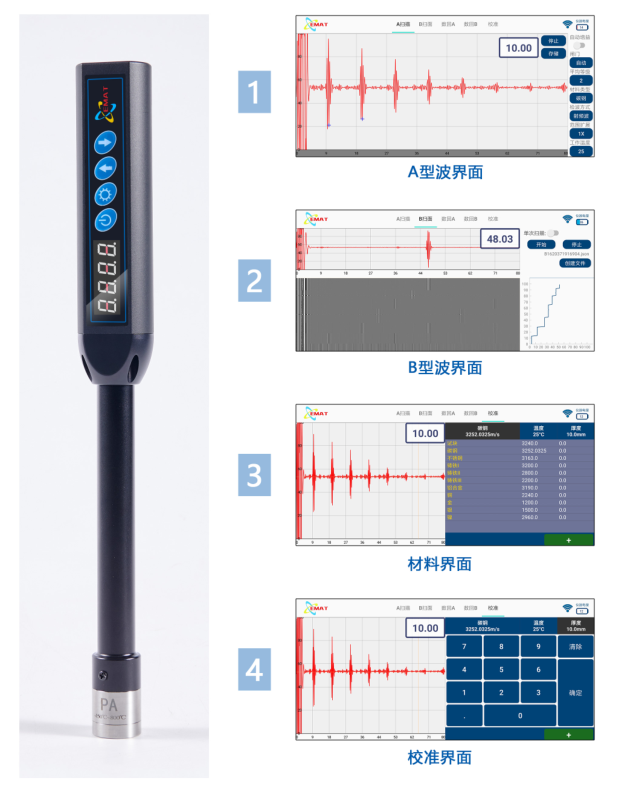

Features A/B scanning software to detect internal defects

The software has real-time waveform display and A/B scanning functions, which can detect internal corrosion.

KAIDA NDT370 (High Temperature Probe) Pen Type Electromagnetic Ultrasonic Thickness Gauge Details Figure 2

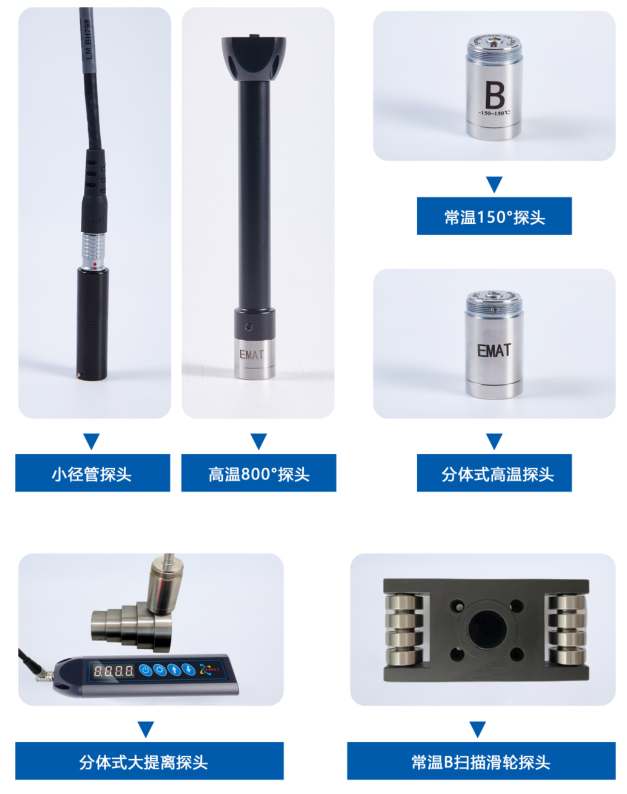

Optional probe

Optional probe


FAQ
QWe need to measure the thickness of different materials of equipment, including stainless steel and carbon steel, but also to detect internal corrosion, which instrument to choose?
A KAIRDA NDT370, it can measure carbon steel, stainless steel and other metal materials, with A/B scanning function can display the internal waveform in real time, directly see the corrosion thinning, one machine multi-purpose.
QIn addition to thickness measurement, can we also perform defect detection?
A Yes! It has built-in A/B scanning software, which can display waveforms in real time, detect pipeline internal corrosion, defects, etc. One machine is multi-purpose, especially suitable for in-service equipment inspection in the petrochemical and power industries.
