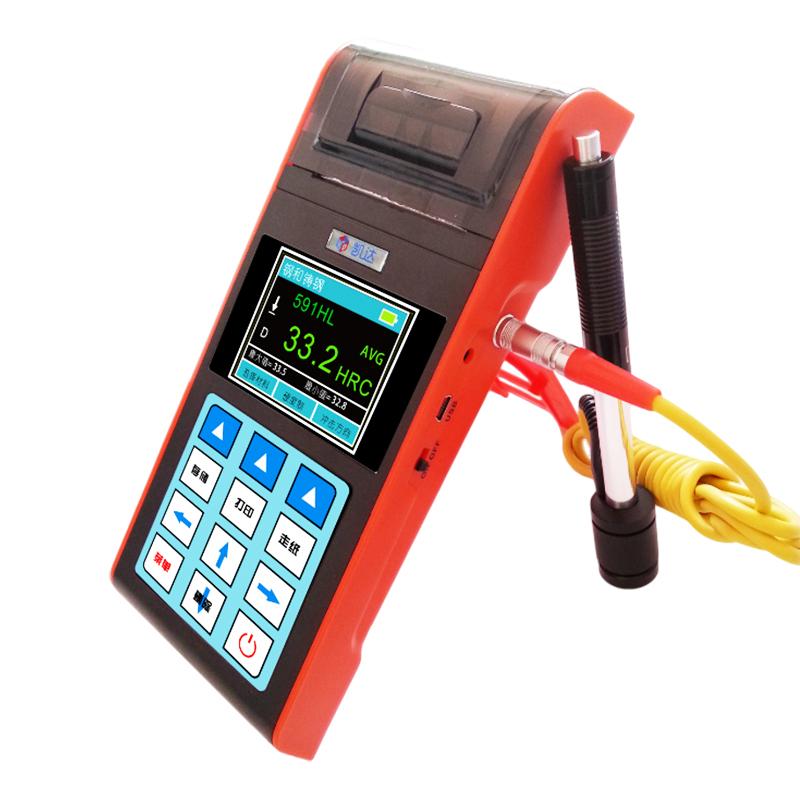

KAIRDA NDT290S + Shore Hardness Gauge built-in thermal printer for rolls

NDT290S+

Shore Hardness Gauge for rolls (printing integrated)

For roll Hardness detection with printing function, can customize Linear dispersion, color screen large screen, display Shore value and Richter value at the same time, built-in large-capacity lithium battery.

Introduction

Measures steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel, added cast steel roll, forged Steel roll, cast iron roll material. It is used for roll hardness testing with printing function, adding roll Hardness Tester for "cast steel, forged steel, cast iron" materials, and integrating all functions of general Leeb Hardness Tester, one machine with multiple functions, easy to operate. For special materials, the user material function of this color screen roll Hardness Tester is based on the Leeb hardness collection source, designed with curve fitting technology, users can customize the curves of various special materials required, and can store 5 kinds of material data in total, solving common problems The limitations of the Leeb Hardness Tester for measuring materials.

Features

• It adopts D-type high-precision impact device with color screen and large-screen OLED 128×64 dot matrix display, which is rich in information and intuitive. It can simultaneously display the Leeb value and any other hardness scale (Shore (HS), Brinell (HB), Rockwell (HRC/HRB/HRA), (HV) Vickers), no dead angle, easy to operate and read value;

• The fully sealed metal case is durable and has excellent resistance to vibration, shock and electromagnetic interference.

• Professionally measure the Shore hardness value of rolls (newly added cast steel rolls, forged steel rolls, and cast iron rolls)

• 7 kinds of hardness values including Shore (HS), Leeb (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV) can be measured once and converted automatically

• It has the software calibration function of the power-on indication value to ensure that the data is applicable and accurate under different specifications and standards of any industry.

• 7 different impact devices can be selected, no need to calibrate when replacing, automatic identification

• The upper and lower values and over-limit alarm can be set in advance

• Can store 600 sets of measured values Full Chinese menu, backlight display, easy to operate

• Self-contained printing, can also be equipped with powerful microcomputer software, with rich functions such as transmission of measurement results, measurement value storage management, measurement value statistical analysis, printing measurement value reports, etc., to meet the higher requirements of quality assurance activities and management;

• Large-capacity lithium battery can work continuously for no less than 200 hours (when printing is not turned on), automatic sleep, automatic shutdown and other power-saving functions;

Applications

• Roll industry (cast steel roll, forged steel roll, cast iron roll)

• Especially suitable for on-site hardness testing of large parts and non-detachable parts

• mold cavity

• heavy workpiece

• Failure Analysis of Pressure Vessel, Turbine Generator Set and Its Equipment

• Workpieces with very small experimental space

• Bearings and other parts

• Material classification of metal material warehouse

• Rapid detection of multiple measurement locations in large workpieces

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
