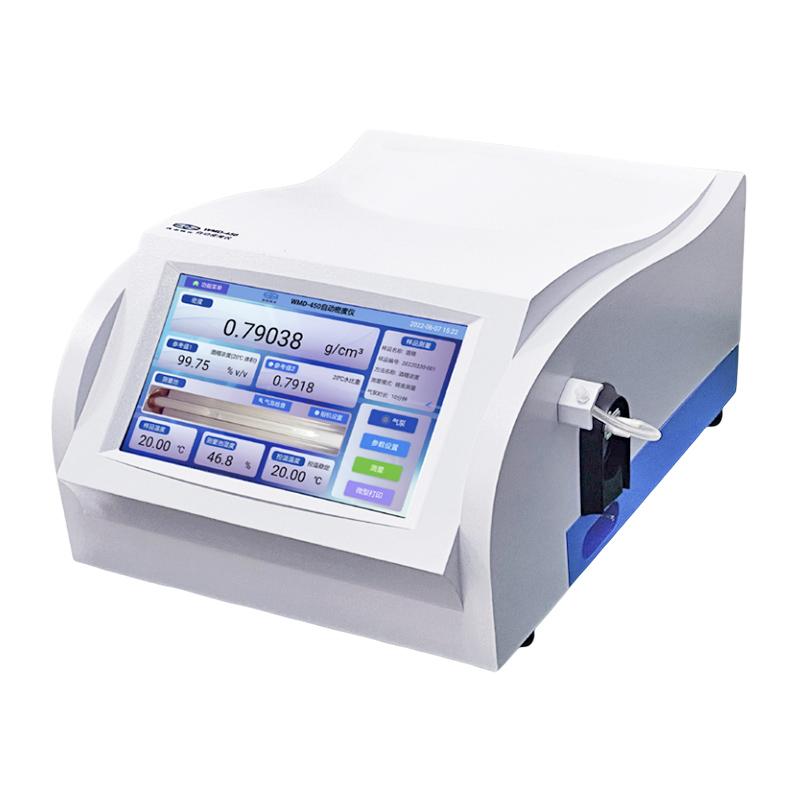

INESA WMD-430 automatic density meter U-tube vibration principle 2~ 3ml injection

WMD-430

Automatic density meter

Using U-tube vibration principle, the injection amount is only 2~ 3ml, built-in multiple Measurement modes and high definition camera observation, Measuring accuracy of +/- 0.0005g/cm ³.

Product principle

• Shanghai Instrument Electro-Optical Automatic Density Meter adopts the U-tube vibration principle for detection. Simply inject a small amount of sample (2∽3ml) into the U-shaped vibrating tube, depending on the vibration frequency of the U-shaped tube combined with calibration data to quickly measure the density of liquid samples.

• WMD series automatic video densitometer, compared with the traditional volumetric method, hydrometer method and balance densitometer method to measure the density and relative density of liquids, has less sample consumption and is quick to use It has the characteristics of high measurement accuracy and good repeatability of indication value.

Features

• Operation interface: color Android touch screen display, high-definition camera video detection is more intuitive and convenient

• Small injection volume: only 2~3ml of the sample to be tested needs to be consumed for each measurement, saving resources and reducing costs

• Measurement modes: Built-in density, relative density, general, chemical, petroleum and other measurement modes

• Temperature control: Built-in Peltier temperature control device, accurate measurement of sample density can be achieved under precise temperature control

• Rapid detection: You can choose the density rapid pre-test mode or accurate measurement mode, which is convenient for customers to use

• Instrument calibration: Error verification is simple, and the instrument can be calibrated with only dry air and distilled water

• Communication interface: Built-in network module, equipped with a variety of communication interfaces, data can be saved, exported and printed

• User management: four levels of user management authority, data reporting, electronic signature, and optional audit trail function

Standard application

Food industry: GB/T5009.2-2003 "Determination of Relative Density of Food", GB5526-1985 "Vegetable Oil Inspection Specific Gravity Determination Method", GB/T10345-2007 "Analytical Methods for Liquor", GB/T 4928-2008 "Analytical Methods for Beer", GB/T 15038-2006 "General Analytical Methods for Wine and Fruit Wine"

GB/T 29617 -2013 Test method for determination of liquid density, relative density and API specific gravity by digital density meter

GB/T 2013 -2010 Density determination of liquid petrochemical products (U-shaped vibrating tube method)

SH/T 0604 -2000 Density determination of crude oil and petroleum products (U-shaped vibrating tube method)

SN/T 2383 -2009 Liquid chemicals -- Determination of density and relative density -- Digital density meter method

DB/T 1231 -2010 Methods for determining the density of chemical products - Intelligent liquid density meter method

ASTM D4052 - 11 Standard Test Method for Density, Relative Density, and API Gravity of Liquids by Digital Density Meter and API degree test method )

ASTM D5002 - 13 Standard Test Method for Density and Relative Density of Crude Oils by Digital Density Analyzer

ASTM D3505 - 12e1 Standard Test Method for Density or Relative Density of Pure Liquid Chemicals (test method for the density or relative density of pure liquid chemicals).

ISO 12185 : 1996 Crude petroleum and petroleum products-Determination of density-Oscillating U-tube method IP 559-2008 Determination of density of middle distillate fuel hand Boosting swing U-tube densitometer method)

Industry applications

Beverage industry:Measure sugar concentration, fruit juices, herbal teas, food additives, soft drinks quality control

Food industry:Quality control of grape juice, tomato juice, fructose syrup, vegetable oil and soft drink processing

Winemaking industry:Detection of alcohol concentration of liquor, rice wine, red wine, beer, fruit wine, rice wine, etc

Petrochemical industry:Crude oil API index, gasoline and diesel density detection, additive mixing process monitoring

Chemical industry:Chemical urea, detergent, ethylene glycol, acid, alkali and ammonia concentration testing

Industry:Quality control of APIs and intermediates to determine the specific gravity and density of agents

Flavors and fragrances:Raw material verification of food flavors, daily flavors, tobacco flavors, and food additives

Mechanical Engineering:Cleaning agent testing in metalworking, machine building, automotive industry, electrical and electronic appliances

Inspection Agency:Measurement of liquid density by standard laboratories, statutory testing institutions, and third-party testing

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
