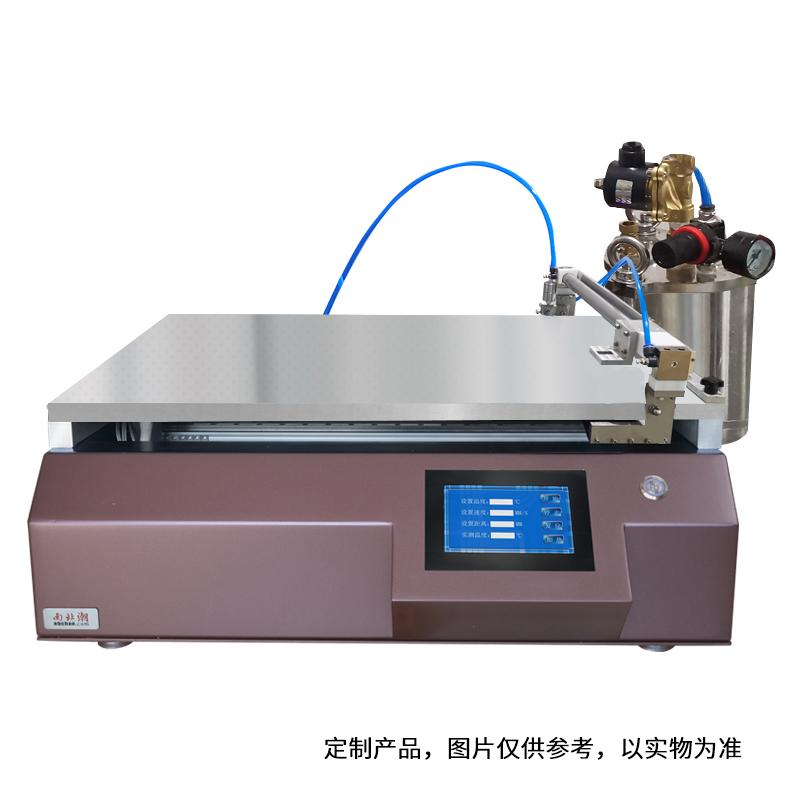

China TBJ-X3-DJ8 Automatic lame plating Vacuum chuck Film Applicator lame plating machine
SE
TBJ-X3-DJ8
zy TBJ-X3-DJ8 Automatic Film ApplicatorSPEC
zy TBJ-X3-DJ8 Automatic Film ApplicatorDetails
zy TBJ-X3-DJ8 Automatic Film ApplicatorPacking list
- SKU
- NB042650
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 350*400mm
- Spreader speed
- Digital display, different speeds
- Vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Heating temperature range
- RT+~200℃
- Temperature Uniformity
- ±3℃
- Customizable functions
- Automatic Inking System
- Feeding principle
- Air source pressure flows out
- Feeding motion mode
- Reciprocating linear motion
- Feeding traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft drive mode
- Timer belt
- Feeding system air source
- 0.6Mpa, can be connected to the trachea of φ8 (self-matching)
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with wall thickness of 4mm
- Feeding barrel configuration
- Safety valve, pressure regulating valve, pressure gauge, air discharge valve
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader), application width control baffle
- Dimensions
- 650*500*550mm
- Dosing drum Volume
- 1L
- Nozzle atomization effect
- Equipped according to customer needs
- Coating method
- Left and right reciprocating lame plating
TBJ-X3-DJ8 automatic spraying and coating machine is a small experimental coating machine with automatic feeding, with automatic spraying function, and the spraying atomization effect can be equipped according to customer needs. It supports heating and vacuum adsorption, the coating format is 300*400mm, and the heating temperature can reach 200°C.
Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted manually are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.
