CHENCHI WDL-05 Intelligent Tensile Tester Tester 500N

SE
Test force range 0~500N, stroke 800mm, touch LCD, Measurement range 2%~ 100% of the maximum test force, Precision is better than indication +/- 1%, can realize tensile strength test.
$1544.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

labchen WDL-05 Tensile TesterSPEC

labchen WDL-05 Tensile TesterDetails

labchen WDL-05 Tensile TesterPacking list

SKU
NB042677
test force
500N
Operation mode
Five-inch color LCD touch screen,
Standard test force
0-500N
Measurement range
2%~ 100% of the maximum test force
Accuracy level
±1%
Test Force Precision
+/- 1% better than indication
Deformation display error
≤±(50+0.15L)
test force
Minimum resolution 0.01N
Displacement measurement
Resolution is 0.01mm
Deformation Precision
Better than +/- 1%
LCD content
Test force, displacement, peak value, running state, running speed, etc
stepless speed regulation
Stepper Motor and Control system
Drive mode
Stepper motor, synchronous belt drive
Motor Power
150W
Speed regulation range
1mm/min~500mm/min
test stroke
800mm (can be customized)
stretch space
800mm (can be customized)
Host size
500*420*1550mm
Test protection function
Overload protection, leakage protection, limit protection
Power supply
220V  50Hz
Weight
About 80Kg
WDL-05
Tensile Tester
Test force range 0~500N, stroke 800mm, touch LCD, Measurement range 2%~ 100% of the maximum test force, Precision is better than indication +/- 1%, can realize tensile strength test.

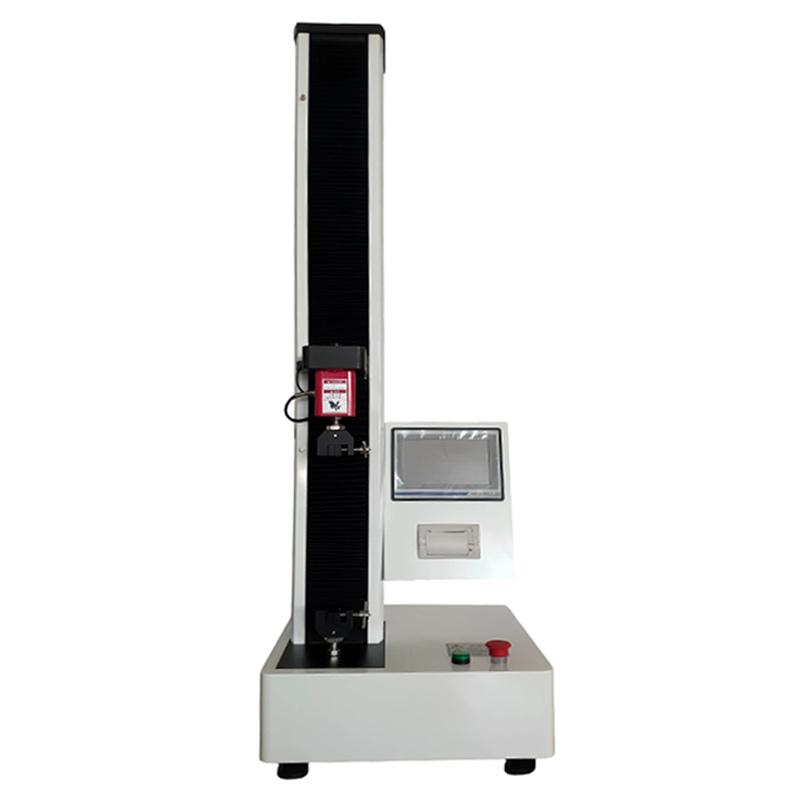

CHENCHI WDL-05 Intelligent Tensile Tester Tester 500N Picture

Introduction

The intelligent Tensile Testing Machine is a film Tensile Testing Machine designed for colleges and universities and scientific research institutes. The design of the main body and auxiliary equipment of the testing machine integrates the excellent technology of our company, with beautiful appearance, convenient operation and stable and reliable performance. Various test methods such as tensile strength, 180°peel strength, and sealing strength can be realized; the system controls the rotation of the servo motor through the speed control system through the Chenchi controller, and after being decelerated by the deceleration system, it goes up through the precision screw auxiliary belt beam, Descending, to complete the tensile mechanical properties test of the sample, no pollution, low noise, high efficiency, and a wide range of speed regulation. The machine is widely used in the inspection and analysis of materials in construction materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries. Good test equipment.

Reference standard

GB 8808, GB/T 1040.1, GB/T 1040.2, GB/T 1040.3, GB/T 1040.4, GB/T 1040.5, GB/T 4850, GB/T 12914, GB/T 17200, GB/T 16578.1, GB/T T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB /T 1130 etc.


FAQ
QPlastic film tensile strength, what instrument should I choose?
A WDL-05 Tensile machine meets GB/T 1040 and other plastic testing standards, can accurately measure tensile strength, simple operation and stable and reliable data.
QThe laboratory needs to do peel strength test, is this instrument suitable?
A WDL-05 supports 180 ° peel strength test, referring to GB/T 2790 and other standards, widely used in tape, Encasement materials and other industries, high accuracy and adjustable speed, can meet the needs of scientific research and Quality control.
