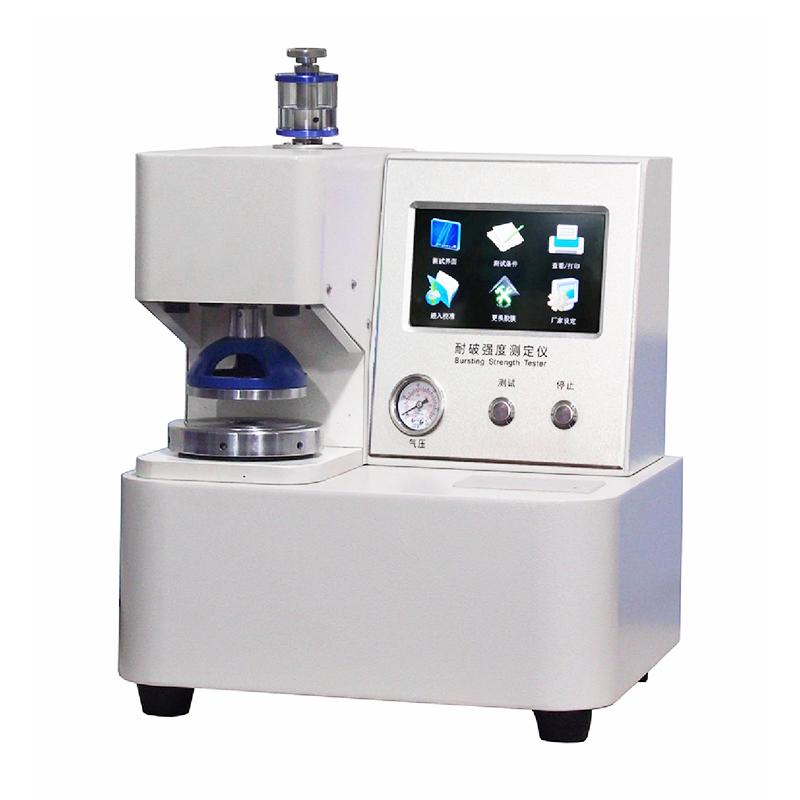

CHENCHI NPD-D Electronic Burst Tester 70~6000kpa
SE
NPD-D
labchen NPD-D Burst resistance meterSPEC
labchen NPD-D Burst resistance meterDetails
labchen NPD-D Burst resistance meterPacking list
- SKU
- NB042681
- Measurement range
- 250~6000KPa (Cardboard), 70~1600KPa (paper)
- Chuck Clamping Force
- ≥ 690kPa (Cardboard), ≥ 430kPa (paper)
- Pressurized oil feeding speed
- 170 +/- 15ml/min (Cardboard), 95 +/- 5ml/min (paper)
- Wax resistance
- 170-220kpa when the raised height is 10 mm; 250-350kpa when the raised height is 18mm
- Complete-built unit Accuracy
- Level 1 (resolution: 1kPa)
- Indication Precision
- ±0.5%F.S
- Hydraulic system sealing
- At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
- Sample clamp ring size
- Upper and lower clamp ring aperture φ31.5 +/- 0.05mm (Cardboard), Upper/Lower aperture φ30.5 +/- 0.1mm, φ33.1 +/- 0.1mm (paper)
- Motor Power
- 90W
- Dimensions
- 500×250×250mm
Introduction
It is mainly suitable for measuring the bursting strength of various cardboards, single-layer and multi-layer corrugated boards, and non-paper materials such as silk and cotton cloth. The instrument is easy to operate, reliable in performance and excellent in technology. It is an indispensable professional equipment for scientific research units, paper manufacturers, packaging industries and quality inspection departments.
Features
The design of the whole machine is simple and compact, with the characteristics of small size and light weight;
Driven by synchronous motor. The transmission is stable and accurate, making the output pressure more accurate;
This machine is equipped with a printer, so that the experimental data can be excluded from the interference of human factors as much as possible.
Using single-chip microcomputer as the core measurement and control means, the instrument has various parameter test, memory, printing and other functions.
LCD display, automatic reset, convenient operation, easy adjustment, stable performance and excellent technology.
According to the standard
ISO2759, ISO2758, GB/T1539, GB454, QB/T1057
