CHENCHI ZTD-10A paper Cardboard Stiffness Meter 38 * 70mm
SEActual measurement size 38 * 70mm, span accuracy +/- 0.1mm, the equipment can achieve self-calibrating, built-in modular integrated thermal printer, manual fixture operation.
$2029.00/set
PromotionLoading...
Coupon
Model：
ZTD-10A
Similar products
labchen ZTD-10A Cardboard Stiffness meterSPEC
labchen ZTD-10A Cardboard Stiffness meterDetails
labchen ZTD-10A Cardboard Stiffness meterPacking list
- SKU
- NB042689
- Specimen size
- 38 * 70mm (standard size)
- Actual measurement size
- 38 * 50mm (standard)
- span range
- Span length 1~ 60mm, 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 8-speed arm adjustable.
- Span Accuracy
- ±0.1mm
- Sensors
- Sensing Accuracy +/- 0.1%
- Resolution
- 0.01mN
- Bending angle
- 0~90 ° stepless adjustable
- Angle measurement
- Single angle per measurement, stepless selection in the range of 0~90 °
- Angular velocity control
- Adjustable 0.5 - 50 °/sec, independently adjustable for three test angles and durations
- Angle Accuracy
- ±0.1
- Film thickness measurement
- Film thickness in (0.01~ 5.0) mm paper and other composite
- Bending time
- Choose different bending times based on material resilience
- Specimen holder
- Manual fixture operation, automatic reset after test completion
- Operating interface
- 7Inch touch screen Operating interface, visual menu operation.
- Clamping method
- Unlimited blessing, nondestructive continuous clamping
- Signal output
- Standard computer signal output, link computer, computer operating platform, can realize document editing (optional)
- Self-calibrating
- Equipment can be self-calibrated, standard calibrating tools
- printout
- Modular integrated thermal printer
ZTD-10A
Cardboard Stiffness meter
Actual measurement size 38 * 70mm, span accuracy +/- 0.1mm, the equipment can achieve self-calibrating, built-in modular integrated thermal printer, manual fixture operation.
Introduction
The Bending Stiffness Tester is a testing instrument for testing the bending stiffness of paper and cardboard. The bending stiffness can be used to test the bending stiffness properties of sheet materials such as films, mica sheets, graphite sheets, and composite materials.
Optional

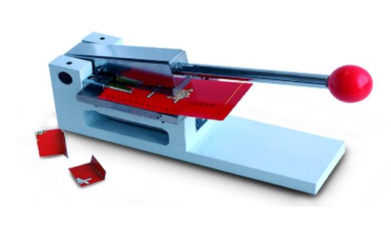

Special sampler for bending stiffness
FAQ
QI want to measure the bending stiffness of Cardboard, which instrument is suitable?
A
ZTD-10A Cardboard Stiffness meter is specially designed to detect the bending stiffness of paper and Cardboard. Measurement range from 15 to 10000mN, high accuracy, can accurately reflect the stiffness performance of the material, suitable for your needs.
QBesides Cardboard, can this instrument also measure Miscellaneous materials?
A
Yes. The ZTD-10A Stiffness meter has a wide range of application scenarios. In addition to paper and Cardboard, it can also be used to detect the bending stiffness of films, mica sheets, graphite sheets and various composites. This is because it has a large adjustable range of span and angle, and can adapt to sheet materials of different thicknesses (0.01-5 mm) and characteristics. It is commonly used in Encasement, printing, New material research and development and other industries.
QI want to measure the bending stiffness of paper, what instrument should I use?
A
ZTD-10A Cardboard Stiffness meter is specially used to detect the bending stiffness of paper and Cardboard, and can also measure film, composite and other sheet materials. The stiffness range is 15~ 10000mN, with high accuracy and simple operation.
QWhat materials is this instrument suitable for measuring?
A
It is suitable for paper, Cardboard, film, mica sheet, graphite sheet and composite, with a thickness range of 0.01 to 5.0mm and an adjustable span of 1 to 60mm, which can be flexibly adapted to different application scenarios, such as Encasement material or electronic component testing.
Standard
