Yunda YD-NZY MIT flexural strength Tester to detect paper fatigue resistance

SE
Color touch screen, measurement range 1~ 99999 times, can be adjusted between 20 and 200 double folds per minute, in line with ISO5626, GB 2679.5 standards.
$1998.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YunDa YD-NZY MIT flexural strength TesterSPEC

YunDa YD-NZY MIT flexural strength TesterDetails

YunDa YD-NZY MIT flexural strength TesterPacking list

SKU
NB042695
Measurement range
1~ 99999 times
folding angle
135°±2°
folding speed
175±10cpm
Tension range
4.9N, 9.81N, 14.7N adjustable
Clip width
15 ± 0.1mm
Fold mouth fillet radius
R0.38mm ± 0.02mm
Folding mouth gap distance
0.25mm 0.50mm; 0.75mm; 1.00mm
Sample size
15Mm wide, longer than 140mm
test group
1 group
interface
5-Inch color touchscreen
output
Thermal printer
Power supply Voltage
220 VAC, 50 Hz
Dimension
330*290*510mm
Weight
25 kg
YD-NZY
MIT flexural strength Tester
Color touch screen, measurement range 1~ 99999 times, can be adjusted between 20 and 200 double folds per minute, in line with ISO5626, GB 2679.5 standards.

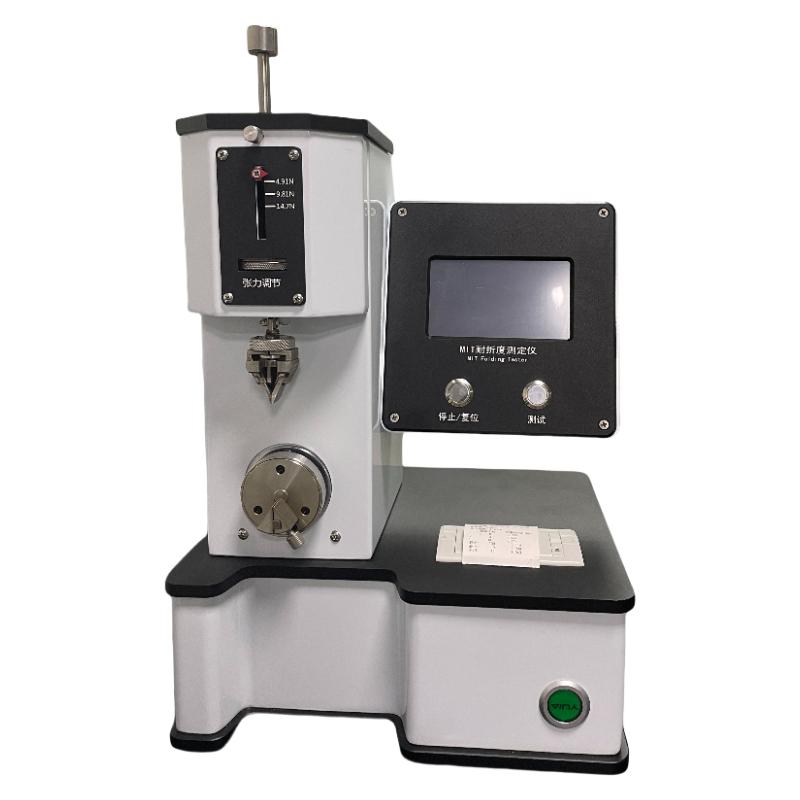

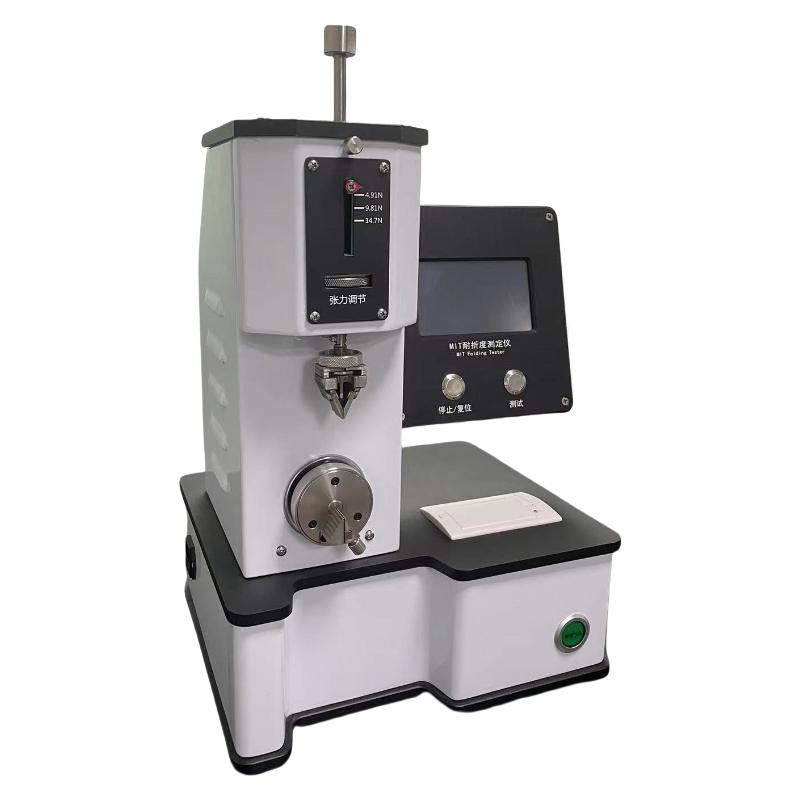

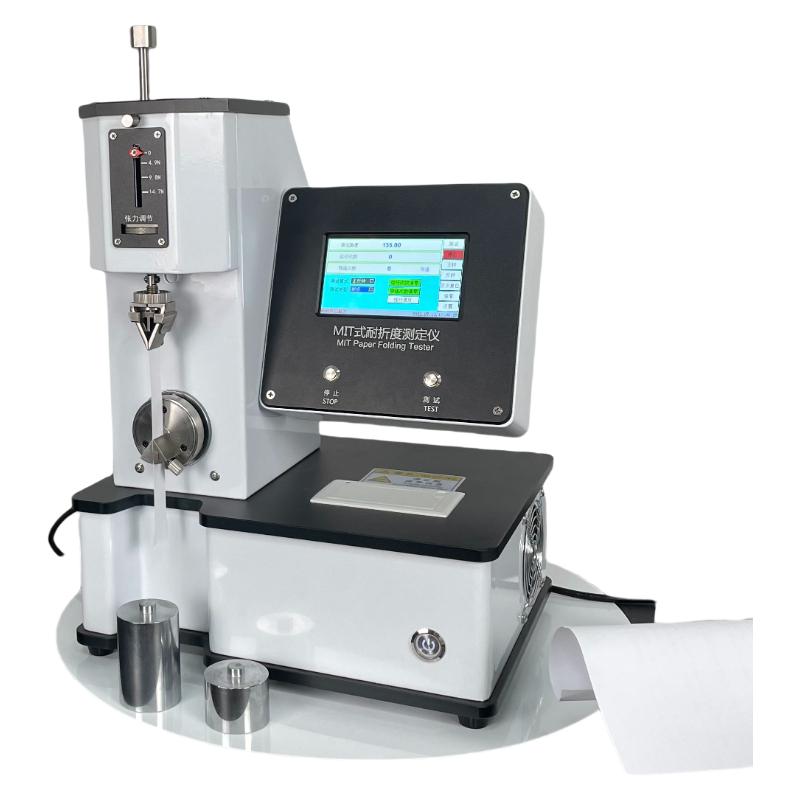

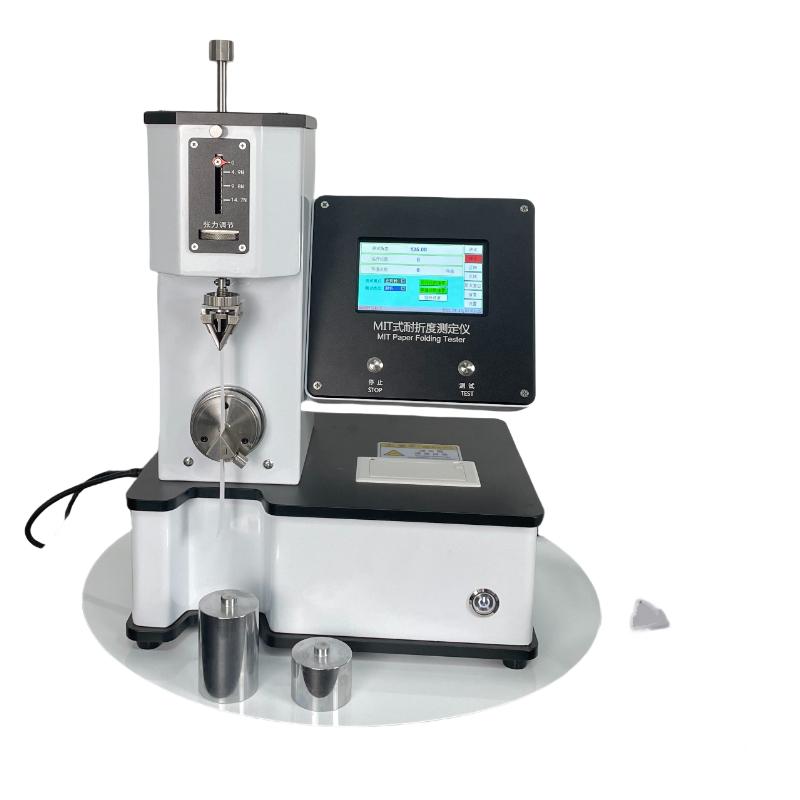

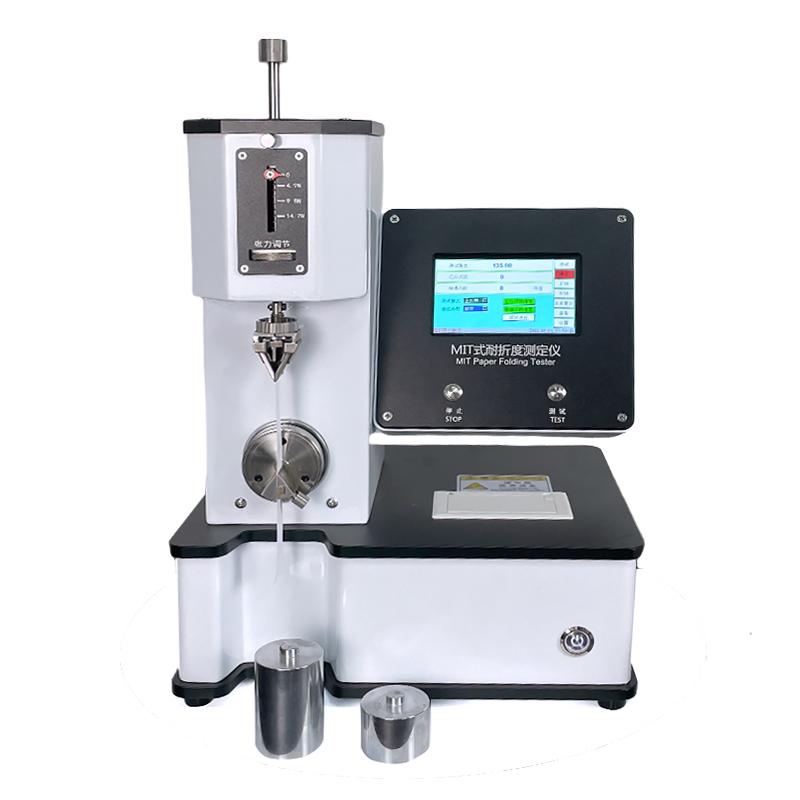

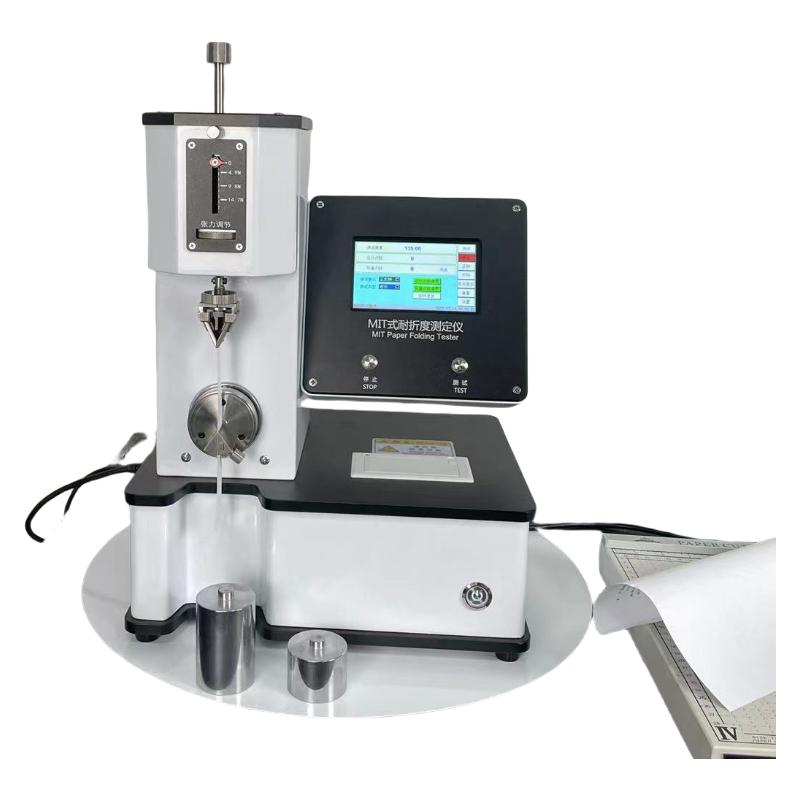

Yunda YD-NZY MIT flexural strength Tester to detect paper fatigue resistance Picture

Introduction

Paper Testing Instrument MIT Folding Endurance Tester is a testing tool used to test the folding fatigue performance of paper, through which the number of times and folding endurance of paper can be tested. The instrument can also be used for testing the folding fatigue resistance of textiles, plastic films, wires and other products. It is a professional testing tool for paper production enterprises, packaging production enterprises, textile production enterprises, wire rod production enterprises, etc. to test product quality.

The MIT folding Tester places a bendable sample under a constant tension load, and then folds the sample to an angle of 135° in either direction at a rate of 175 double folds per minute until the sample breaks at the crease until. The instrument can be adjusted between 20 and 200 double folds per minute, allowing a maximum folding angle of 135 degrees.

Standards

GB 457, GB 2679.5, QB 1049, ISO 5626, TAPPI T 511, ASTM D2176, BS ISO 5626

Application

Paper, cardboard, thin paper, plastic film, metal foil, other, sheet material less than 1mm thick

Features

● Ease of use

● Adjustable between 20 and 200 double folds per minute

● Compress the spring with a weight of corresponding tension to achieve the desired tension

● Color touch screen, easy to operate

FAQ
QI want to test the folding performance of paper, which instrument should I choose?
A Recommended Yunda YD-NZY MIT folding strength meter. It is specially used to detect the number of folds and folding resistance of paper. It meets standards such as GB 457 and ISO 5626. It can simulate the folding fatigue of paper in actual use and help you evaluate the durability of paper.
QCan this instrument be used for Plastic film testing?
A Yes. The Yunda YD-NZY MIT flexural strength meter is suitable for a variety of sheet materials, including Plastic film, metal foil and Spinning & weaving products. It simulates the fatigue performance of materials under repeated folding by adjusting the folding speed and tension, and is suitable for mass inspection in Encasement and film manufacturers.
QMIT folding tester, can the spacing be adjusted, what is the shortest, and the sample is only 5-10cm in length?
A The existing one cannot be adjusted, but relies on the spring to apply pressure. If the tension is ignored, it can be adjusted, or it can be adjusted with an extension sleeve.
