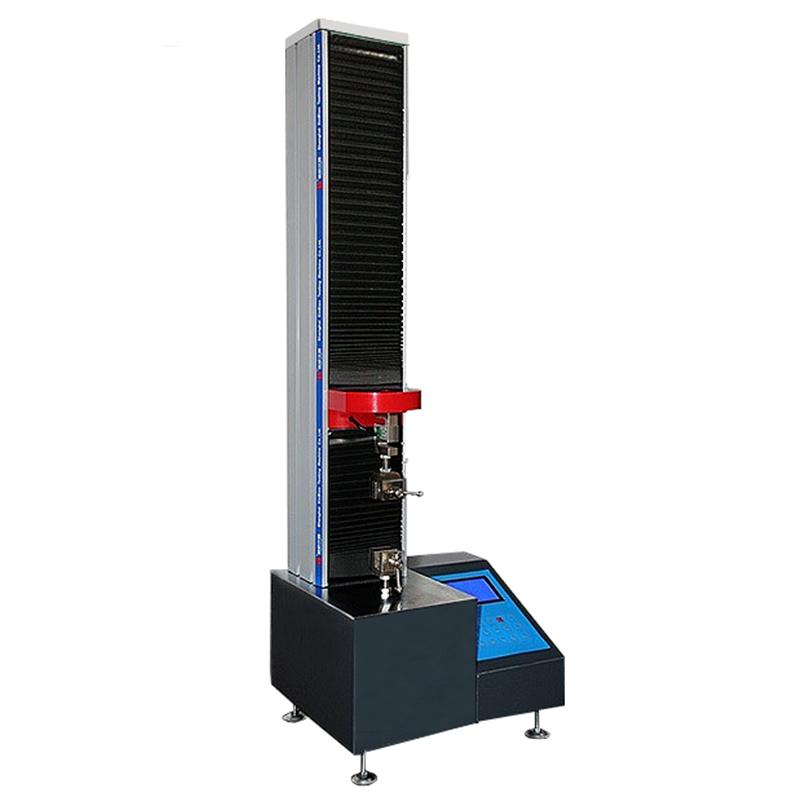

Taichang TC-DLJ01C Tensile Tester stroke 1000mm small display

SE
Touch LCD, using high-precision system, with digital display of test force, can realize the adjustment of the speed of the beam when the sample is clamped, the test force accuracy is better than +/- 1%, and the test stroke is 1000mm.
$1034.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT
Similar products

TaiChang Instrument TC-DLJ01C(1000mm) Tensile TesterSPEC

TaiChang Instrument TC-DLJ01C(1000mm) Tensile TesterDetails

TaiChang Instrument TC-DLJ01C(1000mm) Tensile TesterPacking list

SKU
NB042848
Maximum test force
500N (Miscellaneous range optional
range
0.0001N-500N force value optional
Test force Accuracy
Better than +/- 1%
Displacement resolution
0.01mm
Measuring Accuracy
Better than +/- 1%
test stroke
1000mm
Displacement speed control range
1mm/min～500mm/min
Displacement speed control Accuracy
Better than +/- 1%
Testing machine level
Level 1
Testing machine size
530*266*1810mm
Power supply
220V，50Hz
Weight
100kG
TC-DLJ01C(1000mm)
Tensile Tester
Touch LCD, using high-precision system, with digital display of test force, can realize the adjustment of the speed of the beam when the sample is clamped, the test force accuracy is better than +/- 1%, and the test stroke is 1000mm.
Taichang TC-DLJ01C Tensile Tester stroke 1000mm small display Picture

Applications

This series of Tensile Testing Machines is suitable for tensile and tensile strength tests of paper, film, rubber, plastic, woven bags, roll film and other materials. It can also be used for 180-degree peeling, 90-degree peeling, T-peeling, and adhesive peeling. Strength test, heat seal strength and other tests.

Features

  • It adopts high-precision, all-digital speed control system and precision reducer to drive the precision screw pair to carry out the test, so as to realize the wide-range adjustment of the test speed. The test process has low noise and stable operation.

  • Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface, which is convenient and quick.

  • It has the functions of digital display of test force, continuously adjustable test speed, automatic stop when the sample is broken, and peak value hold.

  • It can adjust the speed of the beam when clamping the sample, and has protection devices such as over-current, over-Voltage, and overload.

Standards

GB 8808, GB 13022, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB /T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792 , ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358, QB/T 1130

FAQ
QPlastic film tensile strength, which one should I choose?
A Recommended Taichang TC-DLJ01C Tensile machine, it is specially designed for film materials, equipped with level 1 accuracy Sensors and 1-500mm/min stepless speed regulation, can accurately capture the whole process of film stretching data, in line with GB/T 1040 and ASTM D882 film testing standards.
QWhat should be paid attention to in the tape disbonding experiment?
A This instrument supports three disbonding modes of 180 °/90 °/T type. The key is to choose the right fixture and speed - for example, 300mm/min is commonly used for pressure-sensitive tape. The device will automatically record the peak peel strength, and the LCD screen will directly display Linear dispersion to help you quickly determine whether the tape tack is up to standard.
QWhat special tests can 1000mm Travel perform?
A Ultra-long Travel is suitable for materials with high elongation such as woven bags and rubbertubing, such as testing the fracture elongation of the entire sealing strip. With the peak automatic shutdown function, even if the material is stretched to 800mm, it will not miss the fracture point and avoid manual monitoring errors.
QPlastic film tensile strength, which instrument should I choose?
A TC-DLJ01C Tensile machine is specially designed for soft Encasement materials such as Plastic film. It adopts high-precision digital speed control system and precision screw, which can accurately measure tensile strength and meet the film test standards such as GB/T 1040 and ASTM D882. The test results are reliable.
QIs this tension machine suitable for paper tensile strength testing?
A TC-DLJ01C is specially designed for paper testing, the force range is 0.0001N-500N to cover the paper testing needs, the effective stroke of 1000mm is enough for standard testing, and it meets the paper testing standards such as GB 453 and JIS P8113. Simple operation and high Test accuracy.
