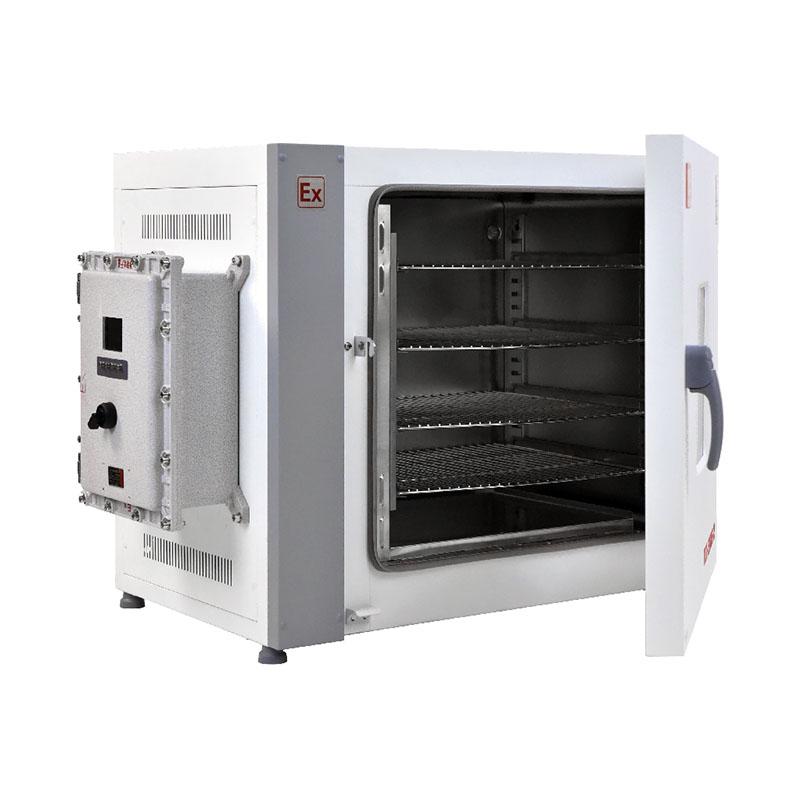

TAISITE TEX-230LG-30L Explosion-proof vertical Forced Air Drying Oven
TEX-230LG-30L
TaiSiTe TEX-230LG-30L Explosion-proof vertical Forced Air Drying OvenSPEC
TaiSiTe TEX-230LG-30L Explosion-proof vertical Forced Air Drying OvenDetails
TaiSiTe TEX-230LG-30L Explosion-proof vertical Forced Air Drying OvenPacking list
- SKU
- NB043024
- Explosion-proof level
- EX d e mb IIB T4 Gb
- Door opening method
- single door
- Temperature range
- RT+10~300℃
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1℃
- Temperature Uniformity
- ±2.5%
- fan
- Explosion-proof fan
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal Insulation
- aluminum silicate fiber
- Heating mode
- Explosion-proof stainless steel heating pipe (explosion-proof qualification)
- Input Power
- 3.0KW
- Exhaust Port
- Should 30mm, top
- control box
- Explosion-proof qualification box centralized explosion-proof design
- Temperature representation
- LCD display (flameproof button)
- Timer
- 0~9999Min (with Timer waiting)
- Operational Features
- Fixed value operation, regular operation, automatic stop
- Program Mode
- optional
- Temperature sensor
- 2 pt100 (explosion-proof qualification), 1 control and 1 prevention
- blower
- Explosion-proof special motor (with explosion-proof qualification)
- switch
- Explosion-proof switch (with explosion-proof qualification)
- external connection
- Adopt explosion-proof torsion pipe (explosion-proof qualification)
- Power cord
- Explosion-proof flexible connection, explosion-proof connection pin.
- Additional features
- Deviation correction, menu button lock, power failure compensation, power failure memory
- Safety Devices
- Over-rise protection, leakage current protection, Independent Overtemperature Protection protector (built in the explosion-proof control box, the maximum temperature limit).
- Safety Devices
- Over-temperature alarm
- Interior size
- 500*600*750mm
- Volume
- 230L
- Load per shelf
- 15kg
- Shelves (max)
- 2nd floor
- Power
- AC220/50-60Hz，18.2A
- Optional accessories
- Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature Controller, unlimited SMS alarm, U disk data storage.
Features
This product adopts composite explosion-proof technology such as explosion-proof and pouring sealing. The equipment and electrical appliances adopt overall explosion-proof technology, and the explosion-proof control box provides centralized protection to prevent the leakage of high temperature, static electricity, sparks and other unsafe factors.
The inner tank is made of stainless steel, which is clean and not easy to be contaminated.
The box adopts vertical design, made of cold-rolled steel plate, with durable surface coating.
Use explosion-proof 304 stainless steel heating tube for heating.
Explosion-proof fans, explosion-proof sensors, and explosion-proof structural design.
Color LCD controller, precise temperature control.
The outer door is equipped with tempered glass, making it easy to check the experimental status at any time.
Convenient operation, fixed value operation, scheduled operation, automatic stop.
Auxiliary menu to realize over-Voltage alarm, deviation correction and menu locking.
Explosion-proof heaters, explosion-proof electrical appliances, explosion-proof circuits, key component casting and packaging, and electrostatic isolation protection.
The heating parts are explosion-proof and anti-static.
Explosion-proof pouring and protective treatment of line connection parts.
Exposed connecting wires are all made of explosion-proof flexible connecting pipe sets to isolate static sparks and temperature leaks to ensure safety.
Safety protection: electric heater short-circuit protection, power supply interruption protection, over-temperature protection and alarm.
Over-heating alarm and menu lock.
Implementation standards: (This performance index can be measured when the external ambient temperature of the equipment is +5~+35℃)
Testing standards: Temperature measurement points can be placed separately for testing according to JJF1101-2003 "Temperature and Humidity Calibration Specifications for Environmental Test Equipment" or national industry standard JB/T5520-91 "Technical Conditions for Drying Ovens".
Explosion-proof standards:
GB3836.1-2020 "Explosive Ring Part 1: General Requirements for Equipment",
GB3836.2-2020 "Explosive atmospheres Part 2: Equipment protected by flameproof enclosure "d""
GB3836.3-2020 "Explosive atmospheres Part 3: Equipment protected by increased "e""
It is made into an explosion-proof structure in accordance with the regulations of GB3836.9-2020 "Explosion-proof electrical equipment for explosive environments, cast-type electrical equipment "m"".
