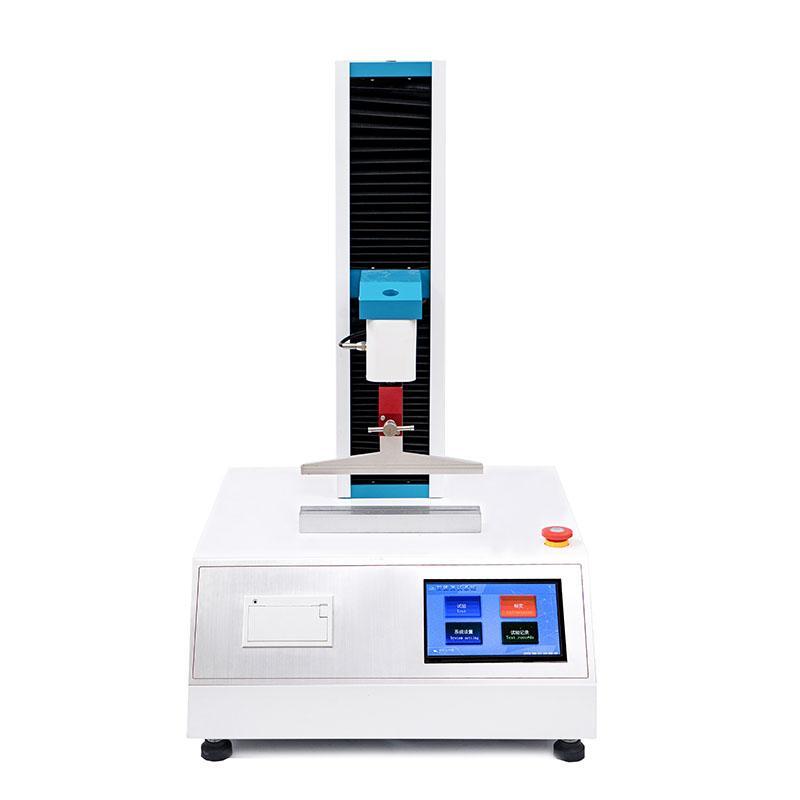

JINGWEN JW117C Tissue Softness Tester, Single Arm 10-5000mN
SE
JW117C
jingwen JW117C Softness TesterSPEC
jingwen JW117C Softness TesterDetails
jingwen JW117C Softness TesterPacking list
- SKU
- NB043029
- Model
- Single arm (touch screen display)
- Measurement range
- 10-5000mN
- Test speed
- 1.2±0.24mm/s
- Probe total stroke
- 12±0.5mm
- Accuracy level
- Level 1
- Slot-die width
- 5Mm; 6.35mm; 10mm; 20mm (width error should not exceed +/- 0.05mm)
- test force
- Minimum resolution 0.001N
- Displacement measurement
- Resolution is 0.01mm
- Probe indentation depth
- 8+0.5mm
- stepless speed regulation
- Digital DC Motor and Control system
- Test space adjustment mechanism
- Digital motor, synchronous belt drive
- Host size
- 540*280*1450mm
- Appearance
- In line with the national GB/T8942 standard
- Power supply
- 200V 50Hz
- Weight
- About 70Kg
Product Features
Speed control system: using motor and gear reducer, stable and reliable performance, with overcurrent, overVoltage, overload and other protection devices. The speed range can reach 1~ 1000mm/min.
Transmission mechanism: The transmission part adopts arc synchronous toothed belt, precision screw pair transmission, stable transmission, low noise and high transmission efficiency.
Operating system: touch key operation mode, real-time display of liquid crystal display, full Chinese operation, overcomes the problem that old-fashioned digital tube display is prone to failure, and is beautiful, convenient and fast.
Automatic display: During the whole test process, the liquid crystal displays the test force, displacement, peak value, running state, running speed, etc. in real time.
Automatic control: After the test parameters are input, the test process can be automatically completed.
Sample judgment: After the sample is completed, the moving beam automatically stops moving.
Special attachments: with softness test attachments
Display function: The maximum force during the test can be automatically displayed and remembered at the end of the test.
Application
Paper, wipes, insulating materials, mica tape, polyester film, plastic film, composite materials, release paper, metal foil, diaphragm, backplane material and other products.
Meet the standard
Comply with the relevant provisions of GB/T8942 "Determination of Paper Softness".
