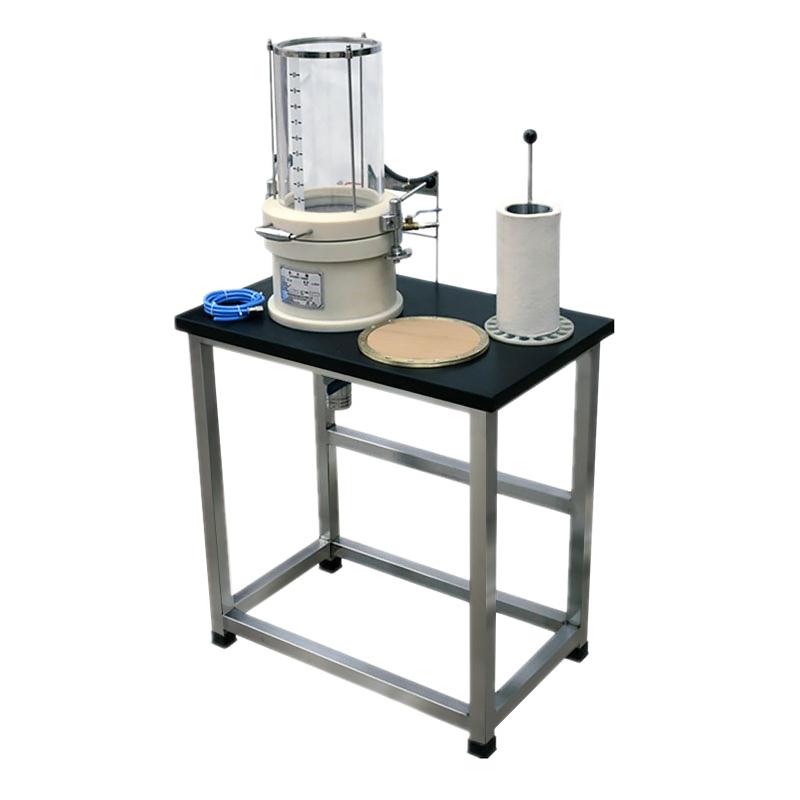

JINGWEN JWJ01-1S Pulp manual sheet reader, diameter Φ200mm

JWJ01-1S

Manual copy

The diameter of the copying cylinder is 200mm, the capacity of the copying cylinder is 8 liters, and the diameter of the papermaking is Φ200mm, which conforms to the QB/T3703 standard.

Introduction

JWJ01-1s Manual Tablet Reader is an experimental equipment for copying pulp into a type. In the laboratory, after various fibers such as plants and minerals are boiled, beaten, and sifted, the pulp is thawed to a standard, and then put into the tablet-copying cylinder. After stirring, it is quickly drawn and formed to form a circular sheet with a diameter of 200mm. The sheet can be used as a paper sample for further physical testing.

Product use

Special equipment for making pulp into Φ200 pattern.

Product Features

The national standard is adopted, the papermaking diameter is Φ200, the manual pulp plate is pulped, and the vacuum papermaking function can be attached.

Technical standard

QB/T3703-1999 (Preparation of pulp laboratory sheets + conventional sheet former method), ISO 5269/2 & ISO 5269/3,5269/2, NBR 14380/99, TAPPI T-205, DIN 54358, ZM V/8/76

Equipment composition

Copper mesh trailer, papermaking drum, copper mesh sheet clip (equipped with one for 60 mesh or 80 mesh, and can also be prepared according to user needs), one set of pulp plates.

Packing list：Complete machine X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
