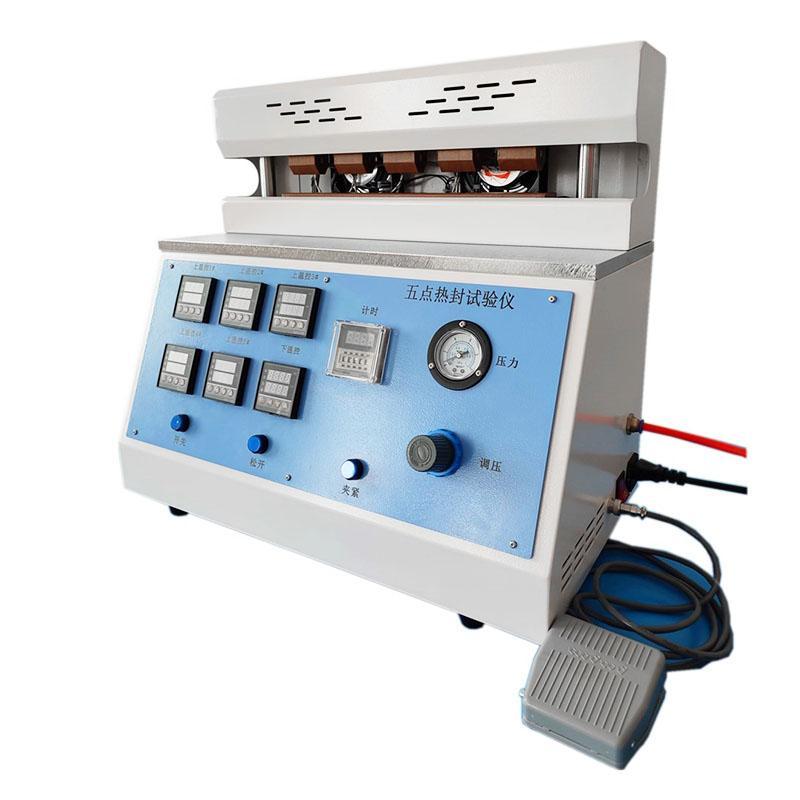

JINGWEN JW-RF330SW Heat sealing Tester

JW-RF330SW

Five-point heat sealing instrument

Room temperature~ 260 ℃, heat sealing pressure 0~ 0.7Mpa, control system digitalization display, fully automated equipment, high temperature control accuracy, anti-scalding design and leakage protection design, double cylinder design.

Introduction

The JW-RF330SW five-point heat-sealing Tester adopts the hot-pressing sealing method to determine the heat-sealing temperature, heat-sealing time, heat-sealing pressure and other parameters of plastic film substrates, flexible packaging composite films, coated paper and other heat-sealing composite films. Heat-sealing materials with different melting points, thermal stability, fluidity and thickness will show different heat-sealing properties, and their sealing process parameters may vary greatly. Heat-sealing Tester, through its standardized design and standardized operation, can obtain heat-sealing test indicators.

Operating Principle

The thermal reaction Tester adopts the hot pressing detection method, placing the heat-sensitive material between the upper and lower heating blocks, and then the upper and lower heating blocks are closed to heat the heat-sensitive material. The heating time, the temperature of the heating block, and the closing pressure of the heating block can be adjusted, which can be quickly evaluated for different test samples. The instrument is controlled by a fixed program and is simple to use. It can be detected for different heat-sensitive materials, and it can also be used for a certain heat-sensitive material. It is approved as a suitable thermal parameter to provide users with accurate thermal indicators.

Product Features

Digital display of control system, fully automated equipment

Six independent digital PID temperature control system, high temperature control accuracy

Combined temperature, layer settings, test efficiency increased by five times

Selected heat sealing knife materials, heat sealing surface temperature is uniform

The cylinder is placed away from the heating element to avoid heat conduction and ensure the normal working temperature of the pneumatic parts

Pneumatic control components have high precision, and the full set adopts internationally renowned brands

Anti-scalding design and leakage protection design, safer operation

The heating element is carefully designed, the heat dissipation is uniform, and the service life is long

Simple mechanical operation design, friendly human-machine interaction

Double cylinder design, uniform pressure on both ends

According to standard

QB/T 2358, ASTM F2029, YBB 00122003

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
