TBJ-XF1-DJ1 flat slot die coater with barrel insulation

SE
Bar + Drawdown blade + Heating + Vacuum chuck + Drawdown blade heating + barrel insulation, using slot-die extrusion feeding method Spreader, support production Film Applicator customization, effective Spreader size 300 * 400mm.
$8621.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con CAT OI
Similar products

zy TBJ-XF1-DJ1 Automatic Film ApplicatorSPEC

zy TBJ-XF1-DJ1 Automatic Film ApplicatorDetails

zy TBJ-XF1-DJ1 Automatic Film ApplicatorPacking list

SKU
NB043074
Drawdown blade Accuracy
±0.003mm
Application thickness range
0~10mm drawdown blade can be lifted and lowered
Application rate
5~ 180mm/s (< 5mm/s can be customized)
Coating size
300*400mm
Vacuum Area
300*400mm
Vacuum aperture
F1.2mm
Vacuum hole spacing
20*20mm
Drawdown blade
length
Coating rod specification
1 imported wire rod with Accuracy up to 1μm, effective Application width 300mm
Host Power
220V 50HZ
Dimensions
630*410*520mm
Weight
Net Weight 65KG
Speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Heating temperature range
RT+~180°C
Temperature Uniformity
±3℃
Power
1500W
Vacuum pump size
380*180*280mm
Feeding Capacity
Stainless steel syringe (Max: 100ml)
Feeding speed
0.05-20mm/s (barrel piston speed)
Wire rod, drawdown blade material
stainless steel
Dosing drum Volume
1L
Heating and insulation components
Application Countertop heating, barrel heating, knife head heating
TBJ-XF1-DJ1
Automatic Film Applicator
Bar + Drawdown blade + Heating + Vacuum chuck + Drawdown blade heating + barrel insulation, using slot-die extrusion feeding method Spreader, support production Film Applicator customization, effective Spreader size 300 * 400mm.

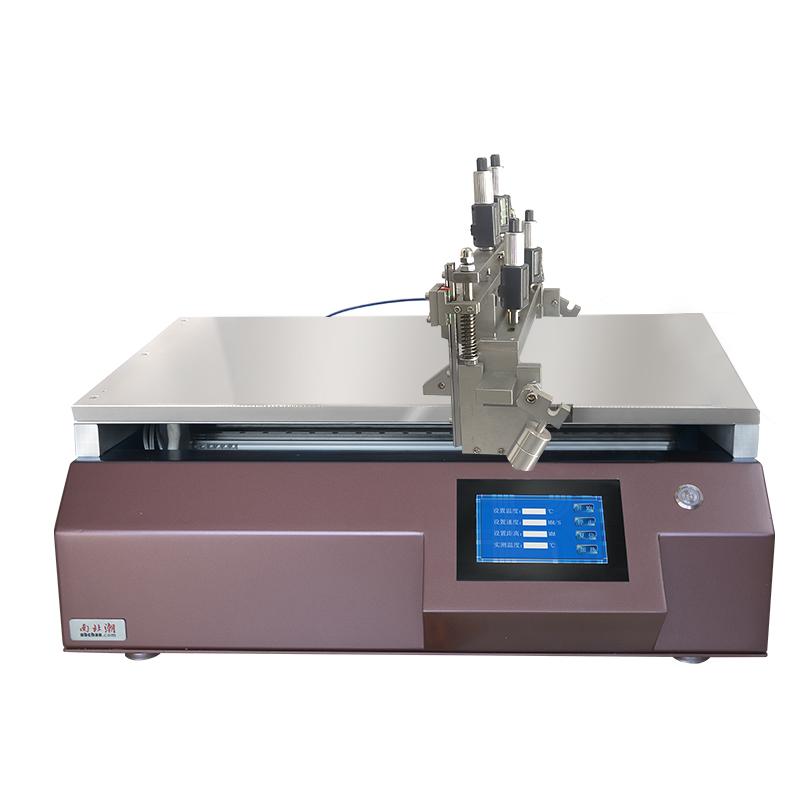

TBJ-XF1-DJ1 flat slot die coater with barrel insulation Picture

product description

Automatic feeding coating machine, coating platform, automatic feeding system and control system, adopts slit extrusion feeding method for coating, including adjustable thickness scraper, wire rod and other coating processes, optional four-sided preparation . It is mainly used in laboratory research and development, can work in a glove box, and also supports customization of production-type coating machines. The equipment is suitable for experiments on lithium batteries, glue, silicone oil, UV, ink, polymer materials, photoresist, cataplasm, hot melt adhesive, gel, plaster crystals, ceramics, slurry, medicine and other industries coating film. It can be coated on substrates such as film, paper, copper foil, aluminum foil, non-woven fabric, vinyl film, PVC, PET, cloth, aluminum alloy metal, plastic film, and metal film.


TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 1



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 2



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 3



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 4



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 5



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 6

TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 7



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 8



TBJ-XF1-DJ1 flat slot die coater with barrel insulation Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QIs there a crevice coater? The viscosity of the membrane is relatively high, To punch the material between the two steel plates, temperature control is required, and the thickness needs to be precisely controlled
A Can use flat slot die coater, can control temperature, control thickness
