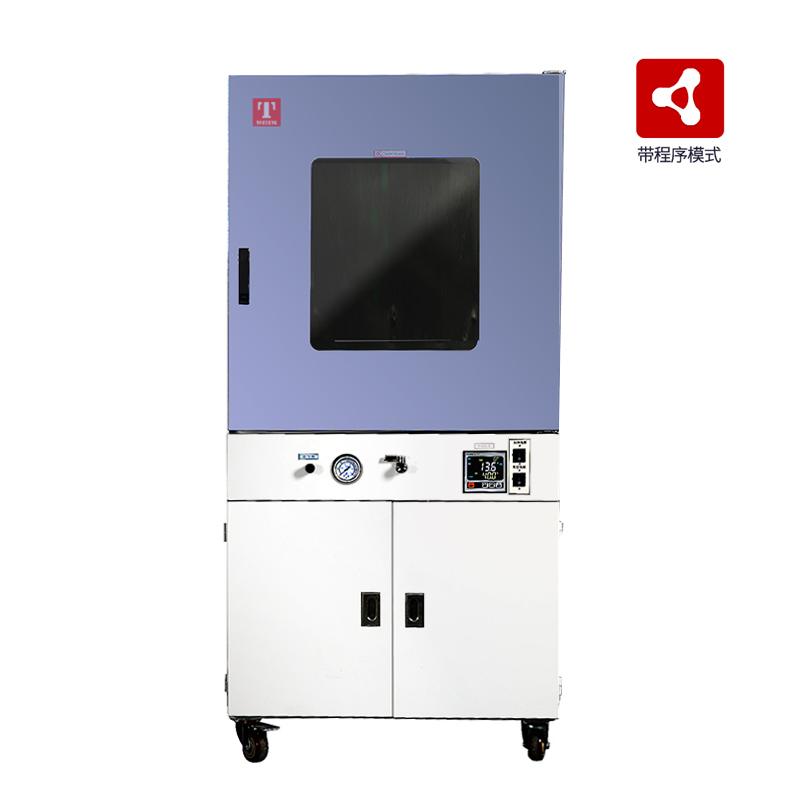

TAISITE TDZZ-L2215L Automatic electric heating Vacuum Oven program control type 250 ℃/215L
TDZZ-L2215L (with program mode)
TaiSiTe TDZZ-L2215L (with program mode) Vertical Electric Vacuum OvenSPEC
TaiSiTe TDZZ-L2215L (with program mode) Vertical Electric Vacuum OvenDetails
TaiSiTe TDZZ-L2215L (with program mode) Vertical Electric Vacuum OvenPacking list
- SKU
- NB043129
- Heating mode
- Sheathed heating
- Temperature range
- RT+10~250°C
- Use vacuum range
- 100p～101Kpa
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1℃
- Chamber material
- Good 304 stainless steel
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal insulation material
- aluminum silicate fiber
- Heating mode
- Heating tube
- Viewing Window
- Bulletproof Tempered Glass
- Vacuum meter
- digital display
- Rated power
- 3.6kw
- thermostat
- Color liquid crystal PID operation
- Timer
- 0~9999Min (with Timer waiting)
- Run function
- Fixed value operation, Timer operation, automatic stop, power-off memory, Sensors deviation correction, self-tuning, internal parameter locking
- Program Mode
- Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable
- Temperature sensor
- pt100
- Interior size
- 560*600*640mm
- Dimensions
- 720x840x1650mm
- Volume
- 215 L
- Load per shelf
- 15kg
- Shelf (std.)
- 4pcs
- Vacuum interface
- Quick connect KF25 interface (stainless steel bellows)
- vacuum pump
- Standard
- Power
- AC380/50Hz 6.0 A
- Safety Devices
- Over-temperature alarm, overcurrent and overload protection, fast fuse, grounding protection
- Vacuum Meter
- 5-Segment 5-cycle programming, automatic control and hold
Applications
This product is used in electronics, aerospace, military weapons, automobiles and ships, petrochemical industry, agriculture and forestry environmental protection, commodity inspection, disease control, biochemistry, environmental protection and other research and application fields. It is especially suitable for scientific research, universities and enterprises to do rapid drying of heat-sensitive, easy to decompose, easy to oxidize, complex composition and other substances, and can also be used for accelerated drying of powders and other substances.
Features
1. The microcomputer integrates intelligent temperature control system, PID logic operation function, and the temperature control is accurate and reliable.
2. Color LCD screen display, running temperature and set temperature.
3. Emergency parameters are automatically saved, and have the function of call recovery, and also have the functions of sensor self-diagnosis, over-temperature and fault alarm.
4. The sealing ring adopts a one-time molding silicone sealing ring, which is resistant to high temperature, anti-aging, and has better sealing effect.
5. Large observation window, the outer layer is made of acrylic plate with 96% light transmittance, and the inner layer is made of high-strength tempered glass.
6. Emergency parameters are automatically saved, and have the function of call recovery, and also have the functions of sensor self-test, overtemperature and fault alarm.
7. ★ Vertical integrated structure, standard hidden Vacuum Pump.
★ 8. Automatic control and maintenance of vacuum degree, digital display vacuum degree, the minimum vacuum value is 10Pa, and the ultimate vacuum degree can reach 50Pa. The vacuum level can be programmed and controlled in 5 stages and 5 cycles.
9. High-precision resistance vacuum sensor, real-time measurement of vacuum degree.
10. The vacuum connection adopts KF25 fast interface, corrugated stainless steel vacuum connection tube, which is fast, pressure holding and safe sealing.
11. Equipped with mobile casters, the transfer is fast.
Options
1. Independent temperature limiting controller
2.485 communication port
3. USB fast storage port
4. Printer
5. Inert gas inflator valve
6. Inert gas control system
7. Tired timer
