China TBJ-B4-DJ7 Automatic Film Applicator with automatic feeding system

SE
Bar + Drawdown blade + heating + automatic feeding system, using pneumatic feeding system, effective coating area 600mm * 800mm, standard 3L volume barrel.
$12507.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO
Similar products

zy TBJ-B4-DJ7 Automatic Film ApplicatorSPEC

zy TBJ-B4-DJ7 Automatic Film ApplicatorDetails

zy TBJ-B4-DJ7 Automatic Film ApplicatorPacking list

SKU
NB043331
Accuracy
±0.003mm
Application thickness range
0~10Mm drawdown blade can be lifted and lowered
Application rate
5~ 180Mm/s (< 5mm/s can be customized)
Application speed
Digital display, different speeds
Coating rod specification
Accuracy 0.001mm (Application thickness is determined according to the bar model)
Host Power
Voltage 220V 50HZ
Dimensions
1000Mm * 850mm * 1000mm (non-standard customization, subject to actual order)
Speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Accuracy
0.001mm
Customizable functions
Automatic Inking System
Customizable functions
Jet system device, UV solid device
Feeding principle
Air source pressure flows out
Feeding motion mode
Reciprocating linear motion
Feeding traverse speed
2-150mm/s
spit Volume
Adjustable (by adjusting the air pressure and the running speed of the discharge port)
Shaft drive mode
Timer belt
Feeding system air source
0.6Mpa, can be connected to the trachea of φ8 (self-matching)
Power Voltage of charging system
220V,50Hz
Tank pressure
Maximum withstand 8Mpa
Material of feeding barrel
304 stainless steel with wall thickness of 4mm
Feeding barrel configuration
Safety valve, pressure regulating valve, pressure gauge, air discharge valve
Optional
Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Application), film width control baffle
Speed regulation Accuracy
1mm/s
Heating temperature range
RT+~180℃
Temperature Accuracy
Temperature +/- 3 ℃
Dosing drum Volume
3L
TBJ-B4-DJ7
Automatic Film Applicator
Bar + Drawdown blade + heating + automatic feeding system, using pneumatic feeding system, effective coating area 600mm * 800mm, standard 3L volume barrel.

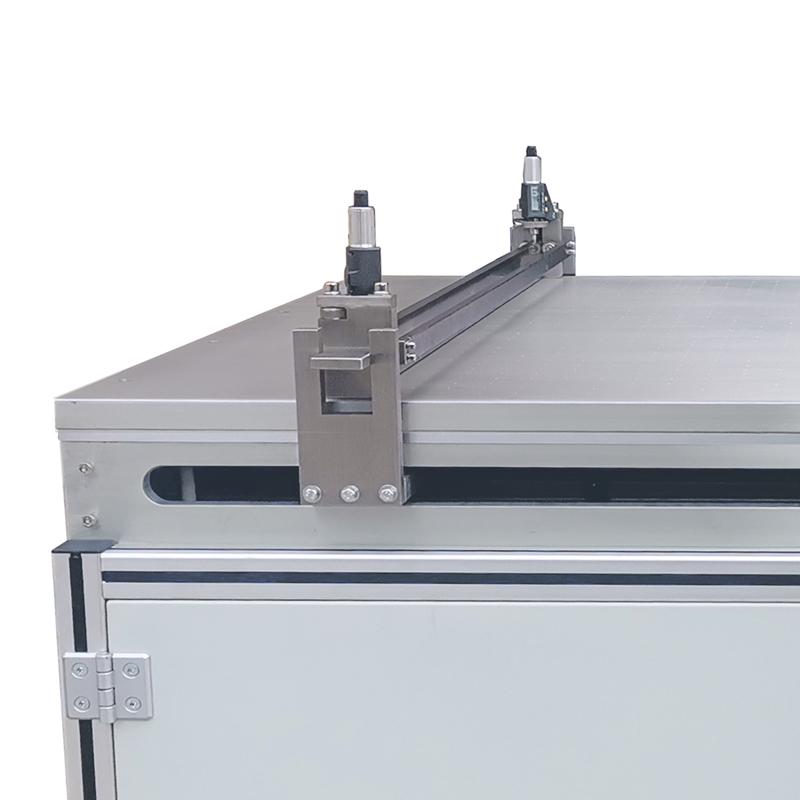

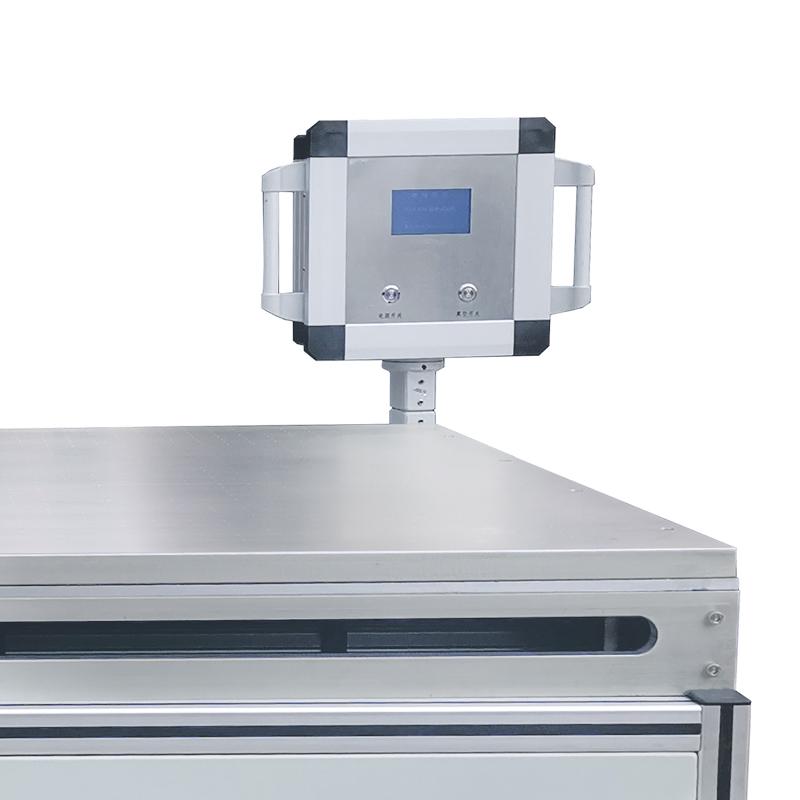

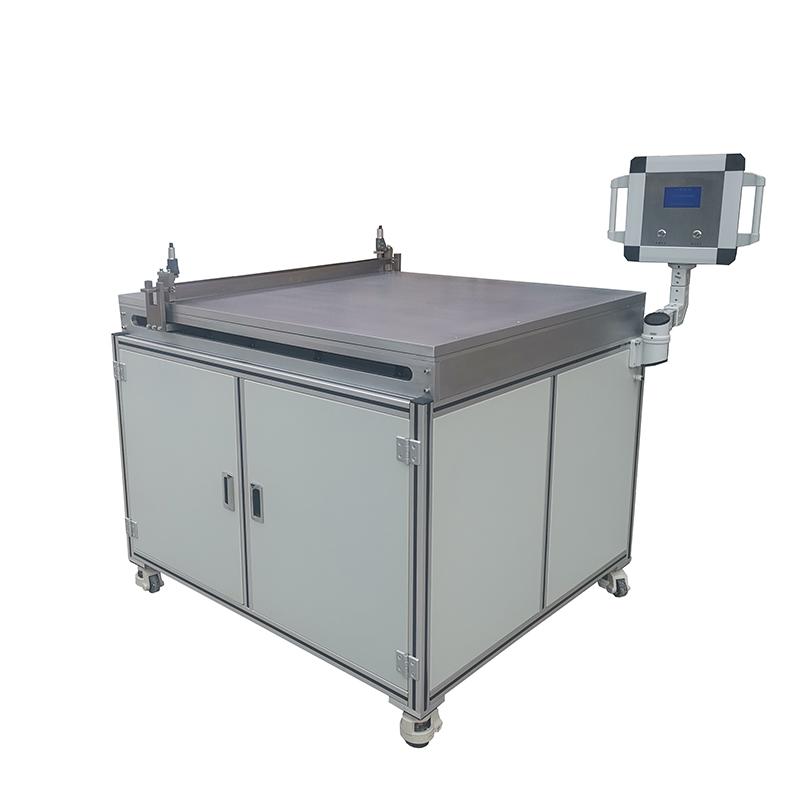

China TBJ-B4-DJ7 Automatic Film Applicator with automatic feeding system Picture

TBJ-B4-DJ7 Floor Type Automatic Film Applicator with automatic feeding system, is a metering rod & drawdown blade heating Film Applicator, effective Spreader area 600mm * 800mm, standard 3L volumetric barrel, heating temperature up to 180 ℃. Commonly used in laboratory film, suitable for Moulding in Coating, inks, polymer materials, films, glues, Pressure sensitive adhesives and other industries.
