CHINA BLD-608B Automatic Burst Strength Testing Machine

SE
Digital display button operation, sample holding force > 690kPa, displacement (0.02~ 0.3) m3/min, suitable for paper, corrugated paper, paper, Encasement, etc.
$949.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

Factory BLD-608B Automatic bursting Strength TesterSPEC

Factory BLD-608B Automatic bursting Strength TesterDetails

Factory BLD-608B Automatic bursting Strength TesterPacking list

SKU
NB043403
Sample holding force
> 690kPa (adjustable)
Test system sealing
1Min pressure drop < 10% Pmax
Resolution
0.1kPa;
Displacement
(0.02~0.3)m3/min
rated pressure
( 0.6~0.7)
test unit
Pa、kPa、kgf、LB
Weight
Approx. 50kg
Clamp ring diameter
Upper ring: Should be 31.50mm; Lower ring: Should be 31.50mm
Volume
44cm×42cm×56cm
Power Supply
AC220V±10% , 50Hz 120W
Measurement range
250~~6000KPa
Air pressure source
Min. 6kg/cm ² (customer's own)
Oil delivery speed
170±15ml/min
Print test value
MIN Minimum, MAX Maximum, Average, Time
gas source
Air compressor (customer-provided)
Hydraulic oil
Glycerin 85%, distillation water 15%
BLD-608B
Automatic bursting Strength Tester
Digital display button operation, sample holding force > 690kPa, displacement (0.02~ 0.3) m3/min, suitable for paper, corrugated paper, paper, Encasement, etc.

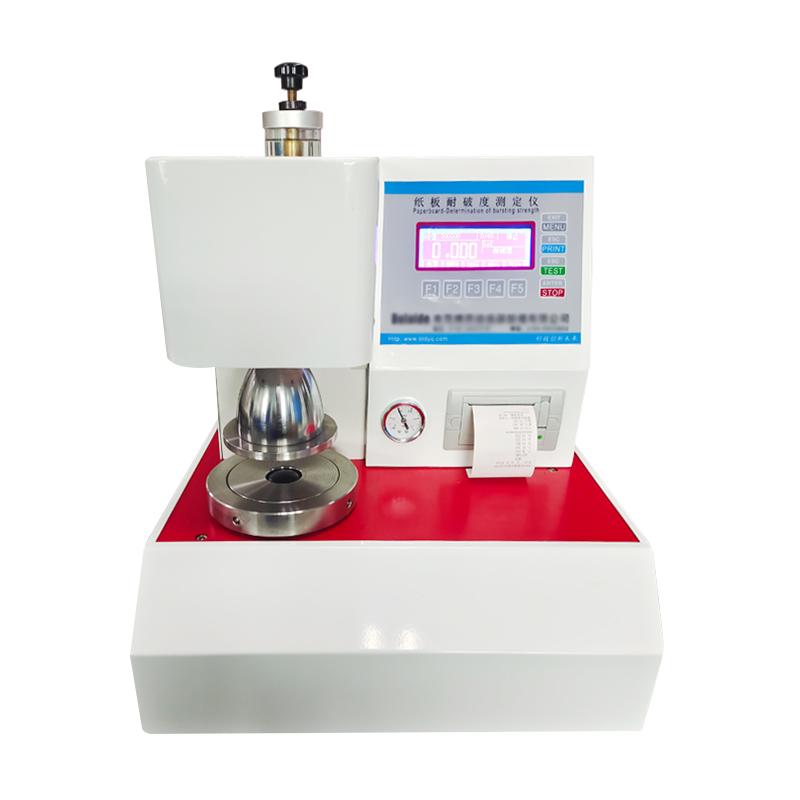

CHINA BLD-608B Automatic Burst Strength Testing Machine Picture

Introduction

This product tests the burst strength value of carton board and uses digital display of pressure. When the sample is damaged, the maximum burst strength value is automatically retained and the test results can be printed as a trend. The indication mode of the bursting Strength Tester is digital, and the capacity is 0-100kg/cm2. Bursting Strength Testers are widely used on packaging materials, including general paper, corrugated paper, toilet paper, packaging, paper, etc., as well as leather, cloth, and packaging films, and can effectively monitor product quality.

Standards compliant

ASTM D2210, TAPPI TT403, JISL1096/L1018/P8112/P8131 ISO-2759, GB-6545
