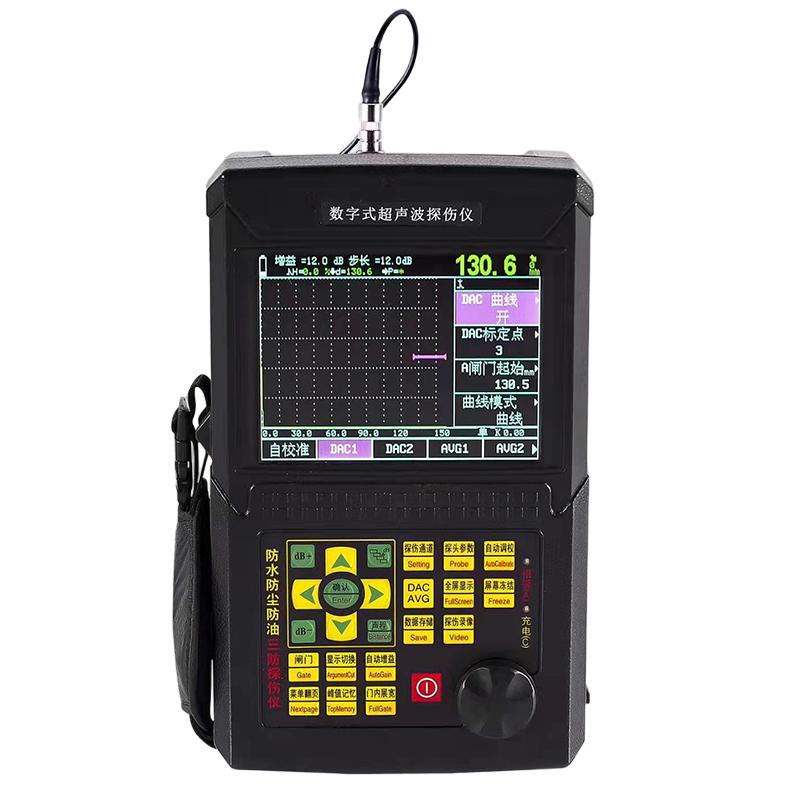

LEEB leeb520 Ultrasonic Flaw Detector, industrial Ultrasonic Flaw Detector

leeb520

Ultrasonic Flaw Detector

Lithium battery power supply for 8 hours, solid waterproof and dustproof design, large screen highlight display to adapt to various environments, 100 flaw detection channels support a variety of industry standards.

Overview

Ultrasonic flaw Detector is a portable industrial non-destructive flaw Detector. It can detect, locate, evaluate and diagnose various defects (cracks, porosity, pores, inclusions, etc.) inside workpieces in a portable, non-destructive and accurate manner. It can be used in both laboratories and engineering sites. It is used in boilers, pressure vessels, aerospace, electric power, petroleum, chemical industry, offshore oil, pipelines, shipbuilding, automobile, machinery manufacturing, metallurgy, metal processing, steel structure, railway transportation, nuclear power, colleges and universities and other industries.

Product Features

• Lithium battery power supply, working time 8 hours;

• Sturdy and durable, waterproof and dustproof, good anti-interference ability;

• The large screen is highlighted, which can be suitable for the requirements of flaw detection in the sun and culverts;

• It has the functions of waterproof, oil-proof and dustproof, and the service life is extended, which is several times that of conventional flaw Detectors.

Main function

• DAC and AVG curves are automatically generated using standard test blocks, and the sampling points are not limited, and can be compensated and corrected

• Automatic display of echo-related parameters (depth D, level P, distance S, amplitude H)

• Freely switch between three scales (depth D, level P, distance S)

• 100 flaw detection channels, which can freely input and store flaw detection standards of any industry (expandable);

• Can store 300 A-shaped graphics and parameters (can be expanded according to user request);

• Automatic calculation of defect equivalent φ value, peak memory function;

• Two detection methods: peak and edge;

• Three probe methods: single crystal, double crystal, penetration;

• Automatic matching damping, intelligent operation fast flaw detection, automatic alarm of gate;

• Custom flaw detection process can be generated according to the actual workpiece, and there is no need to carry test blocks for on-site flaw detection.

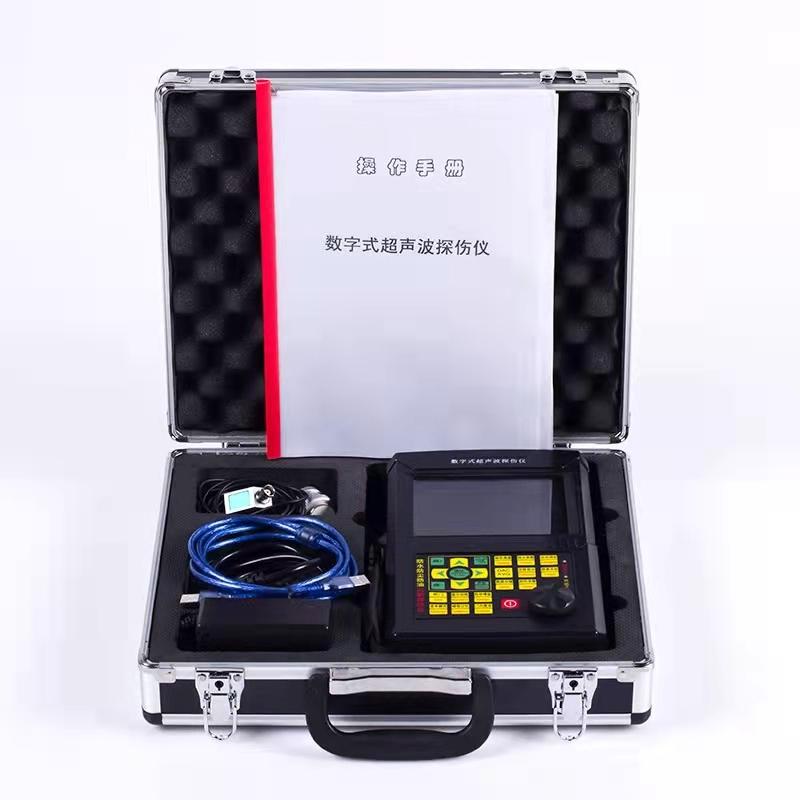

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
